Graco Pro Xp H60T10 - Page 52

Repair
Air Air
Air
Swivel Swivel
Swivel
and and
and
Exhaust Exhaust
Exhaust
Valve Valve
Valve
Replacement Replacement
Replacement
1.Followthestepsin
PreparetheGunforService,page39.
2.Toreplacetheairexhaustvalve:
a.Removetheclamp(36)andtheexhausttube
(35).
b.Unscrewtheswivel(21)fromthegunhandle
(16).Theswivelisaleft-handthread.
Removethebracket(7).
c.Pulltheexhaustvalve(8)fromthehandle
(16).Inspecttheo-ring(8a)andreplaceif
necessary.
d.Installtheo-ring(8a*)ontheexhaustvalve
(8).Lubricatetheo-ringwithalightcoating
ofnon-siliconegrease.
e.Installtheexhaustvalve(8)inthehandle
(16).
f.Applythreadsealanttothetopthreadsof
theswivel(21).Positionthebracket(7)and
screwtheswivelintothegunhandle(16).
Torqueto75–85in-lb(8.4–9.6N•m).
g.Installthetube(35)andclamp(36).
3.Toreplacetheairinletswivel:
a.Unscrewtheswivel(21)fromthegunhandle
(16).Theswivelisaleft-handthread.
b.Applythreadsealanttothetopthreadsofthe
swivel.Screwtheswivelintothegunhandle.
Torqueto75–85in-lb(8.4–9.6N•m).

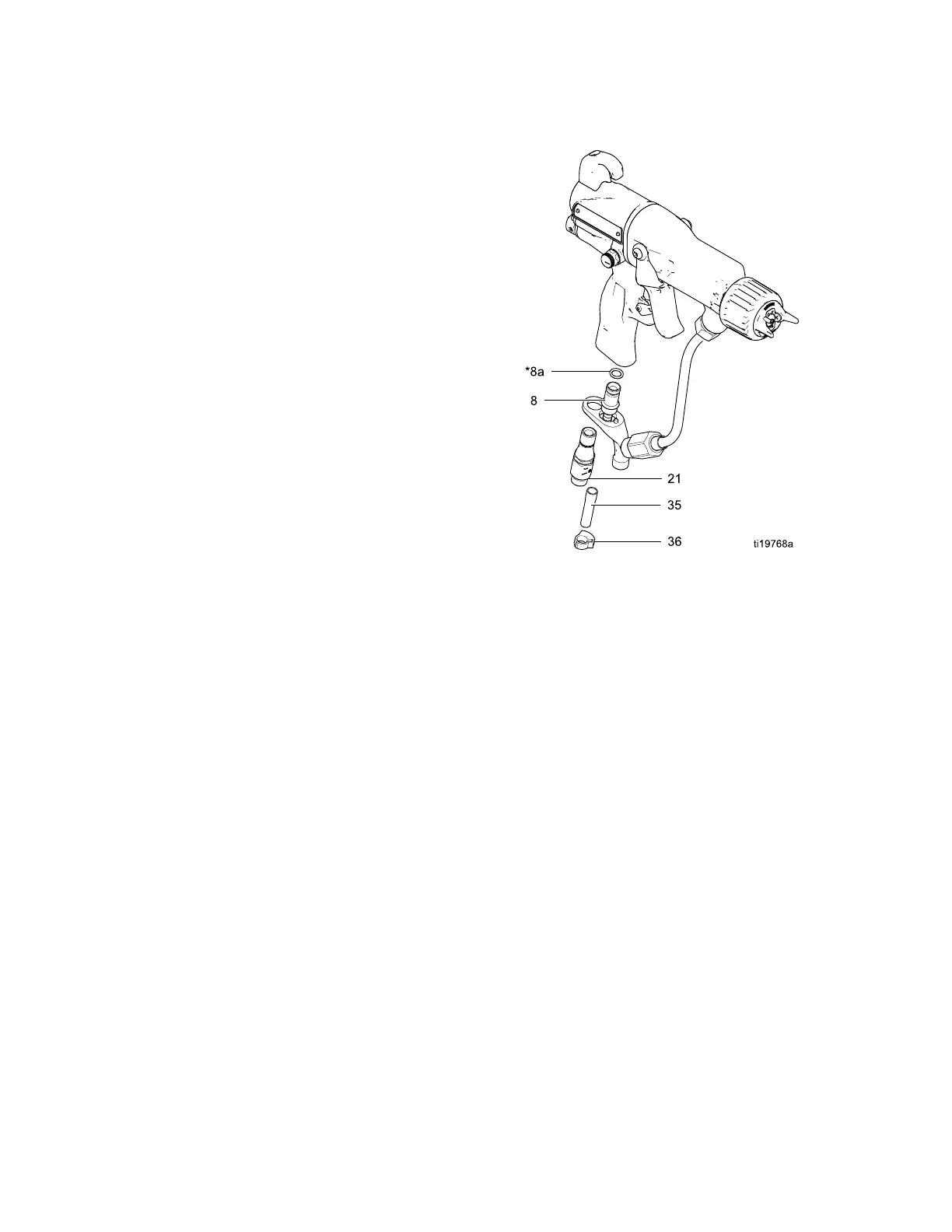

Figure44AirInletFittingandAirExhaustValve
