Gram BioCompact II - Refrigeration System Diagram; BioCompact II Piping Diagram

Inspection / important
Dimension marked with
Gram Commercial
(CVR-nr. 41423986)
Aage Grams Vej 1
6500 Vojens
Date
Sign. Sheetsize
Drawing no.
X.XX
Description.
Revision
Generel tolerance:
ISO 2768-m : ISO 286-2
Sheet no.
Rev.
All rights to this drawing belongs to Gram Commercial A/S, cf. law of Copyright. Thus the drawing should notwithout our written
permission be copied, presented or passed over to a third person. Misuse will lead to prosecution.
86
b i o l ine

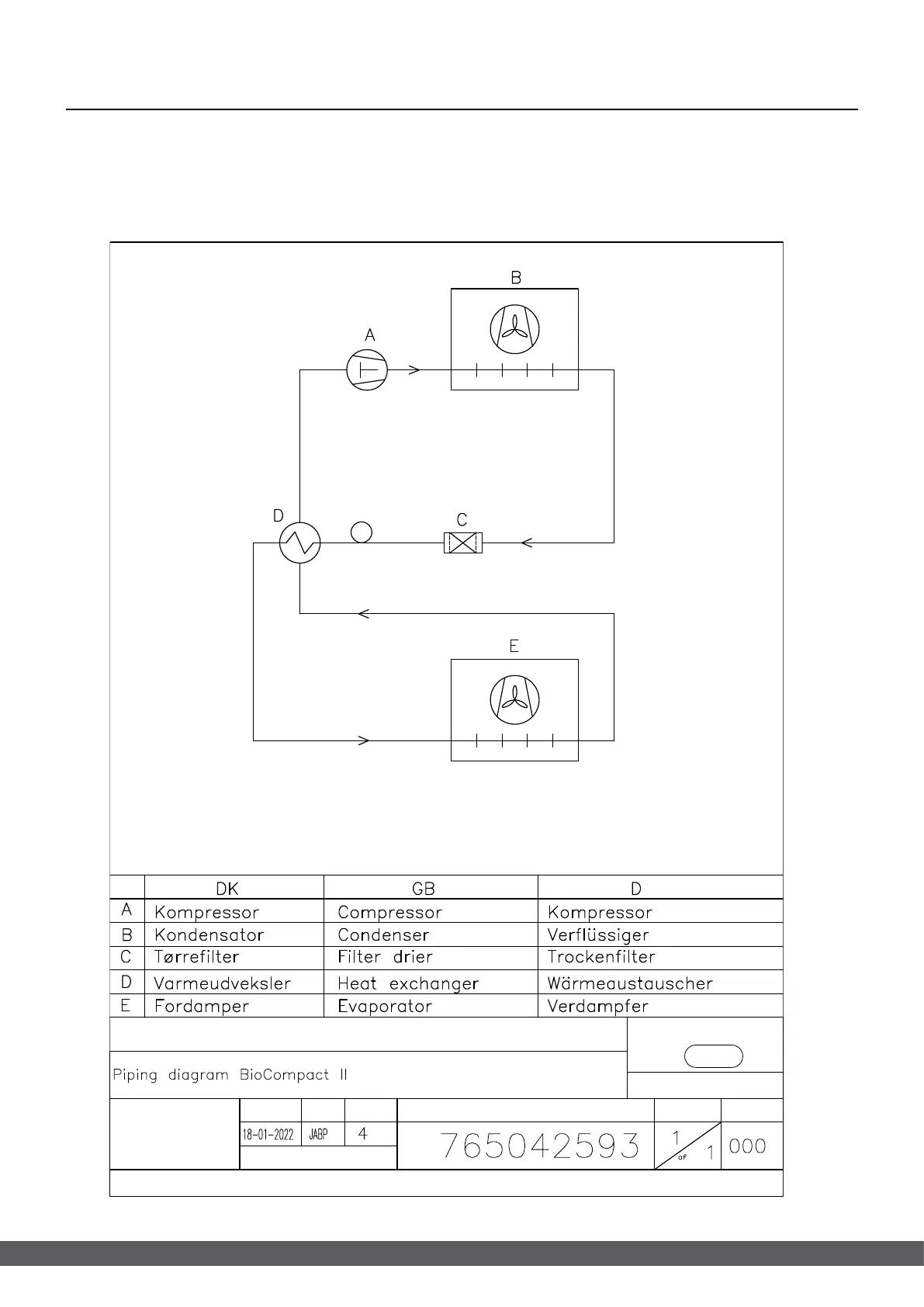

Piping diagram
