5.4 Hardware Setting
5.4.1 Side Guide Setting

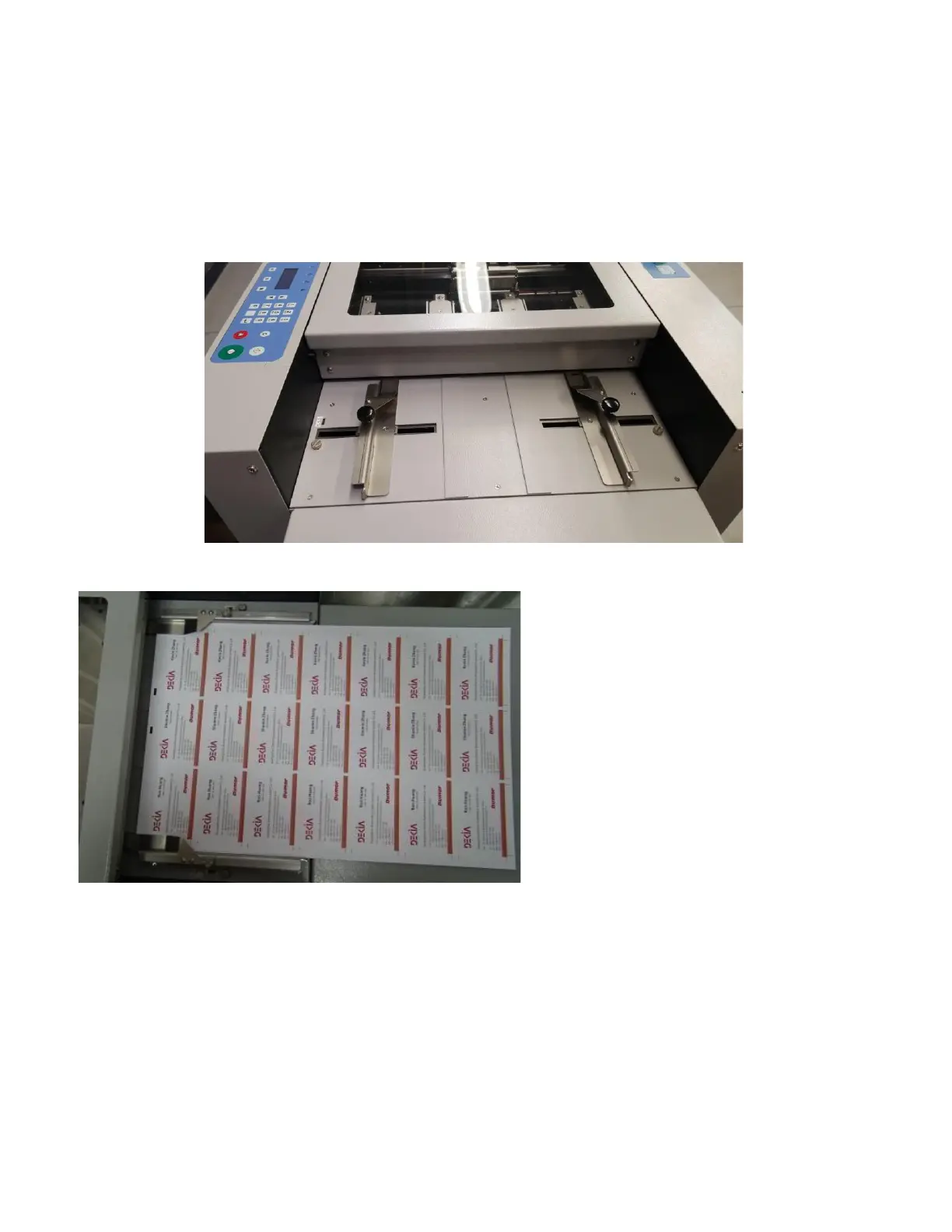

Infeed Table
The minimum infeed paper width is limited to 6.5” (165mm). The maximum width is 13” (330mm).
Insert the paper by loosening the thumb screws
(shown in the above image) on the side guides
and slide the rails out.
Place 3-5 sheets on the table and snug the rails
tight against the paper. The guides should be
tight enough to prevent side shift but not so
tight the paper will not feed.
5.4.2 Positioning Slitters
The positioning of the slitters is shown in the following picture. The shaft on which the slitters are mounted have
lock positions. These lock positions have markings on the positioning shaft. Slide the slitter assemblies until they
‘click’ into the required lock position (3.5” or 5.5”). Position the collars against the slitters and tighten the set screws
to lock the slitters in place.
