5.9 Slitter Blade Removal Procedure
1. Complete the steps listed above, stopping at step 6.
2. Remove the op and non-op side covers.

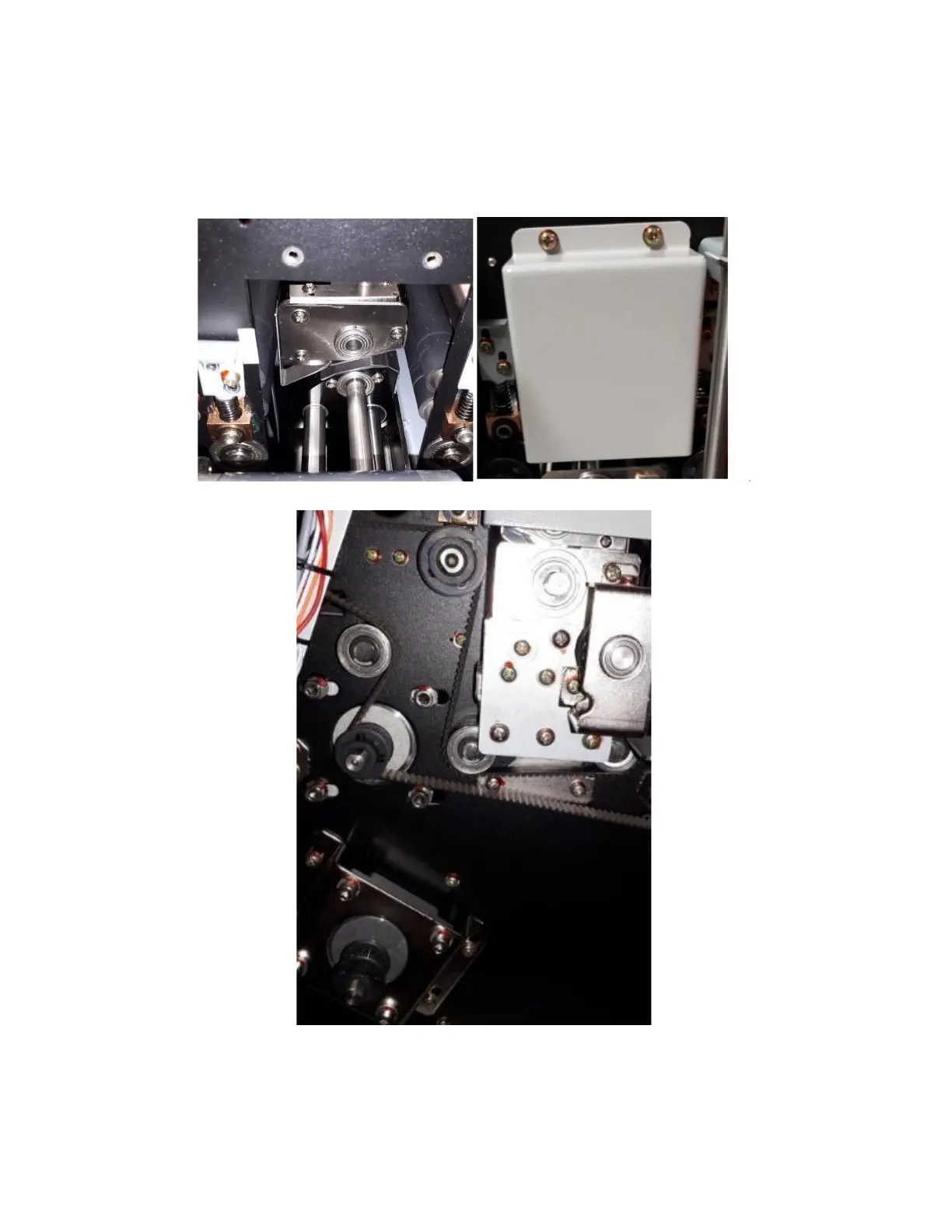

3. Locate and remove the slitter side cover from the op and non-op side.
4. Remove the slitter drive belt. You can remove the gear as well, but it’s not necessary.
5. Remove the brackets securing the slitter drive assembly to the chassis.
