5.5.2 Side Trimming

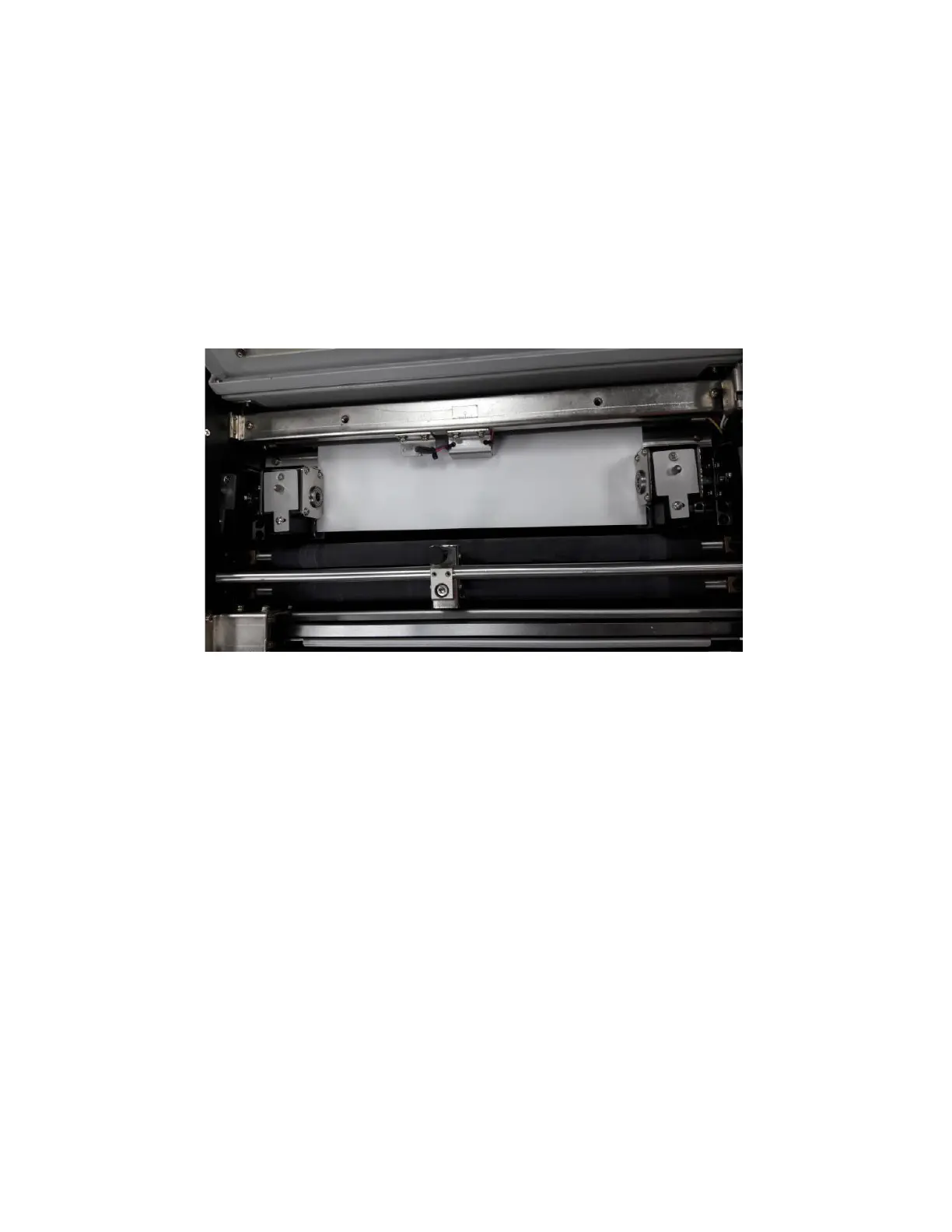

Move the Slitters #1 and #4 all the way to the side. Slitter #2 and Slitter #3 will be used to trim the sides. Since they
are a fixed gutter slitter, the amount of trim that can be done has the same limitations. Trying to trim less than
3.2mm (0.126”) will be too thin and the waste will not go into the bin and can get stuck in the slitter head.
Trimming 3.2mm (0.126”)-10mm (0.375”) is OK as the waste is thick enough and will go into the waste bin.
Trimming from 10mm-15mm will cause a similar issue. The paper under the 10mm position will go into the waste
bin but the paper outside the second slit (10mm-15mm position) can get stuck in the slitter head but everything
past the 10mm position will come out the exit rather than going to the waste bin.
