26

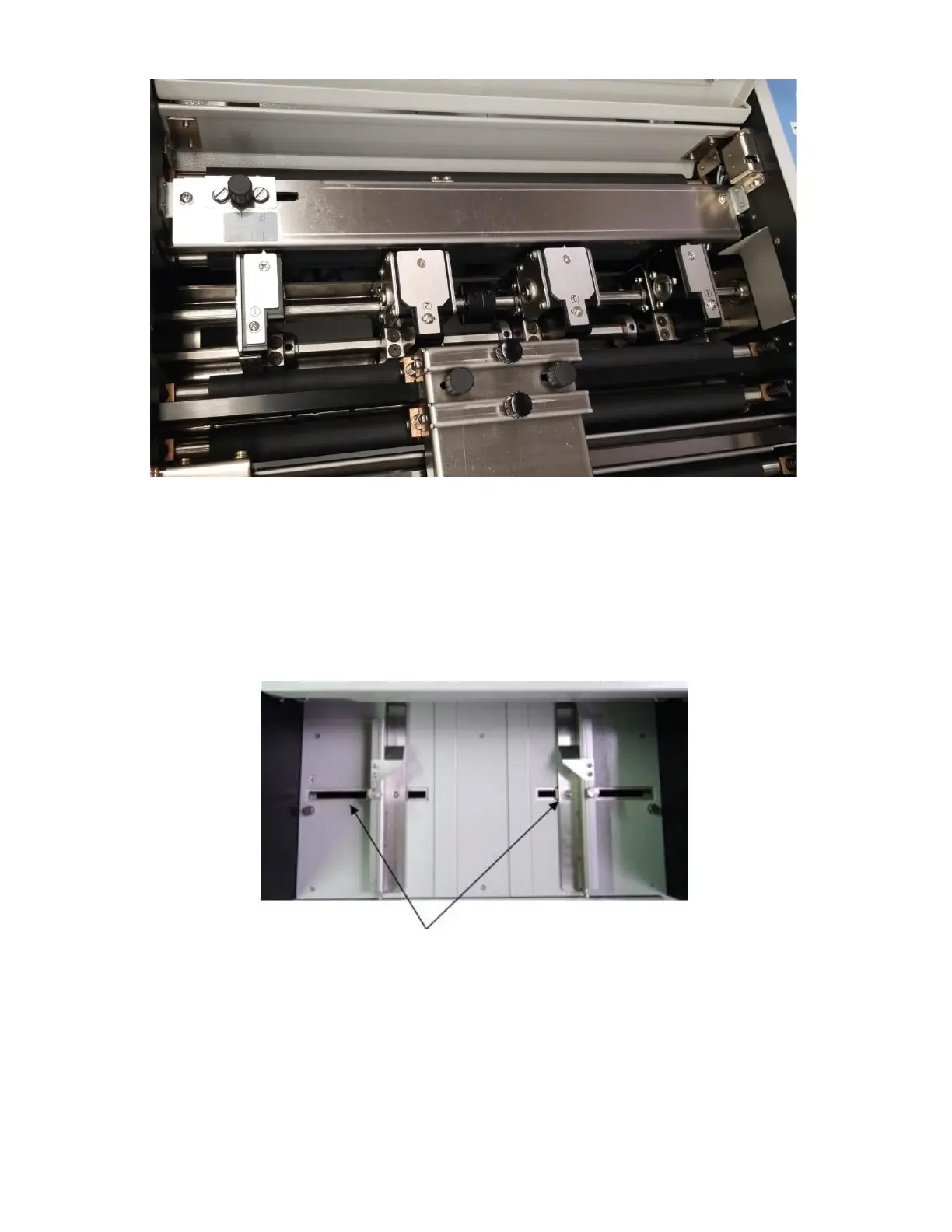

To custom set the slitter position, install the paper, and press the Test button. This will feed the paper in, stopping
just before the slitters. Set the slitter position according the job. Position the collars against the slitters and tighten
the set screws to lock the slitters in place.
5.4.3 Skew Adjustment
To adjust paper skew, loosen the two screws on the outside edges of the feed table (shown in the image above),
making sure the screws can move freely in the hole.
