Graphic Whizard PT 331SCC - Machine Assembly; Outfeed Tray and Card Catcher; Extension Table Installation; Power Socket and Switch

8
4.2 Machine Assembly
4.2.1 Outfeed Tray and Card Catcher

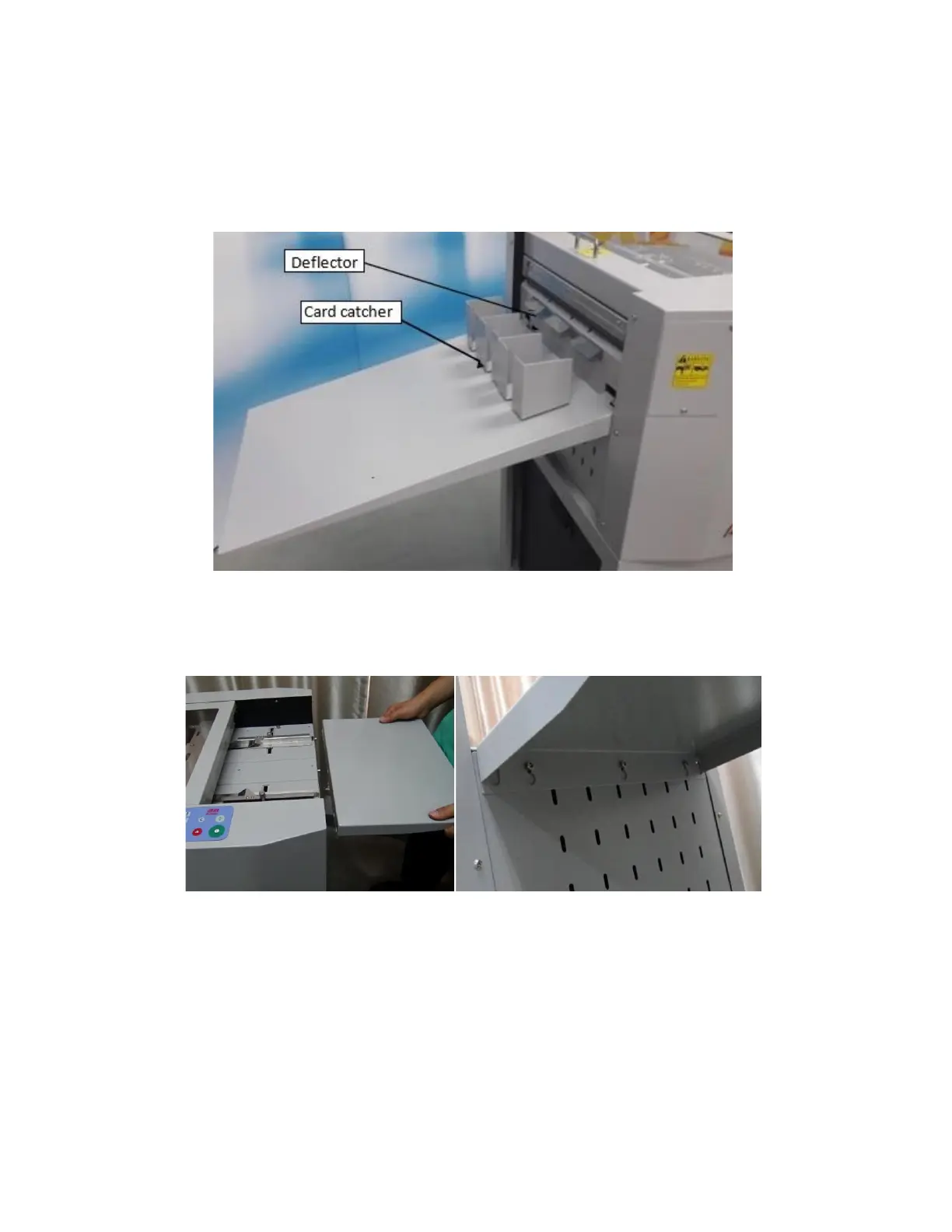

The card catcher is designed to sit just behind the exit rollers, allowing the cards to fall freely from the machine.
Use the deflectors to help guide the cut stock.
4.2.2 Extension Table Installation
Attach the feed extension table to the PT 331SCC by loosening the three hex screws and slipping the tray over the
screws. Ensure the tray remains level when tightening the screws.
4.2.3 Power Socket and Switch
AC input, voltage/frequency is 110V/50-60Hz. Note: For machine and operator safety, there is a fuse in the power
inlet. If the machine does not power on when connected to a functioning 110V power outlet, check the fuse.
