5.7.1 Change Perforate Crash Pad
The cross perf crash pad is a consumable item and will require replacement. To maintain the life of your perf blade,
please check the perf anvil regularly and replace the crash pad if worn.
To replace the crash pad:
1. Remove the crash pad anvil tool
from the PT 331SCC (installed)

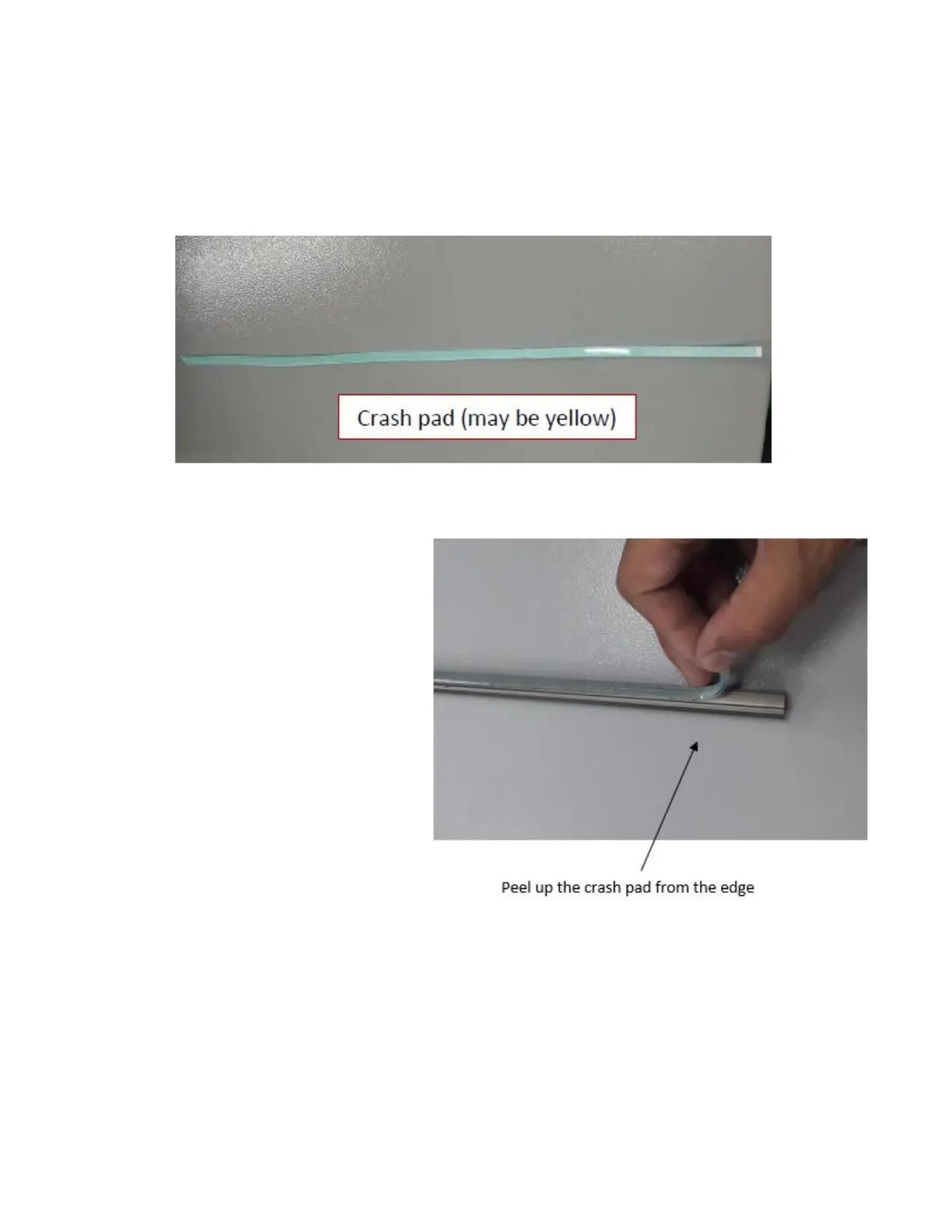

2. Peel up one edge of the crash
pad and pull along the length of the tool.
3. Clean any glue residue from the
anvil tool.
4. Peel the protective backing from
the replacement crash pad.
5. With the anvil clean, carefully
adhere the replacement crash pad to the
anvil.
Note: The anvil will need to be exercised to
achieve a clean perforation. Run a 12”x18” job
with at least 10 cross perfs programmed. Run this
job 20 times.
