Notes
• The control mode selected during setup is saved as a
default for models to be set up and can be changed at any
time in „Stick Mode Preset” option of the “System Set” sub-
menu of the System menu.
• Within a model memory, the control mode can be adapted
to individual needs at any time in the last value field of the
„Model type“ submenu of the basic menu.
• Depending on the selection of a control mode, one of the
two control sticks may also have to be switched to non
neutralizing, see above under “Neutralizing the control
sticks”.
• Not only the presetting of the control mode but also the
language setting can be adapted to current needs at any
time, in the „System Set“ submenu of the system menu as
well as the date and time in the „Clock Info“ submenu of
the basic menu.

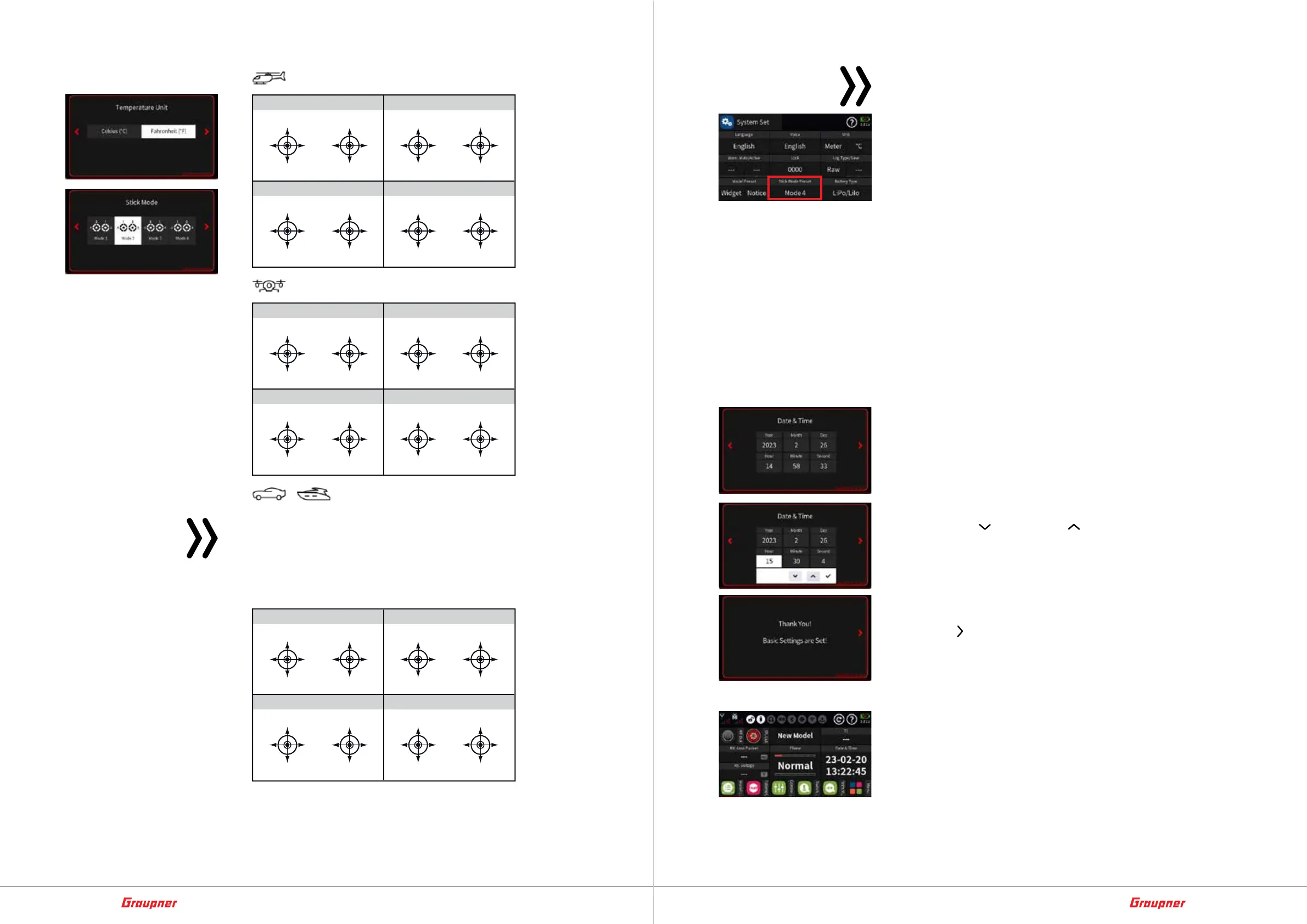

Date time
IThe current date and time are entered or corrected in this display
as part of the initial setup of the transmitter.
Set date and time step-by-step
1. Touch the desired value field.
This is displayed in white and selection fields are found at the
bottom of the display.
2. Use the left „
“- or central „ “-button to select the desired
value.
3. If necessary, proceed in the same way with the other value
fields.
4. Tapping the right tick closes the current display and converts to
the next, last one.
5. Tapping „
“ restarts the transmitter and after the start-up dis-
play, the factory pre-configured first display page appears.
Main display
This display, like five others, is completely freely configurable
except header. The context-related help text explains how this is
done in detail.
A total six free-editable pages can be selected by top two buttons
on the left of the display or by the left or right arrow keys.
• (Helicopter model)
MODE 2 (Throttle left)
Nick
Nick
Tail rotor
Tail rotor
Motor / Pitch
Motor / Pitch
Roll
Roll
Motor / Pitch
Motor / Pitch
Tail rotor
Tail rotor
Nick
Nick
Roll
Roll
Nick
Nick
Roll
Roll
Motor / Pitch
Motor / Pitch
Tail rotor
Tail rotor
Motor / Pitch
Motor / Pitch
Roll
Roll
Nick
Nick
Tail rotor
Tail rotor
MODE 1 (Throttle right)
MODE 3 (Throttle right)
MODE 4 (Throttle left)
• (Copter)
MODE 2 (Throttle/Pitch left)
Nick
Nick
Yaw
Yaw
Throttle/Pitch
Throttle/Pitch
Roll
Roll
Throttle/Pitch
Throttle/Pitch
Yaw
Yaw
Nick
Nick
Roll
Roll
Nick
Nick
Roll
Roll
Throttle/Pitch
Throttle/Pitch
Yaw
Yaw
Throttle/Pitch
Throttle/Pitch
Roll
Roll
Nick
Nick
Yaw
Yaw
MODE 1 (Throttle/Pitch right)
MODE 3 (Throttle/Pitch right)
MODE 4 (Throttle/Pitch left)
• (vehicles and boats)
Note
To be compatibile with control modes of the flying model
types, we recommend to assign control function 1 for the
backwards and forwards function and control function 4
for the direction function:
MODE 2 (for/backward left)
left
right
forward/backward
forward/backward
forward/backward
forward/backward
left
right
forward/backward
forward/backward
left
right
forward/backward
forward/backward
left
right
MODE 1 (for/backward right)
MODE 3 (for/backward right)
MODE 4 (for/backward left)
