6. Initial Setting
17

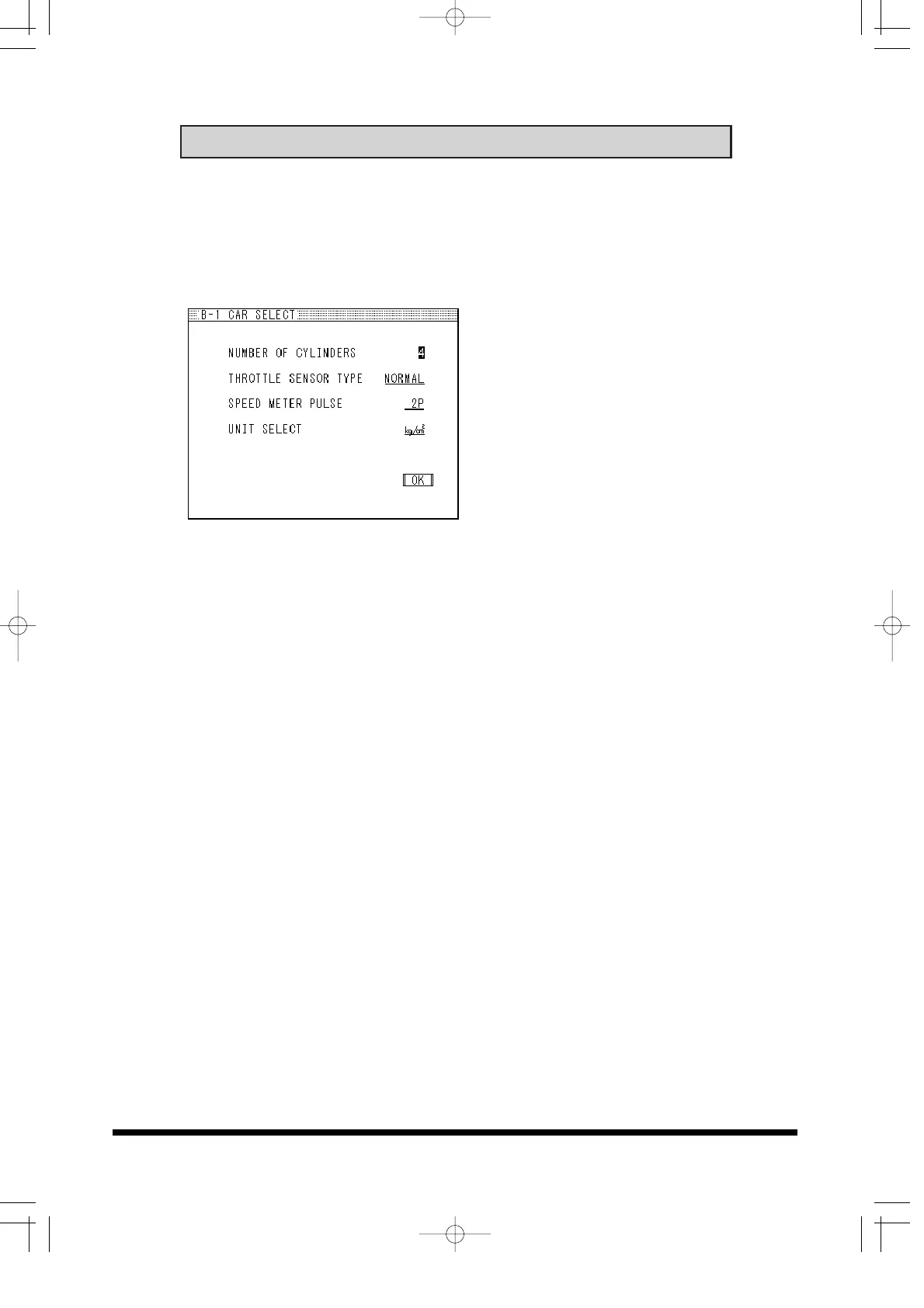

CAR SELECT (B-1)
When installed for the first time, the unit will automatically go to
this Initial Setting mode. The boost controller feature will still
operate without performing this setup, but without confirming the
rpm, throttle position and vehicle speed signal, the RPM OFFSET
feature will not operate.
1.NUMBER OF CYLINDERS
Select the number of cylinders
the vehicle is equipped with.
For rotary engines, select 4 for
2 rotor and 6 for 3 rotor
engines.
* This setting is required to
display rpm at real time or to
use the RPM OFFSET
feature.
2. THROTTLE SENSOR TYPE
NORMAL - - - This type increases the throttle signal voltage as
the throttle opens.
REVERSE - - - This type decreases the throttle signal voltage as
the throttle opens.
Select NORMAL or REVERSE sensor type
3. SPEED METER PULSE
16P - - For Nissan Y32 Gloria/Cedric (only available in Japan)
8P - - For Nissan Y32 Cema (only available in Japan)
2P - - For all other Nissan vehicles
4P - - For all other Japanese vehicles
Select the corresponding Pulse setting
4. UNIT SELECT
kPa
kg/cm2 (1 kg/cm2 = 98.0665kPa)
mmHg (1 mmHg = 0.133322kPa)
bar (1 bar = 100kPa)
psi (1 psi = 6.895kPa)
