D-4 ADD. INJECTOR MAP
47
Additional Injection Setting
• This is used to increase the factory injector’s fuel injection by
adding to the factory programmed injector duty cycle.
• This feature is required if Boost Limiter Cut feature is used.
• The additional range is 0-100%. However, the duty cycle of the
injector cannot exceed 100%.
• Since this is a "piggy back" system, a "0" value inputted in any
map table will be same as the factory ECU setting, and any value
other than "zero" is the adjustment to the factory ECU signals or
program.
-Example-
If factory ECU injector duty cycle is 50%, and 30% was inputted in
this Additional Injection Map,
50 + (50 x 0.3) = 65%

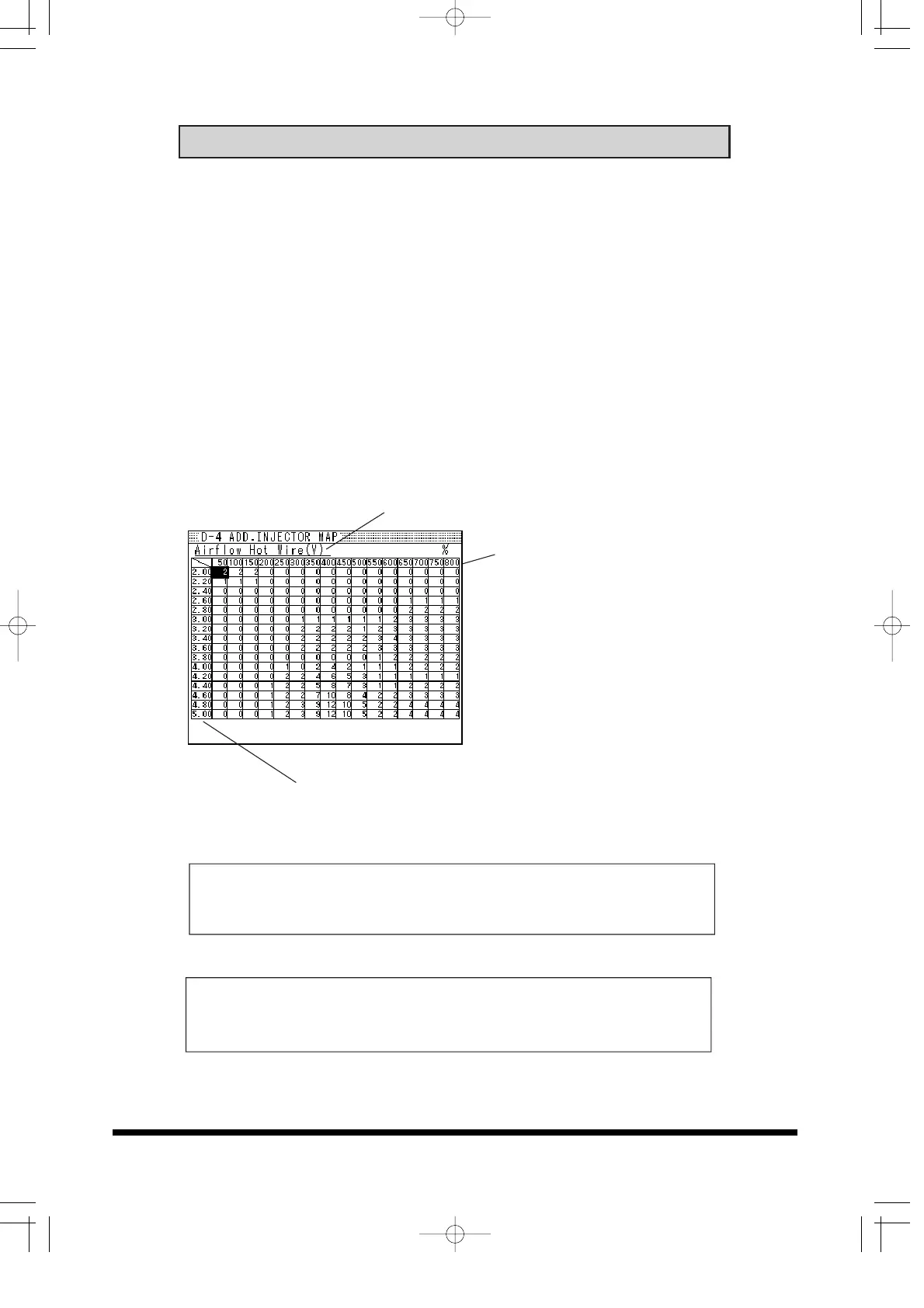

Load Description
Engine rpm
Input a desired increase rate
of the factory duty cycle in the
corresponding cells.
Load scale
Adjustment Value: %
Input range : 0 ~ +100%, 0.5% increments
Please
• To take out fuel, make the adjustment in the Air Flow Adjustment
Map.
To Next Page
