D-3 IGNITION MAP
46

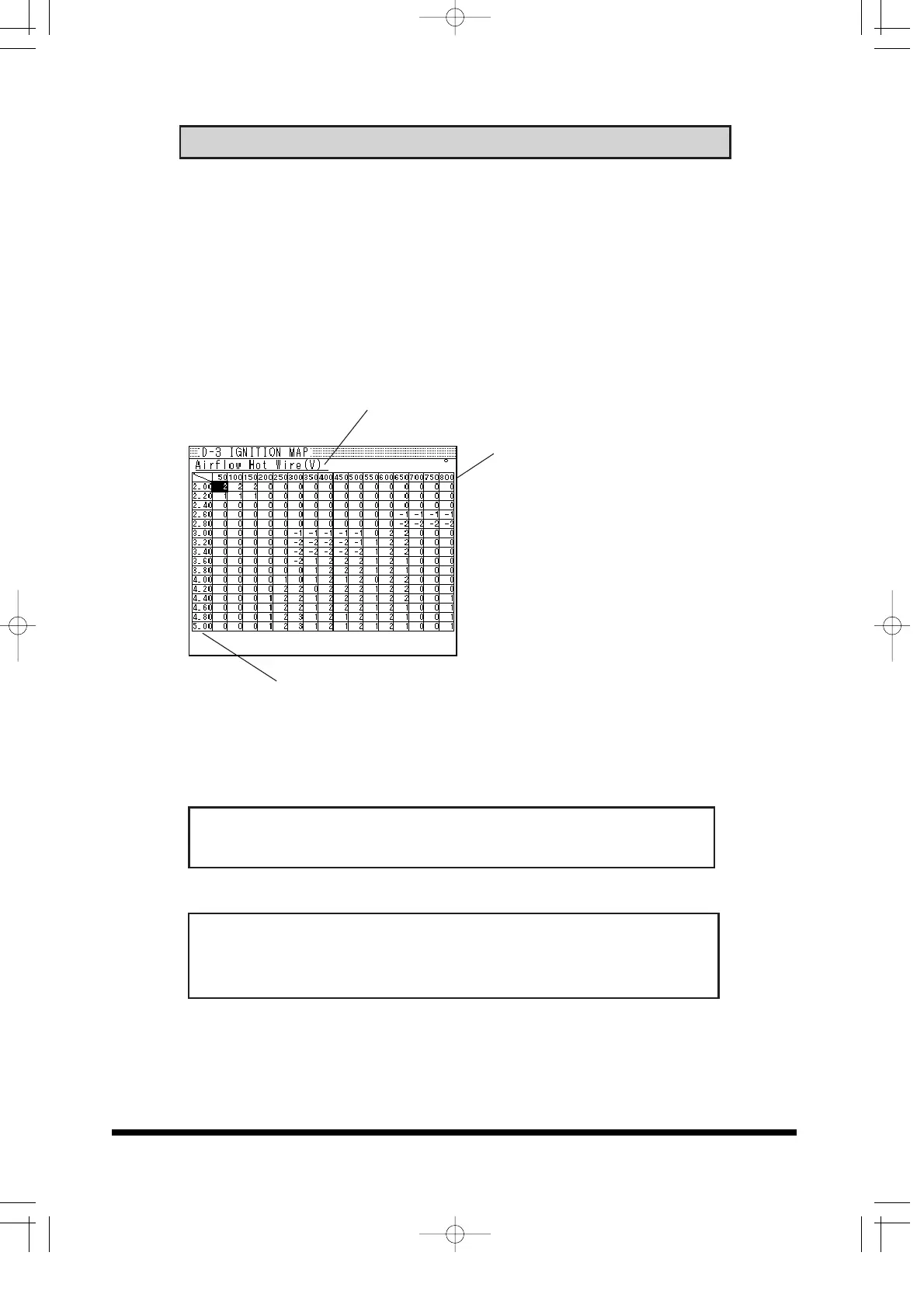

Ignition Adjustment Map
This allows the tuner to adjust the factory ignition timing.
• Since this is a "piggy back" system, a "0" value inputted in any map
table will be same as the factory ECU setting, and any value other
than "zero" is the adjustment to the factory ECU signals or program.
• Input a number for advancing and "-" before the number for
retarding the timing.
• The value inputted in this map table is not the actual ignition timing.
Load description
Engine rpm
Load Scale
Adjustment Value: º
Input range : -20 ~ +20º, 1º increments
Important
• Since the e-Manage does not receive the crank angle sensor
signal, there is a possibility that the timing could be off by ±1º.
