G0513 Series Bandsaws (Mfd. Since 07/18)

-19 -

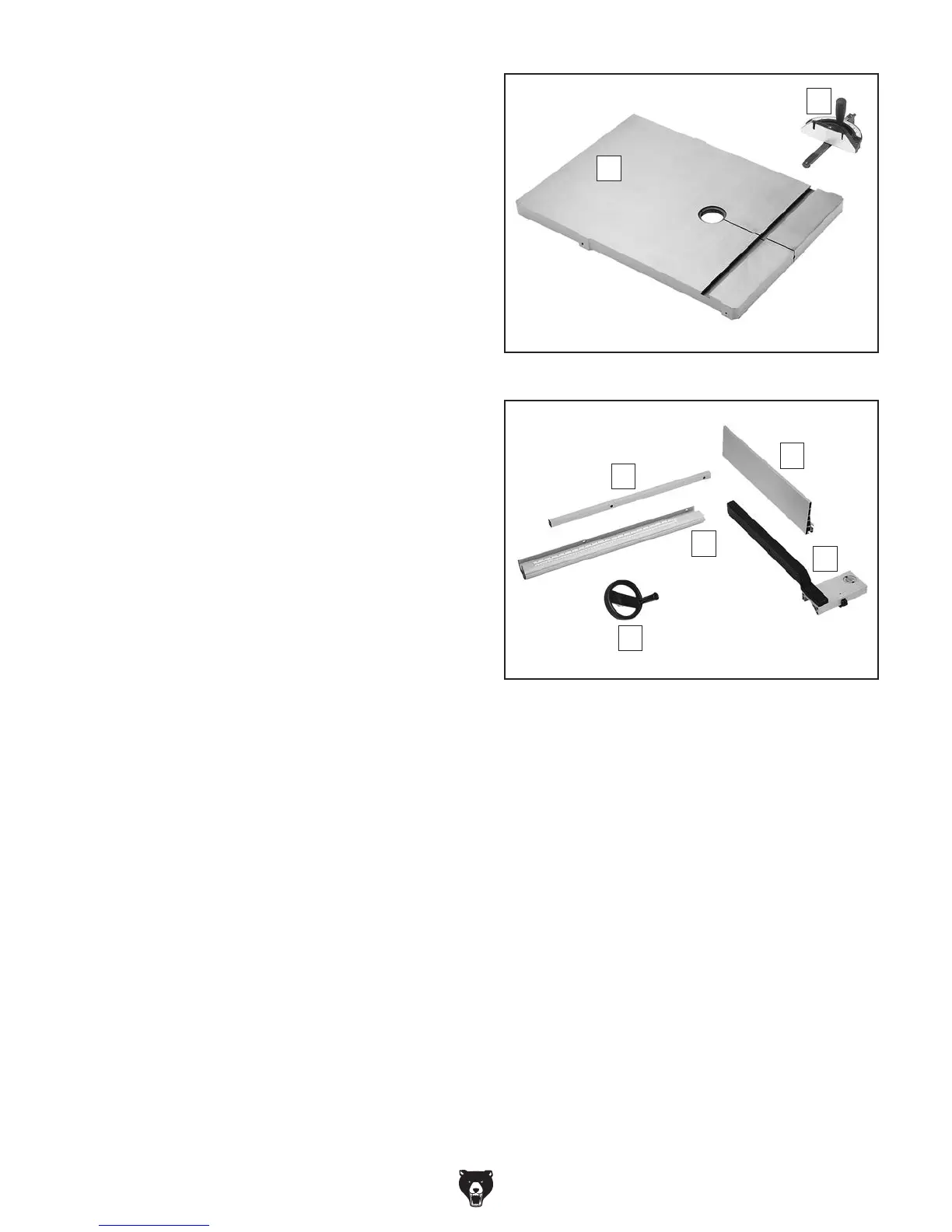

Figure 12. Other bandsaw components.

G0513X2F

Shipping Inventory (Figures 11–12) Qty

A. Bandsaw (not shown) ................................. 1

B. Table ........................................................... 1

C. Miter Gauge ................................................ 1

D. Rear Rail .................................................... 1

E. Resaw Fence ............................................ 1

F. Front Rail .................................................... 1

G. Fence Assembly ......................................... 1

H. Guide Post Handwheel............................... 1

Hardware & Tools (Not Shown) Qty

• Flat Washers 8mm (Table, Fence, Rail) ..... 5

• Lock Washers 8mm (Table, Rail) ............... 4

• Hex Bolts M8-1.25 x 25 (Table) .................. 4

• Hex Bolt M8-1.25 x 90 (Positive Stop) ........ 1

• Hex Nuts M8-1.25 (Positive Stop, Fence)... 2

• Cap Screws M6-1 x 16 (Rear Rail) ............. 2

• Hex Bolt M6-1 x 20 (Front Rail) .................. 2

• Lock Washers 6mm (Rail) .......................... 2

• Flat Washers 6mm (Rail) ............................ 2

• Table Pin..................................................... 1

• Table Inserts ............................................... 2

• Locking Handle M8-1.25 x 44 (Fence) ....... 1

• Fence Handle M8-1.25 x 22 (Fence) .......... 1

• Moving Plate (Fence).................................. 1

• Hex Wrench 5mm, 8mm....................1 Each

• Open-End Wrench 10 x 13mm ................... 1

Figure 11. Table and miter gauge.
