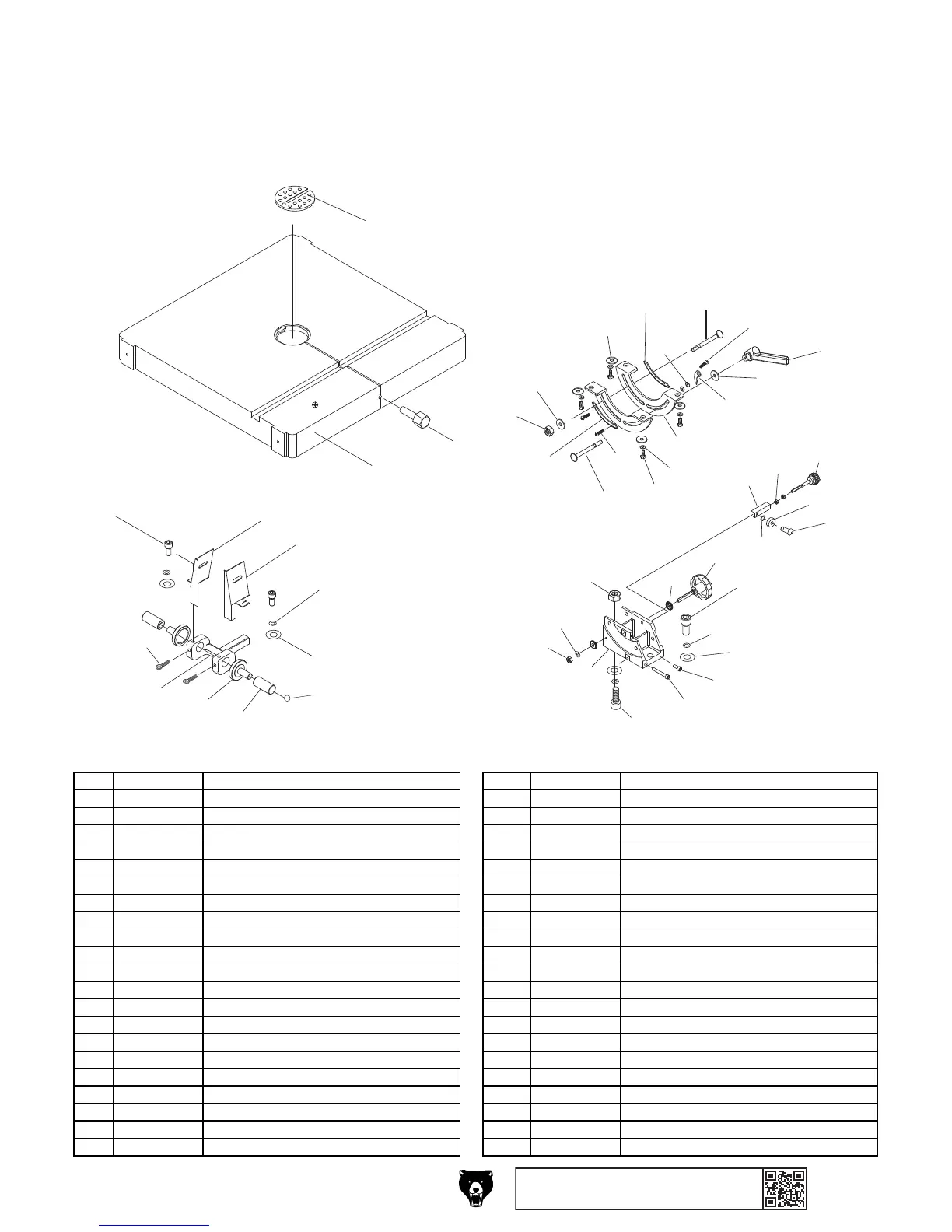

G0513 & G0513ANV Table, Trunnion & Lower
Blade Guides
REF PART # DESCRIPTION REF PART # DESCRIPTION
77 P0513077 LOCK WASHER 8MM 118 P0513118 LOCK HANDLE M8-1.25
96 P0513096 FLAT WASHER 8MM 119 P0513119 FLAT WASHER 8MM
98 P0513098 CAP SCREW M10-1.5 X 35 120 P0513120 POINTER
99 P0513099 HEX NUT M10-1.5 121 P0513121 TRUNNION PLATE
100 P0513100 TRUNNION GEAR 122 P0513122 LOCK WASHER 8MM
101 P0513101 STAR KNOB BOLT 123 P0513123 CAP SCREW M8-1.25 X 16
102 P0513102 TRUNNION SUPPORT BRACKET 124 P0513124 CARRIAGE BOLT M8-1.25 X 80
103 P0513103 LOCK WASHER 10MM 126 P0513126 TABLE 17" X 17"
104 P0513104 FLAT WASHER 10MM 126 P0513ANV126 TABLE 17" X 17" (G0513ANV)
105 P0513105 CAP SCREW M6-1 X 15 127 P0513127 TABLE INSERT
106 P0513106 CAP SCREW M6-1 X 50 128 P0513128 TABLE PIN
107 P0513107 ALIGNMENT ROD 129 P0513129 HEX BOLT M8-1.25 X 20 LH
108 P0513108 HEX NUT M6-1 130 P0513130 LEFT GUARD
109 P0513109 ADJUSTMENT KNOB BOLT M6-1 131 P0513131 THUMB SCREW M6-1 X 16
110 P0513110 BALL BEARING 6000ZZ 132 P0513132 LOWER BLADE GUIDE SUPPORT
111 P0513111 BUTTON HD CAP SCR M10-1.5 X 20 133 P0513133 BLADE GUIDE
112 P0513112 FLAT WASHER 8MM 134 P0513134 GUIDE ADJUSTMENT SHAFT
113 P0513113 FLAT WASHER 8MM 135 P0513135 RIGHT GUARD
114 P0513114 PHLP HD SCR M4-.7 X 6 139 P0513139 CAP SCREW M10-1.5 X 30
115 P0513115 GEAR PLATE 148 P0513148 CARRIAGE BOLT M8-1.25 X 85
116 P0513116 LOCK NUT M8-1.25 163 P0513163 LOCK WASHER 8MM
117 P0513117 PHLP HD SCR M4-.7 x 6 196 P0513196 STEEL BALL 5MM
113
110
105
116
116
106
99
163
103
98
104
102
100
139
101
111
103
107
109
108
120
121
122
148
123
119
114
115
115
112
113
118
124
117
129
130
133
132
134
135
77
96
196
131
128
126
127
