Grizzly G0513 User Manual

-72-
G0513 Series Bandsaws (Mfd. Since 07/18)
READ ELECTRICAL SAFETY
ON PAGE 71!
Hot
Hot
Ground
6-15 Plug
(As Recommended)
Motor @220V
Power Switch
(viewed from behind)
Motor @110V
220
VAC
G
START
STOP
220 VAC
Ground
Ground
Ground
Rewired to 110V
3
1
4
3
1
4
S. Cap 300M 250V
Rewired to 110V
R. Cap 40M 250V
S. Cap 300M 250V
R. Cap 40M 250V
Hot
Neutral
Ground
110 VAC
L5-30 Plug
(As Recommended)
G
W
2
2

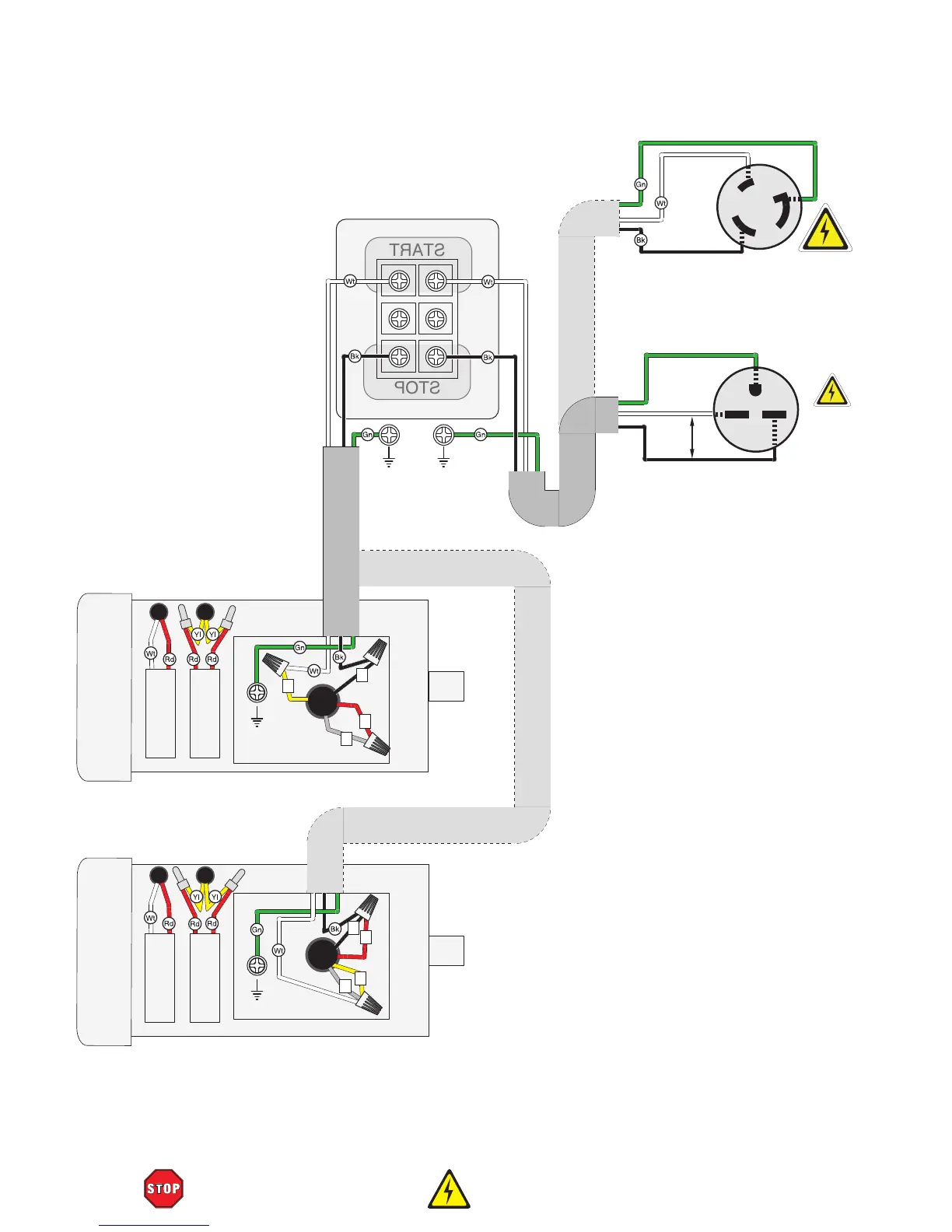

G0513, G0513ANV & G0513X2 Wiring Diagram
