G0513 Series Bandsaws (Mfd. Since 07/18)
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
G0513X2B Main Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
86 P0513X2B086 BUTTON HD CAP SCR M8-1.25 X 20 94 P0513X2B094 CAP SCREW M6-1 X 10
87 P0513X2B087 STRAIN RELIEF PLATE 1-HOLE 95 P0513X2B095 LOWER WHEEL COVER
88 P0513X2B088 FLANGE SCREW M5-.8 X 10 97 P0513X2B097 FENDER WASHER 8MM
89 P0513X2B089 PILLOW BLOCK 111 P0513X2B111 CAP SCREW M6-1 X 20
90 P0513X2B090 KEY 5 X 5 X 35 119 P0513X2B119 LOCK WASHER 8MM
91 P0513X2B091 KEY 5 X 5 X 35 176 P0513X2B176 FLANGE SCREW M5-.8 X 10
92 P0513X2B092 MOTOR PULLEY TYPE-A 3.5" 177 P0513X2B177 STRAIN RELIEF 5/16" ELBOW LT
93 P0513X2B093 V-BELT A-42
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.

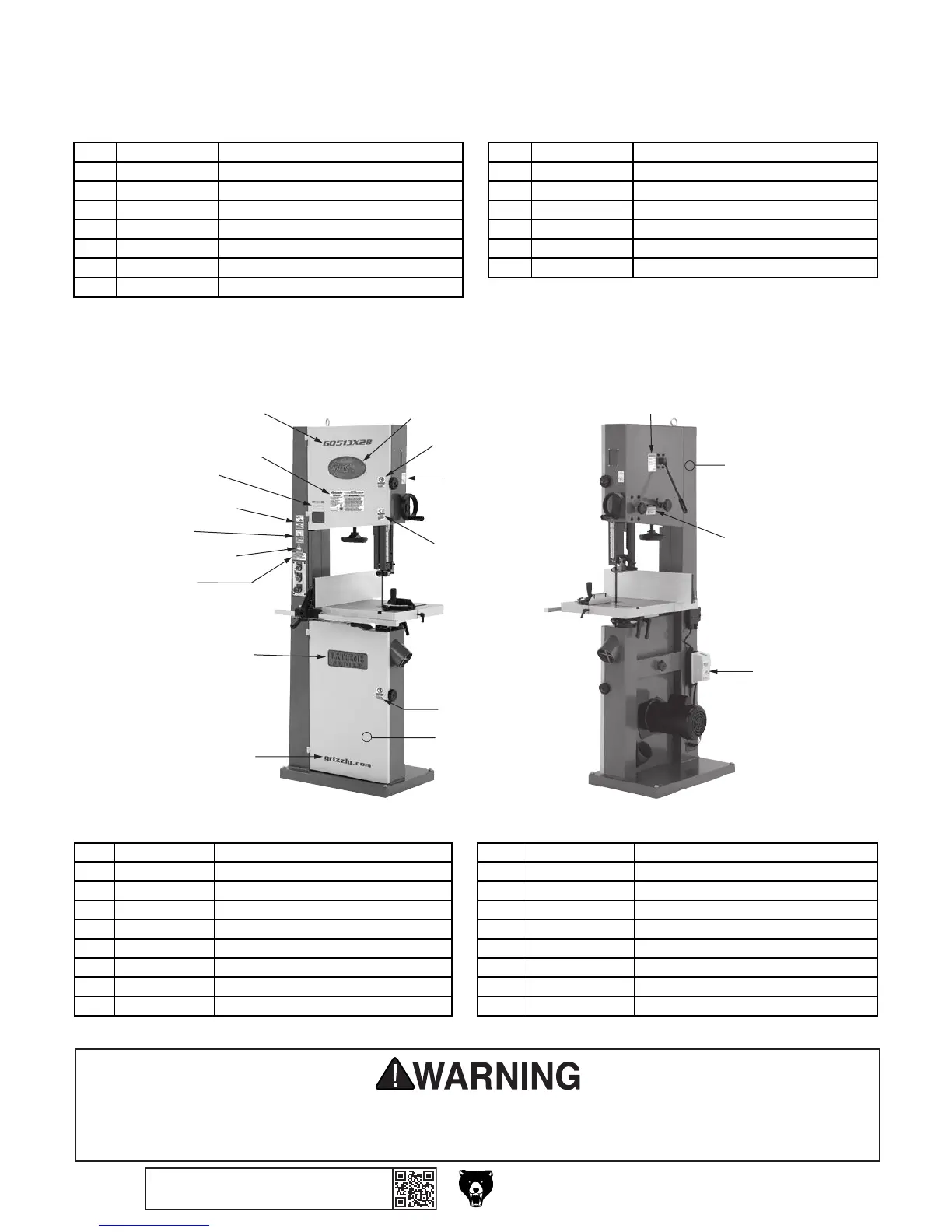

G0513X2B Labels
214
215
201
202
203
204
205
216V2
206
208
209
210
211
212
213
217
209
219
218
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0513X2B201 MODEL NUMBER LABEL 211 P0513X2B211 DISCONNECT POWER LABEL
202 P0513X2B202 GRIZZLY LOGO PLATE 212 P0513X2B212 OPEN DOOR LABEL
203 P0513X2B203 OPEN DOOR LABEL 213 P0513X2B213 TOUCH-UP PAINT, GRIZZLY PUTTY
204 P0513X2B204 GUARD ADJ LABEL 214 P0513X2B214 TENSION ADJ LABEL
205 P0513X2B205 SCALE DIRECTIONS LABEL 215 P0513X2B215 TOUCH-UP PAINT, GRIZZLY GREEN
206 P0513X2B206 SAFETY GLASSES LABEL 216V2 P0513X2B216V2 MACHINE ID LABEL V2.05.11
208 P0513X2B208 READ MANUAL LABEL 217 P0513X2B217 GRIZZLY.COM LABEL
209 P0513X2B209 ELECTRICITY LABEL 218 P0513X2B218 MAGNETIC BRAKE NOTICE
210 P0513X2B210 EXTREME SERIES PLATE 219 P0513X2B219 GUIDE POST LOCK LABEL
