G0513 Series Bandsaws (Mfd. Since 07/18)
-25-
The table is heavy and requires two people
to lift it onto the trunnions. Remove the saw
blade to make table installation easier.
8. Models G0513 and G0513ANV: Secure the
table to the trunnions, as shown in Figure 24
with the (4) M8-1.25 x 16 hex bolts, 8mm lock
washers, and 8mm flat washers.
Models G0513X2, G0513X2B, G0513X2BF,
and G0513X2F: Secure the table to the trun-
nions with the (4) M8-1.25 x 25 hex bolts,
8mm lock washers, and 8mm flat washers.
9. Replace the saw blade.

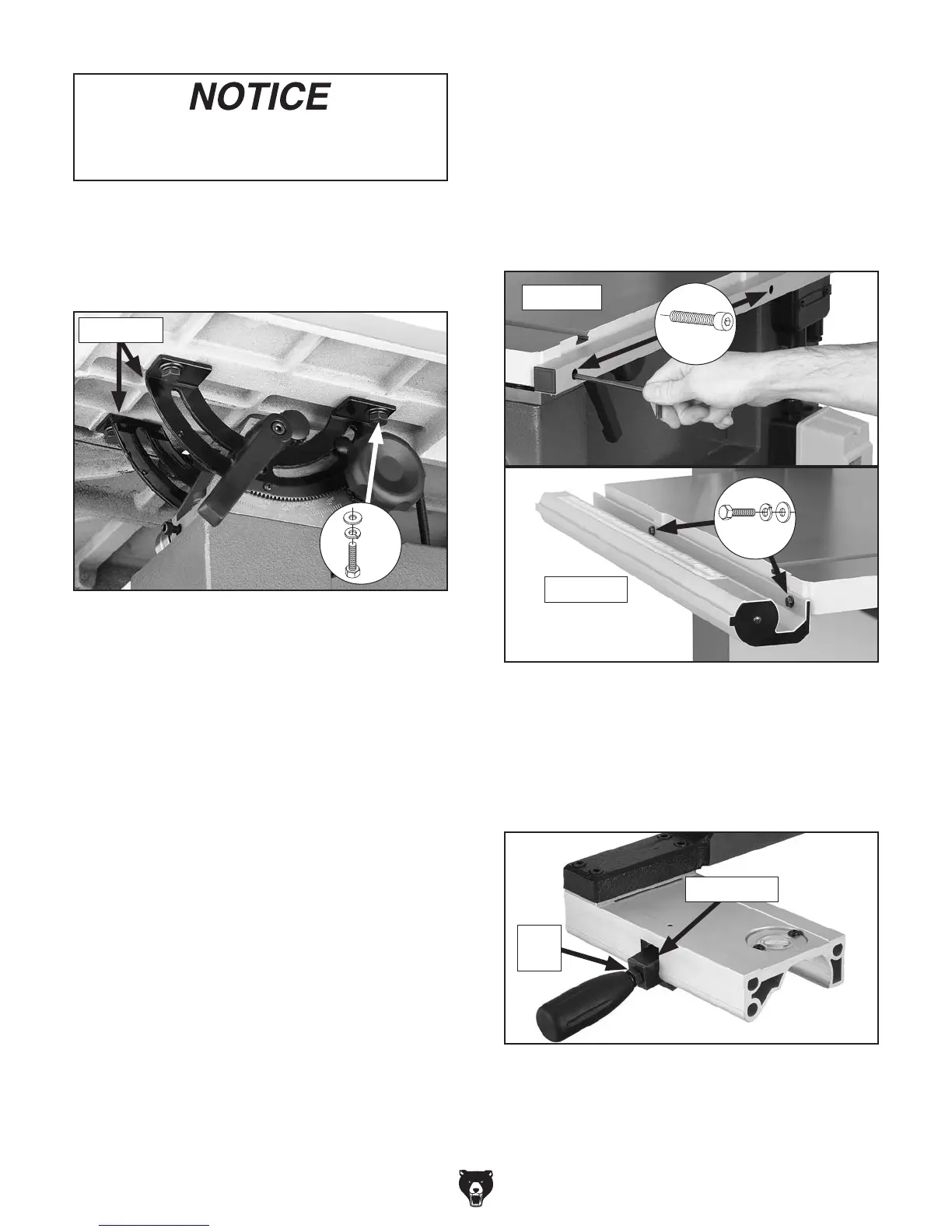

Figure 24. Mounting the table.
Trunnions
x 4
Installing Fence (G0513, G0513ANV,
G0513X2 & G0513X2F)
1. Attach the rear rail to the table with the (2)
M6-1 x 16 cap screws, as shown in Figure 25.
2. Attach the front rail with the (2) M6-1 x 20 hex
bolts, 6mm lock washers, and 6mm flat wash-
ers, as shown in Figure 25.
3. Install an M8-1.25 hex nut on the fence
handle, then thread the handle into the fence
assembly, as shown in Figure 26. Tighten
the hex nut against the fence pivot block to
secure the handle.
Figure 26. Example of handle installed on fence
assembly.
Hex
Nut
Pivot Block
Figure 25. Rail installation.
Rear Rail
Front Rail
x 2
x 2
To Next Page
