G0513 Series Bandsaws (Mfd. Since 07/18)
-31-
Power Cord
Connection
(G0513X2BF &
G0513X2F)
The power cord connection MUST be performed
by an electrician or qualified service personnel.
Items Needed Qty
Cord “ S”-Type, 3-Wire, 14 AWG, 300 VAC,
at least 6 ft. long ......................................... 1
Phillips Screwdriver #2 ...................................... 1
Wire Nuts for (2) 14 AWG Wires ........................ 3
Electrical Tape ................................... As Needed
To connect the power cord to the machine:
1. Attach the required plug to the cord per
the plug manufacturer's instructions (refer
to Power Supply beginning on Page 11 for
specifications and the NEMA plug wiring on
Pages 74– 75).
2. Remove the power supply junction box cover
from the right rear of the bandsaw (see
Figure 40). It is secured by two screws.
Serious injury could occur if you connect
machine to power before completing setup
process. DO NOT connect to power until
instructed later in this manual.

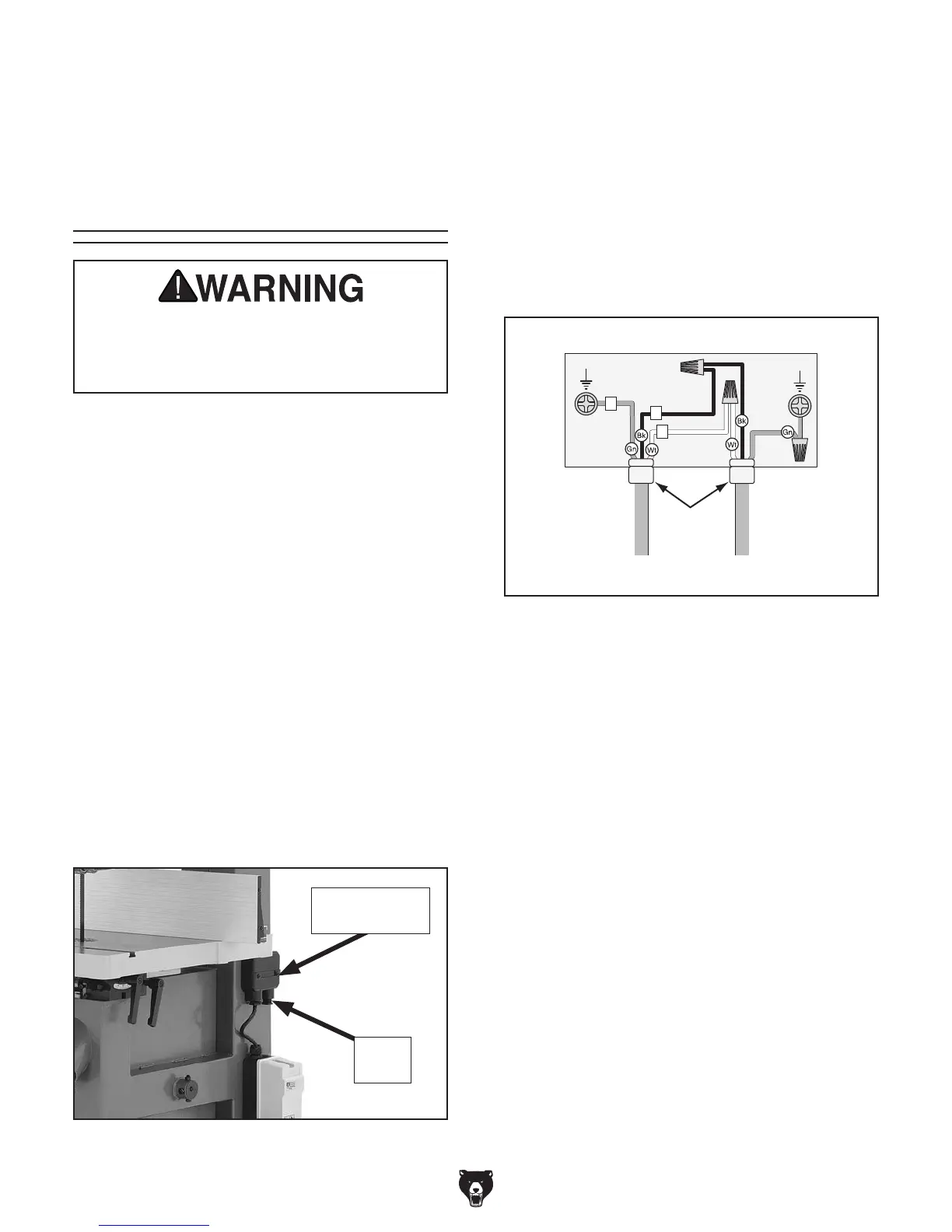

Figure 40. Power supply junction box on rear of
bandsaw.
Power Supply
Junction Box
Strain
Relief
3. Loosen the right strain relief on the junction
box, then feed the cord into the box with
enough slack in the wires to make the con-
nections.
4. Re-tighten the strain relief around the cord.
Tug on it to make sure the wires inside the
box will not move.
5. Connect the incoming ground wire to the
ground post, as shown in Figure 41.
6. Secure the two incoming hot wires to the
black and white wires from the bandsaw
with wire nuts, then wrap the nuts and wires
with electrical tape to make sure they will not
come loose.
7. Re-attach the junction box cover.
Power Supply Junction Box
R
S
E
Ground
From
Power Supply
To
Bandsaw
Strain
Relief
Ground
Figure 41. Incoming power cord connections.
