Grizzly G0513 User Manual

-26-
G0513 Series Bandsaws (Mfd. Since 07/18)
Installing Fence (G0513X2B &
G0513X2BF)
1. Attach the rail plates to the front rail with the
(3) M6-1 x 20 cap screws, 6mm lock wash-
ers, and 6mm flat washers (see Figure 29).

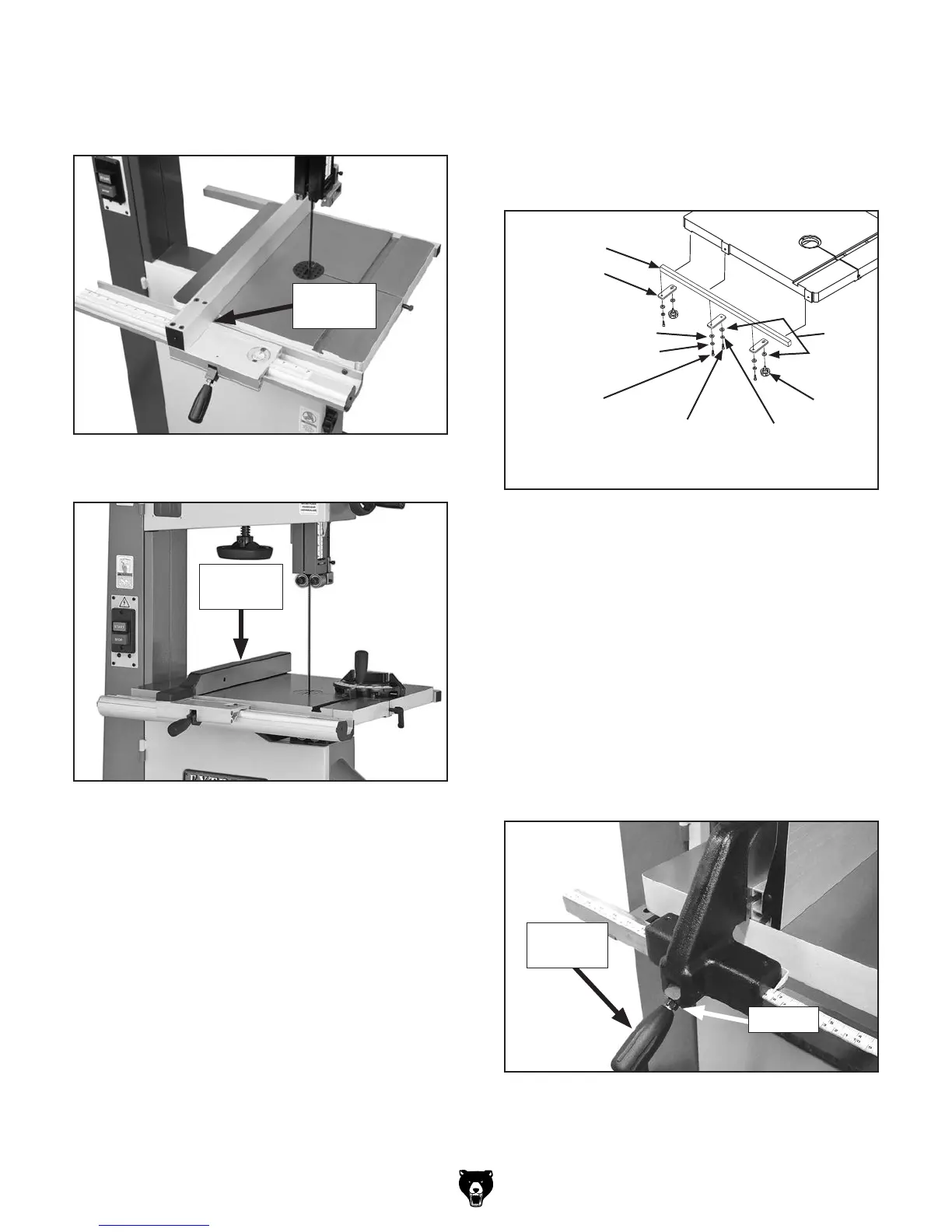

Figure 29. Installing front rail onto table.
Knob
Flat
Washer
8mm
Flat Washer 6mm
Lock Washer 6mm
Lock Washer
8mm
Front Rail
Rail Plate
Cap Screw
M6-1 x 20
Cap Screw
M8-1.25 x 20
2. Attach the outer two rail plates with the round
and elongated mounting holes to the outer
part of the table bottom with (2) M8-1.25 x 20
knobs and 8mm flat washers.
3. Attach the remaining rail plate with the round
mounting holes using (1) M8-1.25 x 20 cap
screw, 8mm lock washer, and 8mm flat
washer (see Figure 29).
4. Thread the fence handle into the fence, then
tighten the hex nut against the fence pivot
block (see Figure 30).
Figure 30. Fence handle components.
Hex Nut
Fence
Handle
4. Pull the fence handle up and place the fence
assembly on the front rail (see Figures
27–28).
5. Push the fence handle down to lock the fence
assembly in place.
6. Adjust the rear rail pad until there is an even
gap between the bottom of the fence and the
table, then tighten the rail pad hex nut against
the fence.
Figure 27. Fence assembly installed on G0513
and G0513ANV.
Fence
Assembly
Figure 28. Fence assembly installed on
G0513X2 and G0513X2F.
Fence
Assembly
