Grizzly G0513 - G0513 X2 F 220 V Wiring Diagram

G0513 Series Bandsaws (Mfd. Since 07/18)
-75-
READ ELECTRICAL SAFETY
ON PAGE 71!

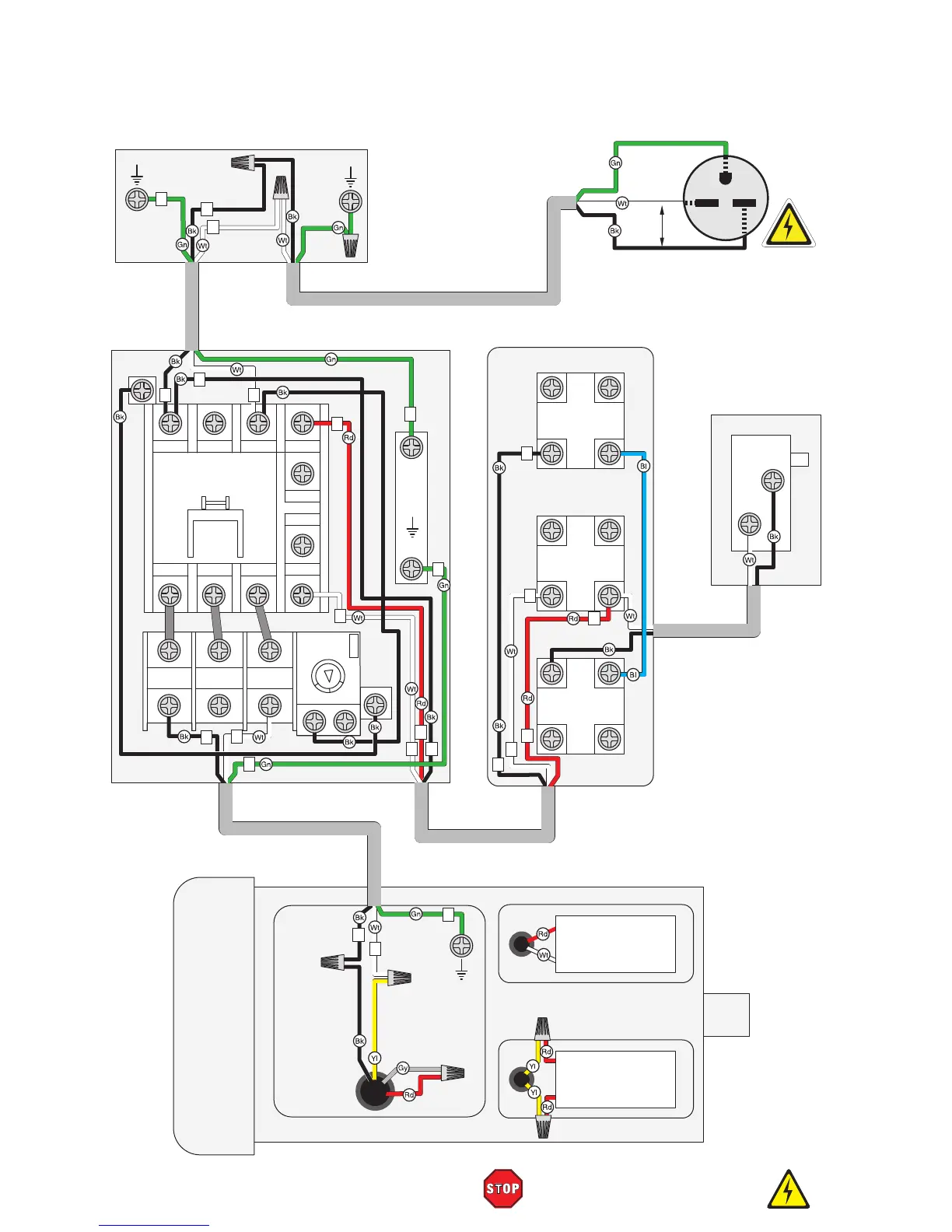

G0513X2F 220V Wiring Diagram
Hot
Hot
Ground
220V 6-15 Plug
(As Recommended)
220
VAC
G
RESET
96
98
1/2 3/4
L1/1 L3/5 NO13L2/3
5/6
8
10
12
NC15
T1/2
T3/6
T2/4
NC16
NO14
95
22
21
14
13
22
21
14
13
22
21
14
13
Power Supply Junction Box
Magnetic Switch Assembly
Control Panel
(Viewed from Behind)
Foot Brake Switch
R
S
R
S
A
Conctactor
SDE MA-09
Power
ON
OFF
U
V
U
V
220V
Motor
E
E
E
E
E
1
2
3
3
2
1
3
2
1
3
2
1
Set at
10A
OL Relay
SDE RA-20
Ground
Ground
Ground
Ground
Start Capacitor
300MFD 250VAC
Run Capacitor
40MFD 250VAC
