Grizzly G0513 User Manual

G0513 Series Bandsaws (Mfd. Since 07/18)
-83-
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.

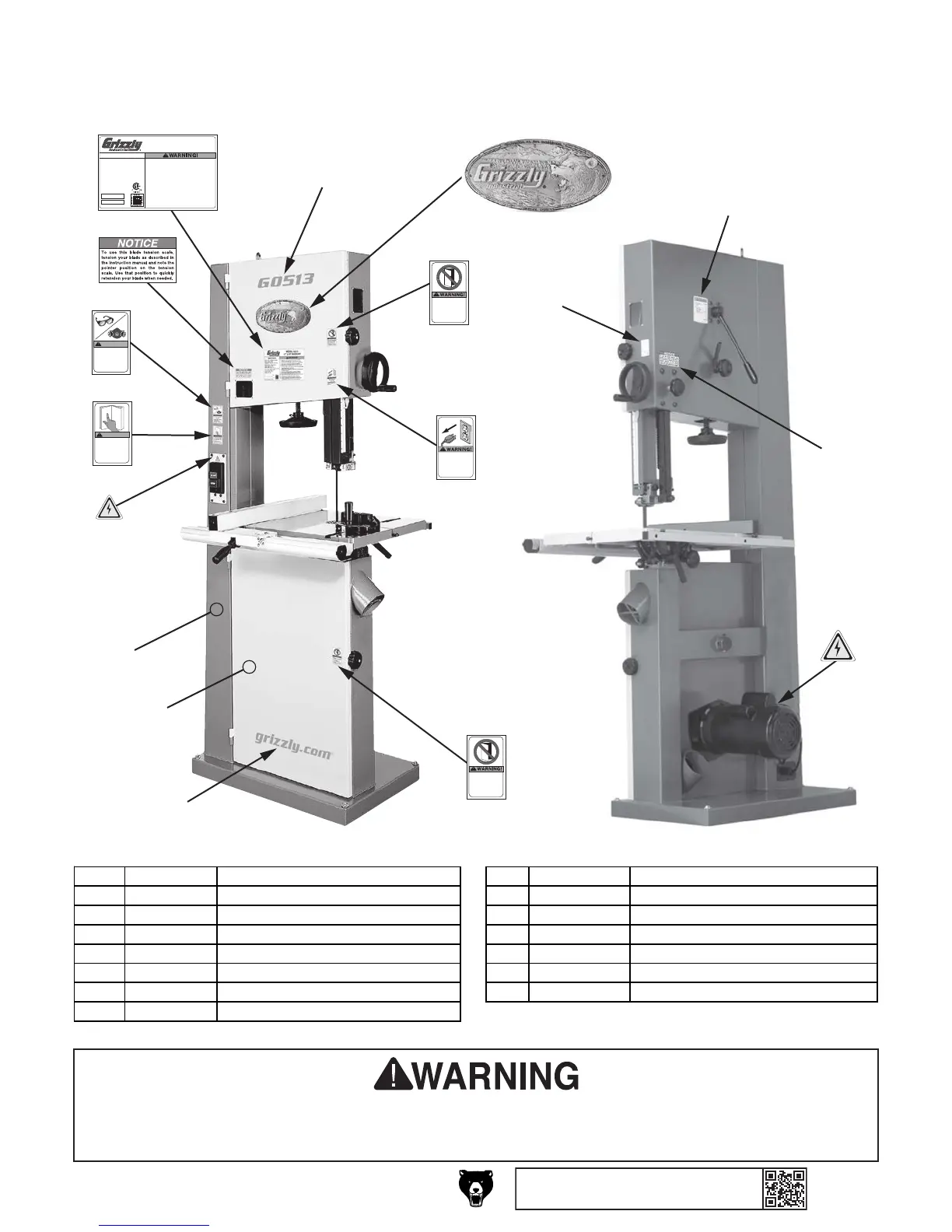

Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
REF PART # DESCRIPTION REF PART # DESCRIPTION
177V2 P0513177V2 MACHINE ID LABEL V2.07.18 186 P0513186 MODEL NUMBER LABEL
178 P0513178 ELECTRICITY LABEL 187 P0513187 TOUCH-UP PAINT, GRIZZLY GREEN
179 P0513179 GLASSES/RESPIRATOR LABEL 188 P0513188 TOUCH-UP PAINT, LIGHT GRAY
180 P0513180 READ MANUAL LABEL 189 P0513189 GUIDE POST ADJUST LABEL
181 P0513181 DOOR WARNING LABEL 191 P0513191 BLADE TENSION SCALE LABEL
183 P0513183 DISCONNECT POWER LABEL 195 P0513195 GUIDE POST LOCK LABEL
184 P0513184 GRIZZLY NAMEPLATE-SMALL 197 P0513197 GRIZZLY.COM LABEL
185 P0513185 SAW TENSION LABEL
G0513 Labels
181
184
186
177V2
179
180
188
187
• 1:1 Sizing (Labels are
actual size)
• Labels must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
DO NOT REPRODUCE OR CHANGE THIS ARTWORK
Grizzly will not accept labels changed without approval. If
artwork changes are required, contact us immediately at manuals@grizzly.com.
.
grizzly.com
***
COLOR CODES
GRIZZLY GREEN PANTONE 568C
DANGER
PANTONE 485 C or RAL 3001
PANTONE 151 C or RAL 2005WARNING
GRIZZLY LOGO RED
PANTONE 711C or RAL 3020
Note: Labels marked with ### must have individual letters/numbers. DO NOT print with clear background.
• Scale= 1:1 (unless otherwise noted) • Labels MUST be made of chemical-resistant material
G0513 Machine Labels
(08/29/18)
Note: Labels marked *** have changed since last sent.
###
###
grizzly.com
MODEL G0513
17" 2 HP BANDSAW
Motor: 2 HP, 110V/220V, 1-PH, 60 Hz
Motor Prewired: 220V
Amp Draw: 10A at 220V; 20A at 110V
Table Size: 17" x 17"
Blade Speeds: 1700 & 3500 FPM
Blade Length: 131-1/2"
Blade Width Range: 1/8" – 1"
Max. Cutting Width Left of Blade: 16-1/4"
Max. Cutting Height: 12-1/8"
Table Tilt: 10˚L ⁄ 45˚R
Weight: 266 lbs.
Specifications
Date
SN
Mfd. for Grizzly in Taiwan
To reduce risk of serious injury when using this machine:
1. Read & understand owner’s manual before operating.
2. Never touch moving blade—keep hands out of blade path.
3. Always wear approved eye protection and respirator.
4. Only remove jammed cutoff pieces when blade is stopped.
5. Use push stick or holding jig to cut small or narrow pieces.
6. Disconnect power before changing blades or adjusting.
7. Maintain adjustment of blade tension, tracking, & guides.
8. Keep upper guide adjusted to just clear the workpiece.
9. Hold workpiece firmly against table to maintain control.
10. Only run saw with wheel covers closed & all guards in place.
11. Never reach under table while blade is in motion.
12. Secure/remove loose clothing and long hair.
13. DO NOT expose to rain or use in wet locations.
14. DO NOT operate under influence of drugs or alcohol.
15. Prevent unauthorized use by children or untrained users;
restrict access or disable machine when unattended.
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY!
DO NOT REPRODUCE OR CHANGE THIS ARTWORK
WITHOUT WRITTEN APPROVAL!
Grizzly will not accept labels changed without approval.
If
artwork changes are required, contact us immediately at
manuals@grizzly.com
.
G0513
178
Model G8588
185
MODEL G0513
17" 2 HP BANDSAW
Motor: 2 HP, 110V/220V, 1-PH, 60 Hz
Motor Prewired: 220V
Amp Draw: 10A at 220V; 20A at 110V
Table Size: 17" x 17"
Blade Speeds: 1700 & 3500 FPM
Blade Length: 131-1/2"
Blade Width Range: 1/8" – 1"
Max. Cutting Width Left of Blade: 16-1/4"
Max. Cutting Height: 12-1/8"
Table Tilt: 10˚L ⁄ 45˚R
Weight: 266 lbs.
Specifications
Date
SN
Mfd. for Grizzly in Taiwan
To reduce risk of serious injury when using this machine:
1. Read & understand owner’s manual before operating.
2. Never touch moving blade—keep hands out of blade path.
3. Always wear approved eye protection and respirator.
4. Only remove jammed cutoff pieces when blade is stopped.
5. Use push stick or holding jig to cut small or narrow pieces.
6. Disconnect power before changing blades or adjusting.
7. Maintain adjustment of blade tension, tracking, & guides.
8. Keep upper guide adjusted to just clear the workpiece.
9. Hold workpiece firmly against table to maintain control.
10. Only run saw with wheel covers closed & all guards in place.
11. Never reach under table while blade is in motion.
12. Secure/remove loose clothing and long hair.
13. DO NOT expose to rain or use in wet locations.
14. DO NOT operate under influence of drugs or alcohol.
15. Prevent unauthorized use by children or untrained users;
restrict access or disable machine when unattended.
G0513
***
COLOR CODES
DANGER
PANTONE 485 C or RAL 3001
Note: Labels marked with ### must have individual letters/numbers. DO NOT print with clear background.
• Scale= 1:1 (unless otherwise noted) • Labels MUST be made of chemical-resistant material
G0513 Machine Labels
(08/29/18)
Note: Labels marked *** have changed since last sent.
178
181
189
G0513 Series
Generic Labels
(7/12/13)
• 1:1 Sizing (Labels are
actual size)
• Labels must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK
WITHOUT WRITTEN APPROVAL!
Grizzly will not accept labels changed without approval. If
artwork changes are required, contact us immediately at manuals@grizzly.com.
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com.
WARNING!
WARNING!
EYE/LUNG INJURY
HAZARD!
Always wear safety
glasses and a
respirator when
using this machine.
INJURY/SHOCK
HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.
INJURY HAZARD!
Do not open door
while machine is
connected to power
or blade is in motion.
183
G0513 Series
Generic Labels
(7/12/13)
• 1:1 Sizing (Labels are
actual size)
• Labels must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK
WITHOUT WRITTEN APPROVAL!
Grizzly will not accept labels changed without approval. If
artwork changes are required, contact us immediately at manuals@grizzly.com.
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com.
WARNING!
WARNING!
EYE/LUNG INJURY
HAZARD!
Always wear safety
glasses and a
respirator when
using this machine.
INJURY/SHOCK
HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.
INJURY HAZARD!
Do not open door
while machine is
connected to power
or blade is in motion.
G0513 Series
Generic Labels
• 1:1 Sizing (Labels are
actual size)
• Labels must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
DO NOT REPRODUCE OR CHANGE THIS ARTWORK
Grizzly will not accept labels changed without approval. If
artwork changes are required, contact us immediately at manuals@grizzly.com.
G0513 Series
Generic Labels
(7/12/13)
• 1:1 Sizing (Labels are
actual size)
• Labels must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK
WITHOUT WRITTEN APPROVAL!
Grizzly will not accept labels changed without approval. If
artwork changes are required, contact us immediately at manuals@grizzly.com.
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com.
WARNING!
WARNING!
EYE/LUNG INJURY
HAZARD!
Always wear safety
glasses and a
respirator when
using this machine.
INJURY/SHOCK
HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.
INJURY HAZARD!
Do not open door
while machine is
connected to power
or blade is in motion.
G0513 Series
Generic Labels
(7/12/13)
• 1:1 Sizing (Labels are
actual size)
• Labels must be made of
oil-resistant material
COPYRIGHT © GRIZZLY INDUSTRIAL, INC.
FOR GRIZZLY MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK
WITHOUT WRITTEN APPROVAL!
Grizzly will not accept labels changed without approval. If
artwork changes are required, contact us immediately at manuals@grizzly.com.
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com
WARNING!
WARNING!
EYE/LUNG INJURY
HAZARD!
Always wear safety
glasses and a
respirator when
using this machine.
INJURY/SHOCK
HAZARD!
Disconnect power
before adjustments,
maintenance, or
service.
INJURY HAZARD!
Do not open door
while machine is
connected to power
or blade is in motion.
G0513 Series
Generic Labels
(7/12/13)
• 1:1 Sizing (Labels are
actual size)
• Labels must be made of
oil-resistant material
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual,
call (800) 523-4777 or
go to www.grizzly.com.
WARNING!
WARNING!
EYE/LUNG INJURY
INJURY/SHOCK
INJURY HAZARD!
Do not open door
while machine is
connected to power
or blade is in motion.
191
195
197
