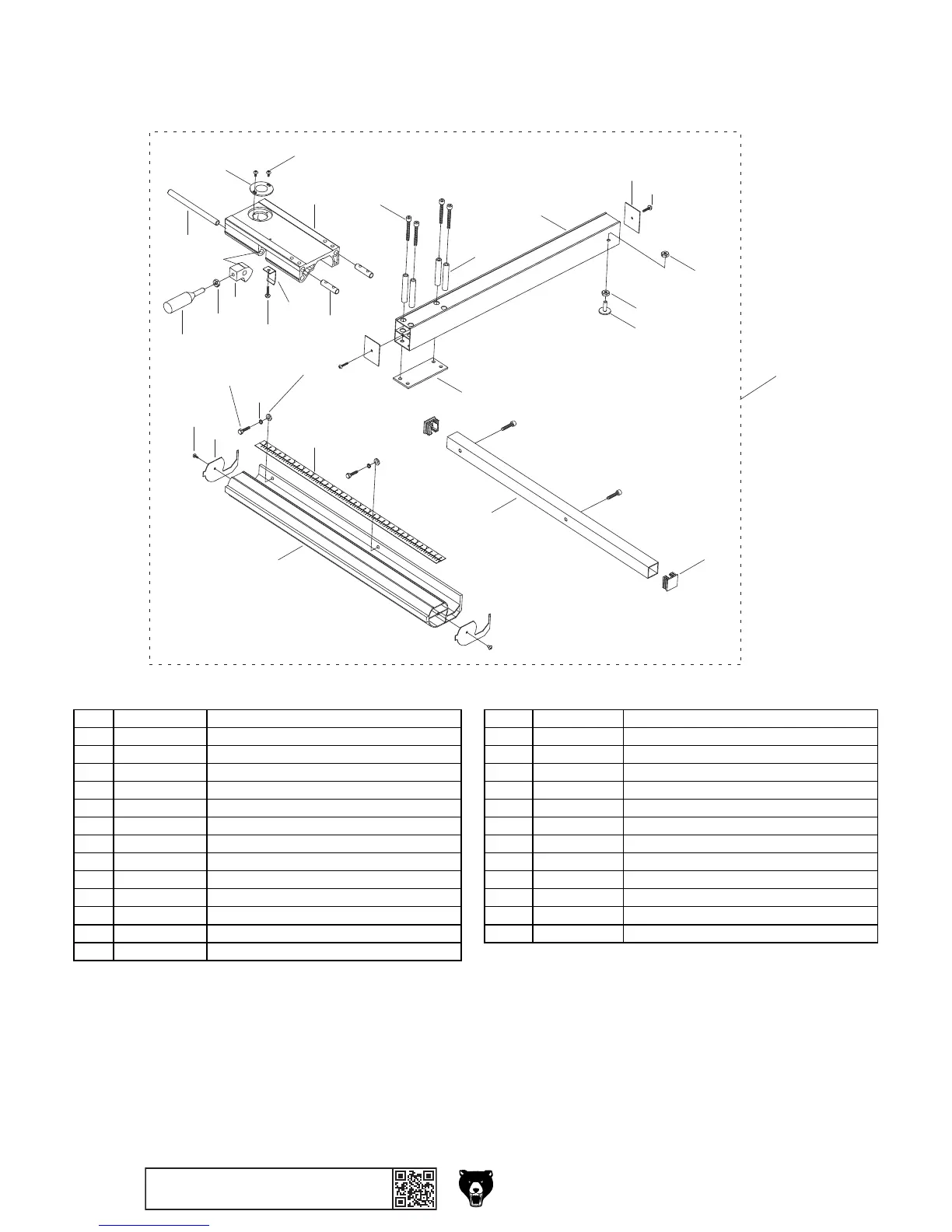

G0513 & G0513ANV Fence
REF PART # DESCRIPTION REF PART # DESCRIPTION
125 P0513125 FENCE ASSEMBLY W/RAILS 214 P0513214 REAR FENCE RAIL
201 P0513201 FRONT FENCE RAIL 215 P0513215 HEX NUT M6-1
202 P0513202 FENCE BASE 216 P0513216 FLANGE SCREW M4-.7 X 6
203 P0513203 ALIGNMENT SHAFT 217 P0513217 FRONT RAIL END CAP
204 P0513204 LOCK BLOCK SHAFT 218 P0513218 FENCE END CAP
205 P0513205 SPRING PLATE 219 P0513219 REAR RAIL END CAP
206 P0513206 SPACER PLATE 220 P0513220 TAP SCREW M3.5 X 8
207 P0513207 FENCE 221 P0513221 FENCE SCALE
208 P0513208 SLEEVE 222 P0513222 HEX NUT M6-1
209 P0513209 FENCE LOCK HANDLE 223 P0513223 LOCK WASHER 6MM
210 P0513210 RAIL PAD 225 P0513225 HEX BOLT M6-1 X 20
211 P0513211 CONVEX WINDOW 226 P0513226 FLANGE SCREW M4-.7 X 10
212 P0513212 CAP SCREW M6-1 X 55 227 P0513227 FLAT WASHER 6MM
213 P0513213 LOCK CAM
204
213
215
209
226
205
203
202
216
211
212
208
207
218
220
222
222
210
206
214
125
219
201
221
227
225
223
220
217
