60
Factory setting
User name:admin
Password: admin
When user name and password have been entered, a Java
Runtime Environment application starts up in the CU 351,
provided that it has been installed on the computer in question.
If this is not the case, but the computer is connected to Internet,
then use the link on the screen to download and install the Java
Runtime Environment application.

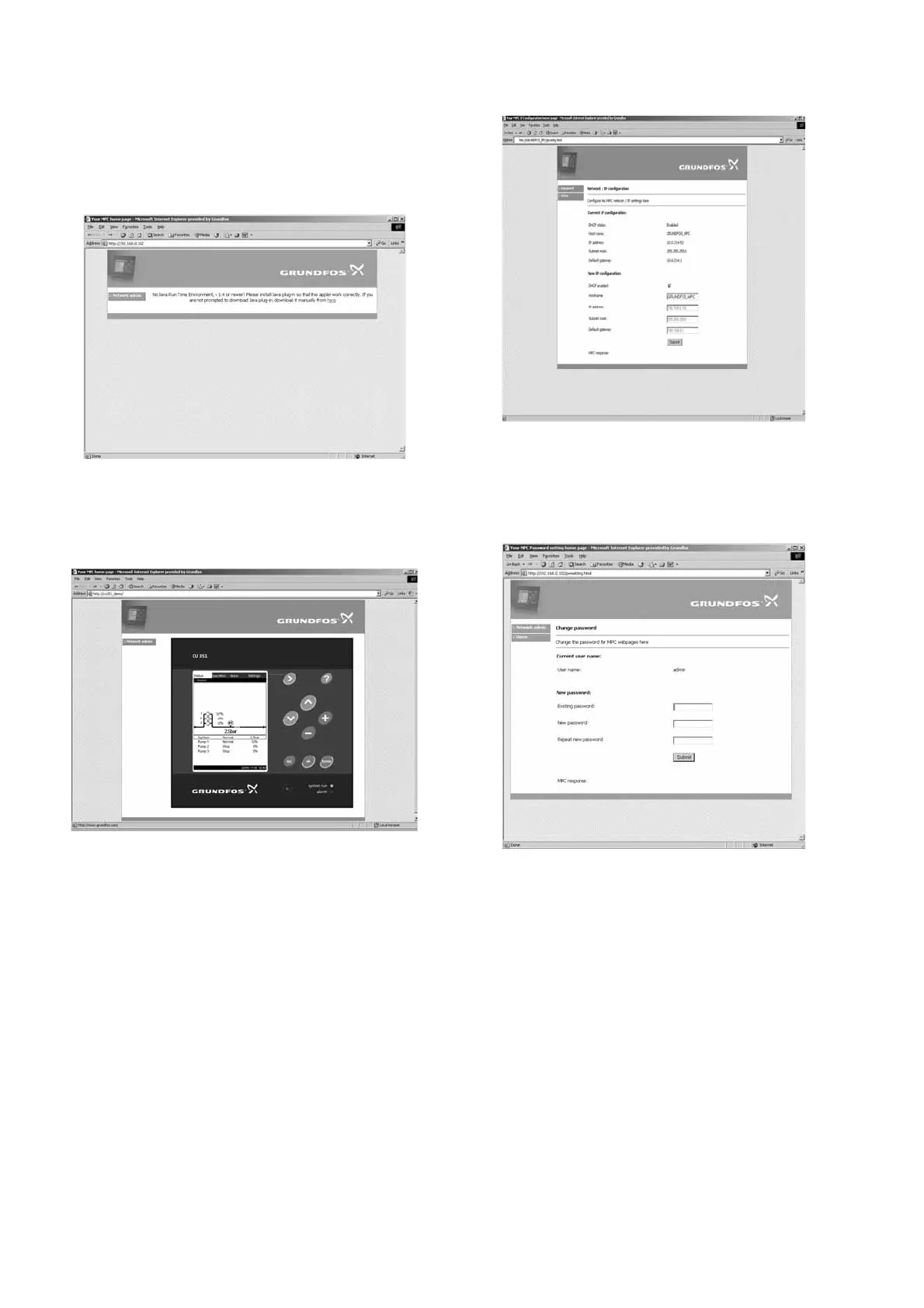

Fig. 110 Display with link to the JavaScript
®
program
The Java Runtime Environment application will then export the
CU 351 user interface (including display and operating panel) to
the computer screen. It is now possible to monitor and control the
CU 351 from the computer.
Fig. 111 Network setting
Change of network setting
When connection to the web server of the CU 351 has been
established, it is possible to change the network setting.
Fig. 112 Change of network setting
1. Press the icon >Network admin.
2. Enter the changes.
3. Press Submit to activate the changes.
Change of password
Fig. 113 Change of password
1. Press the icon >Change password.
2. Enter the new password.
3. Press Submit to activate the new password.
11.8.2 GENIbus
By installing a GENIbus module in the CU 351 it is possible to
connect the system to an external network. The connection can
take place via a GENIbus-based network or a network based on
another fieldbus protocol via a gateway. See examples in fig. 107.
For further information, contact Grundfos.
The gateway may be a Grundfos CIU communication interface or
a third-party gateway. For further information on the CIU, see
WebCAPS, or contact Grundfos.
TM03 2049 3505TM03 2047 3505
TM03 2050 3505TM03 2051 3505
