Chapter 3 G Command
73
I Programming
G111
Intermittent
feed
Full-circle helical
rough milling
Rapid feed
Round groove internal rough
milling CW
G112 Feed Full-circle fine milling Rapid feed
Full-circle internal fine milling
CCW
G113 Feed Full-circle fine milling Rapid feed
Full-circle internal fine milling
CW
G114 Feed Full-circle fine milling Rapid feed External round fine milling CCW
G115 Feed Full-circle fine milling Rapid feed External round fine milling CW
G116 Outer rough million CCW
G117
Intermittent
feed
Outer rough milling Rapid feed
Outer rough million CW
G132 Rectangle rough million CCW
G133
Intermittent
feed
Rectangle rough
milling
Rapid feed
Rectangle rough million CW
G134
Intermittent
feed
Rectangle rough
milling
Rapid feed
Rectangle groove internal rough
milling CCW
G135
Intermittent
feed
Rectangle rough
milling
Rapid feed
Rectangle groove internal rough
milling CW
G136 Feed
Rectangle fine
milling
Rapid feed
Rectangle groove internal fine
milling CCW
G137 Feed
Rectangle fine
milling
Rapid feed
Rectangle groove internal fine
milling CW
G138 Feed
Rectangle fine
milling
Rapid feed
Rectangle groove external fine
milling CCW
G139 Feed
Rectangle fine
milling
Rapid feed
Rectangle groove external fine
milling CW
3.24.1.2 Canned circle explanations

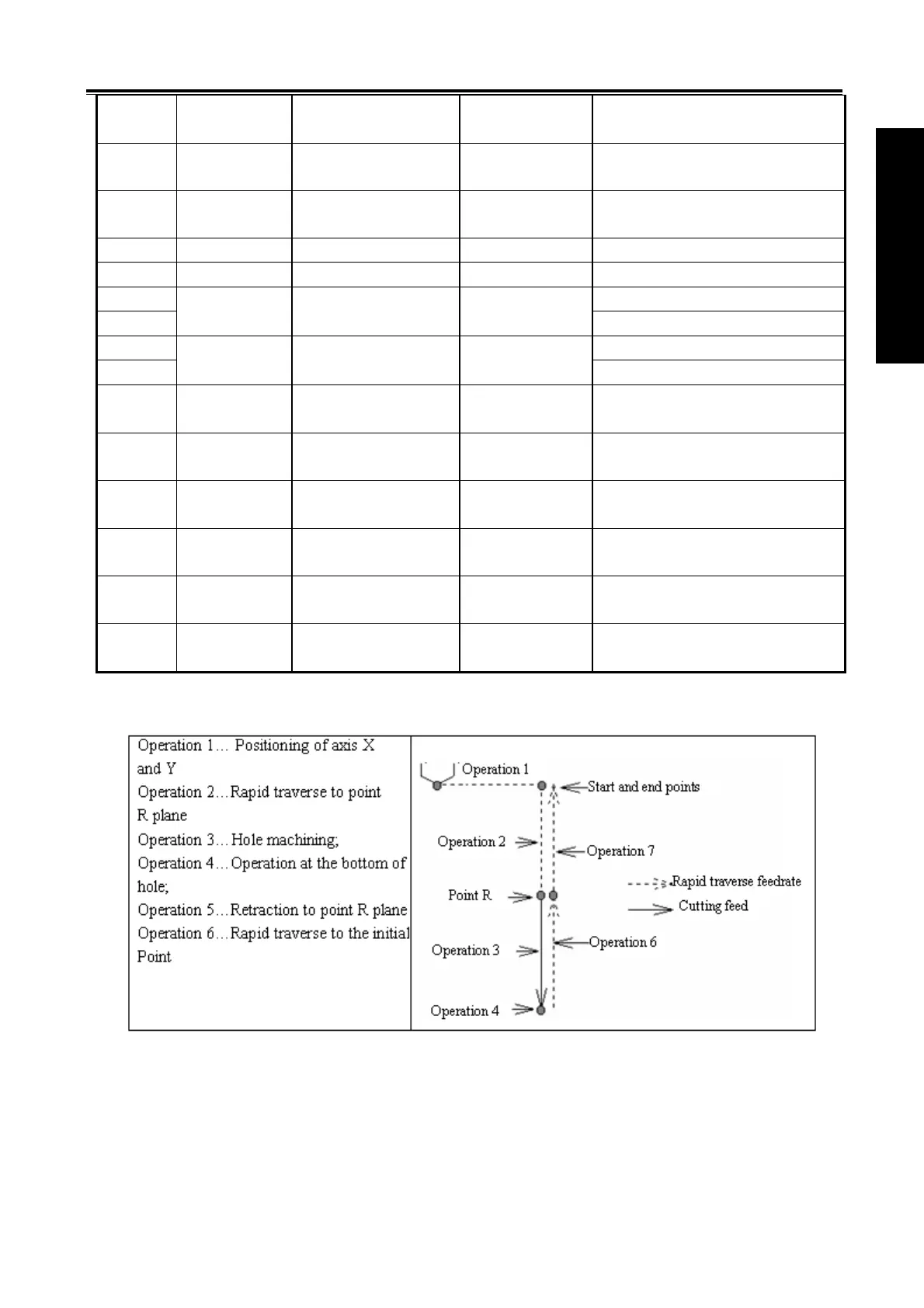

Generally, a canned cycle consists of a sequence of the following operations, see the right figure.
3.24.1.3 G90/G91
The data mode corresponded with G90 and G91 are different. The point R plane and the absolute
position machined at the bottom of the hole are specified by R and Z values, when the command is G 90.
The specified R value is the distance relative to the initial plane, and the Z value is the distance relative to
the R point plane when the command is G91. See the following figure.
