Chapter 3 G Command
79
I Programming
Related Explanation:
The command Q or P is disabled in this cycle, but its value will be saved as canned cycle modal value.
3.24.2.5 Drilling Cycle, Counter Boring Cycle G82
Format：G98/G99 G82 X_ Y_ R_ Z_ P_ F_ L_ ；
Function: Cutting feed is performed to the bottom of the hole. Hole depth precision is added when
the dwell is performed, and then the tool is retracted from the bottom of the hole at rapid
traverse.
Explanation: For the command explanation of these canned cycles, see the Table 3-2
Cycle process:
(1) Positioning to the XY plane level at the rapid traverse;
(2) Down to the point R plane at the rapid traverse;
(3) Cutting feed to the bottom of a hole
(4) Dwell for P time if it is commanded.
(5) Returning to the initial point or point R plane according to G98 or G99 at the rapid traverse;

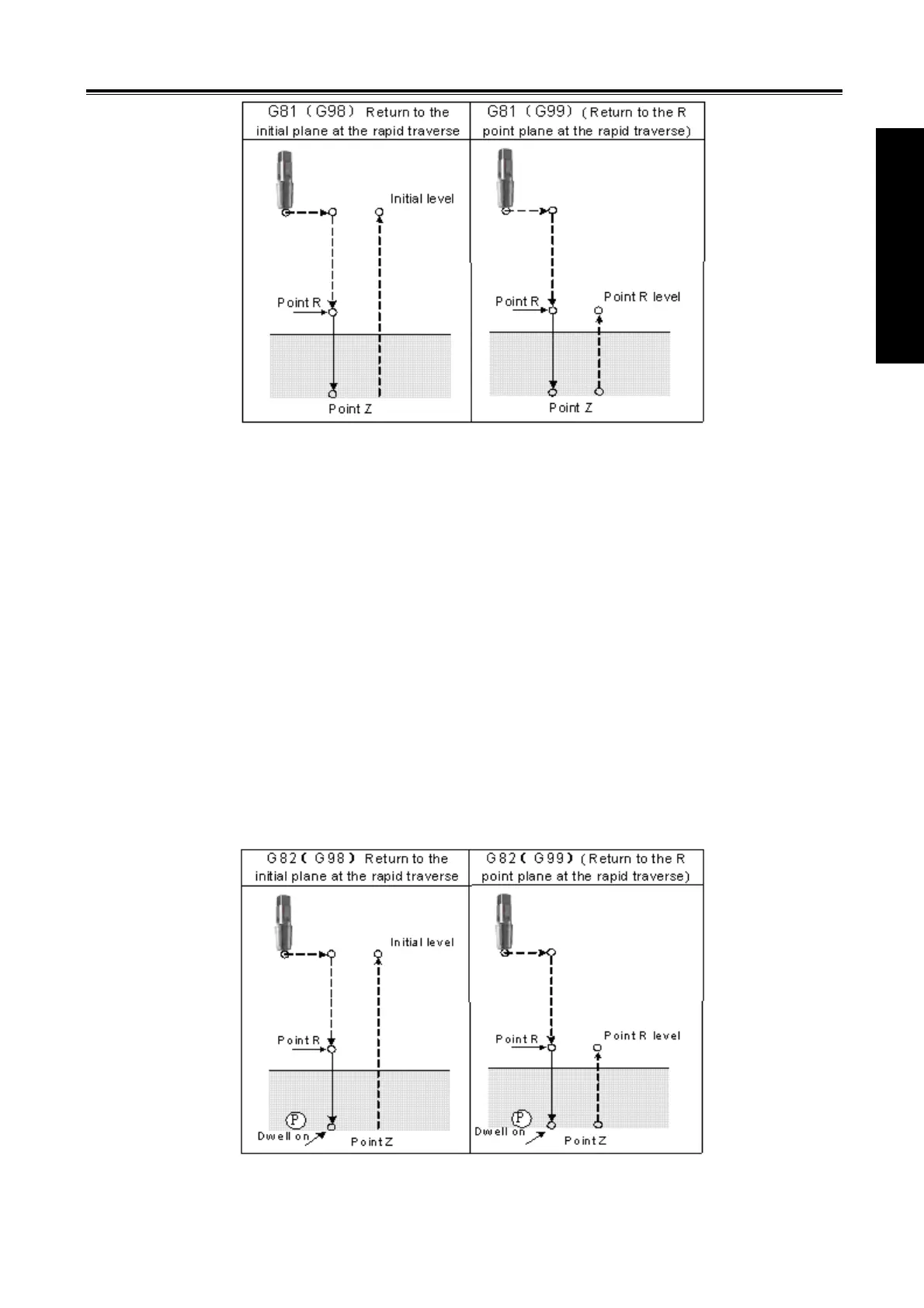

Command Path:
Related Explanation:
(1) They are basically the same as G81 (drilling and spot-drilling machining), it is up after dwell at the
bottom of a hole only (the dwell time is specified by P, the dwell will not be executed if it is not specified, and
To Next Page
