Remove the Printer Mechanism Assembly
from the Base Assembly
REMEMBER TO USE ESD PRECAUTIONS
To remove the Printer Mechanism Assembly from the Base Assembly:
1. Remove four (4) #6 Thread Forming Screws holding the
Printer Mechanism
Assembly to the Base Assembly.
2. Rock the Printer Mechanism Assembly
and then slide it forward and out from
the Base Assembly. Slacker springs will separate from the bushings.

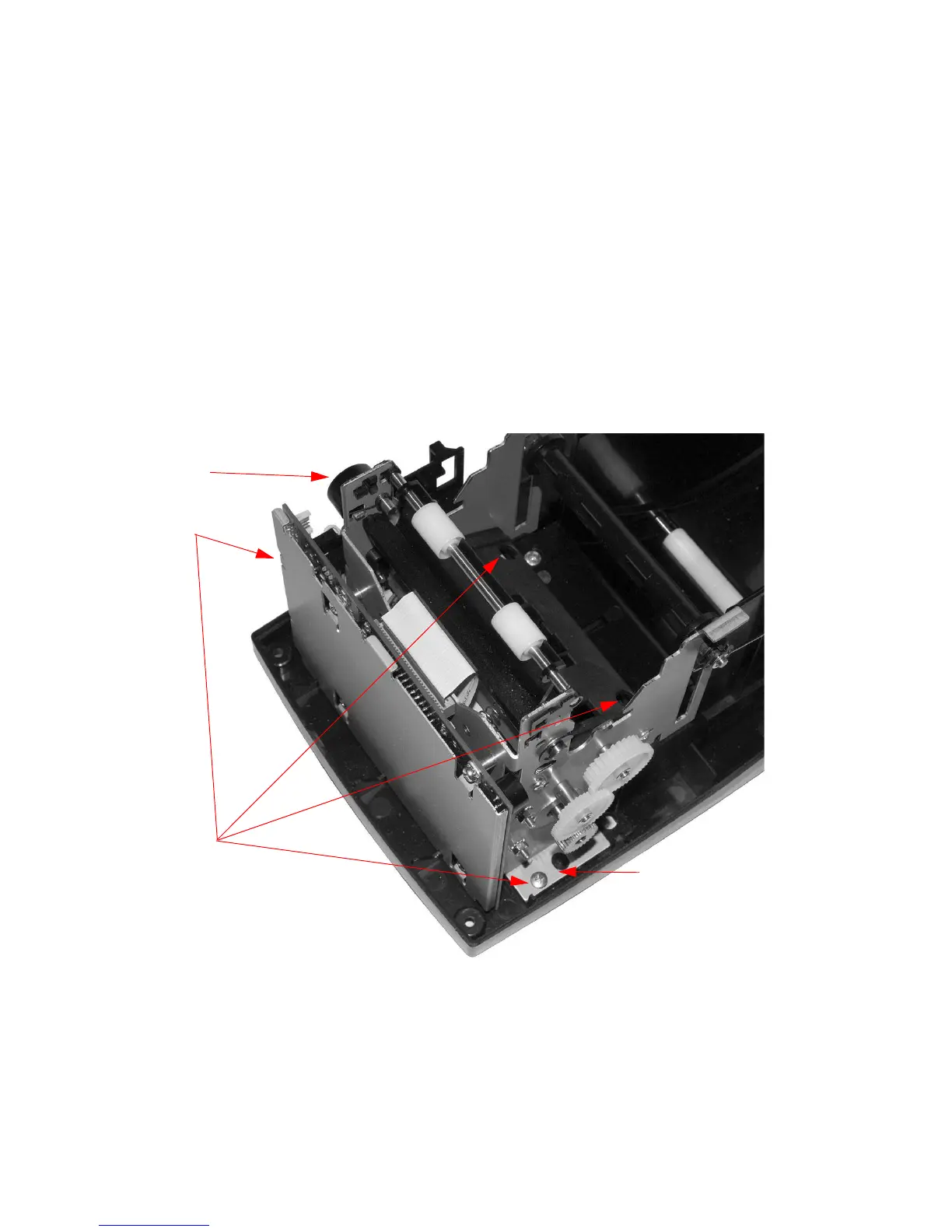

Figure 7-8. Remove Printer Mechanism Assembly from Base Assembly
# 6 Screws
Printer
Mechanism
Make sure you
don’t lose or forget
to replace the
ground bracket
