Remove Stacker Guide Assembly from the
Printer Mechanism Assembly
REMEMBER TO USE ESD PRECAUTIONS
1. Unhook Left/Right Validation Compensatio
n Springs and remove springs.

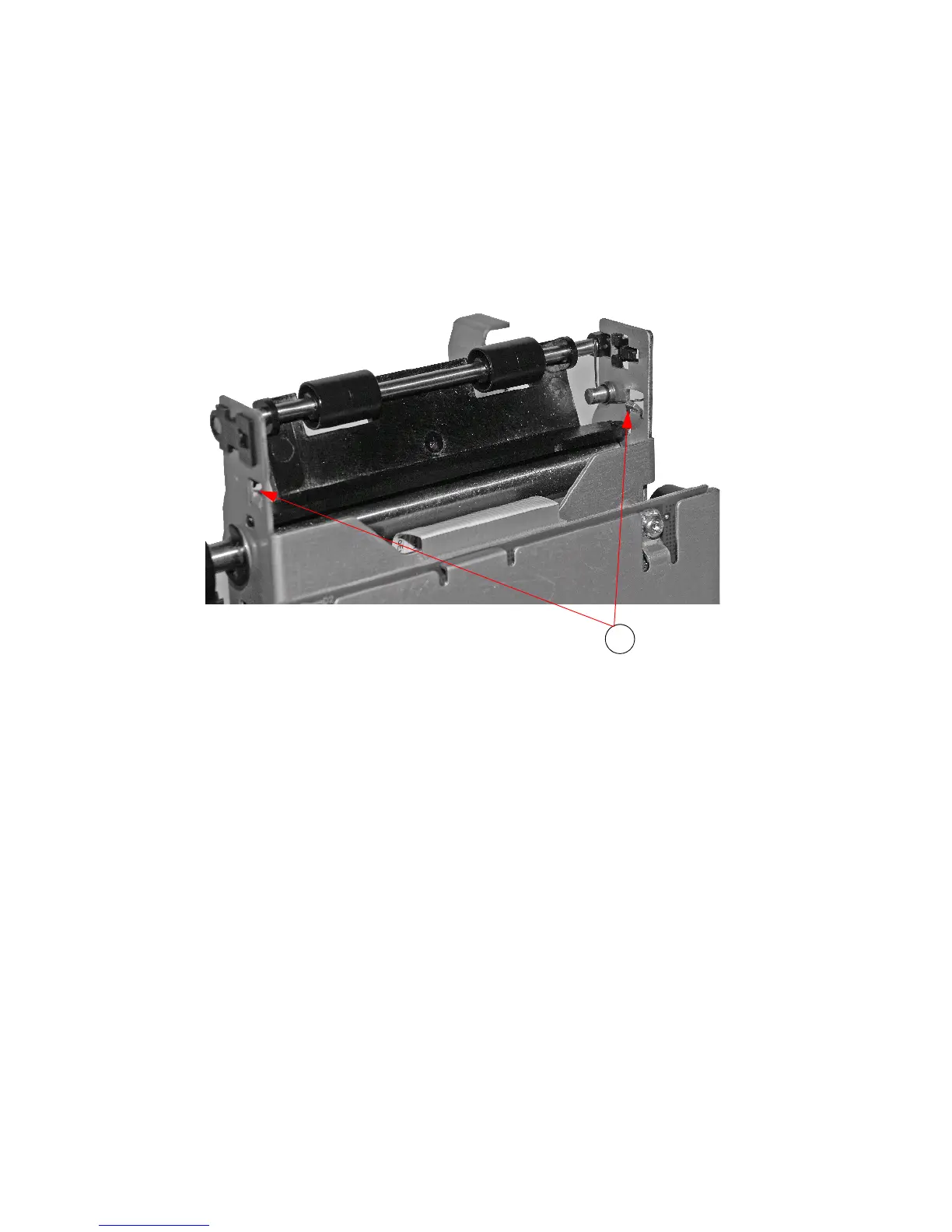

Figure 7-18. Unhook Validation Springs and Remove.
2. Slide Stacker Shaft to the right to remove.
3. Remove two (2) Transport Rollers.
