7-20 GTECH Technical Training and Support Services
Remove Platen from the Knife/Stacker
Assembly
REMEMBER TO USE ESD PRECAUTIONS
To remove the platen from the knife/stacker assembly:
1. Remove the Platen Gear.
2. Loosen #4 thread forming screw -
typ left/right sides.
3. Remove #4 thread forming sc
rew - typ left/right sides.
4. Remove Bearing Retainer - typ left/right sides.
5. Slide Platen, Stripper, and L/R bearings
forward to remove from side plates.

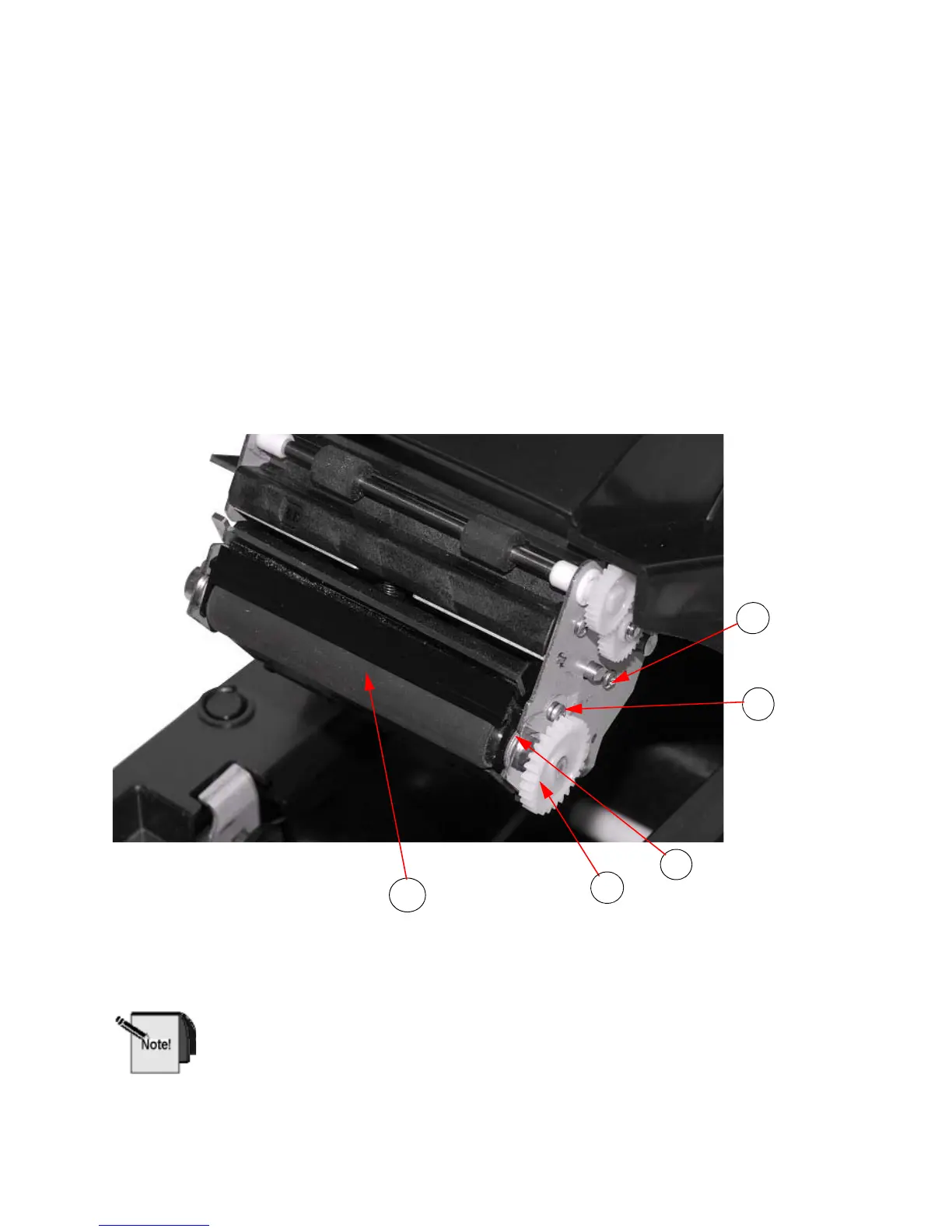

Figure 7-20. Remove Platen from Knife
/Stacker Assembly
When installing Platen, Stripper, and Bearings ensure the Stripper
locating bosses are aligned with mating holes in the L/R Side Plates and
then tighten screws. Platen should spin freely when assembly is
completed.
