The GIS-R6 unit

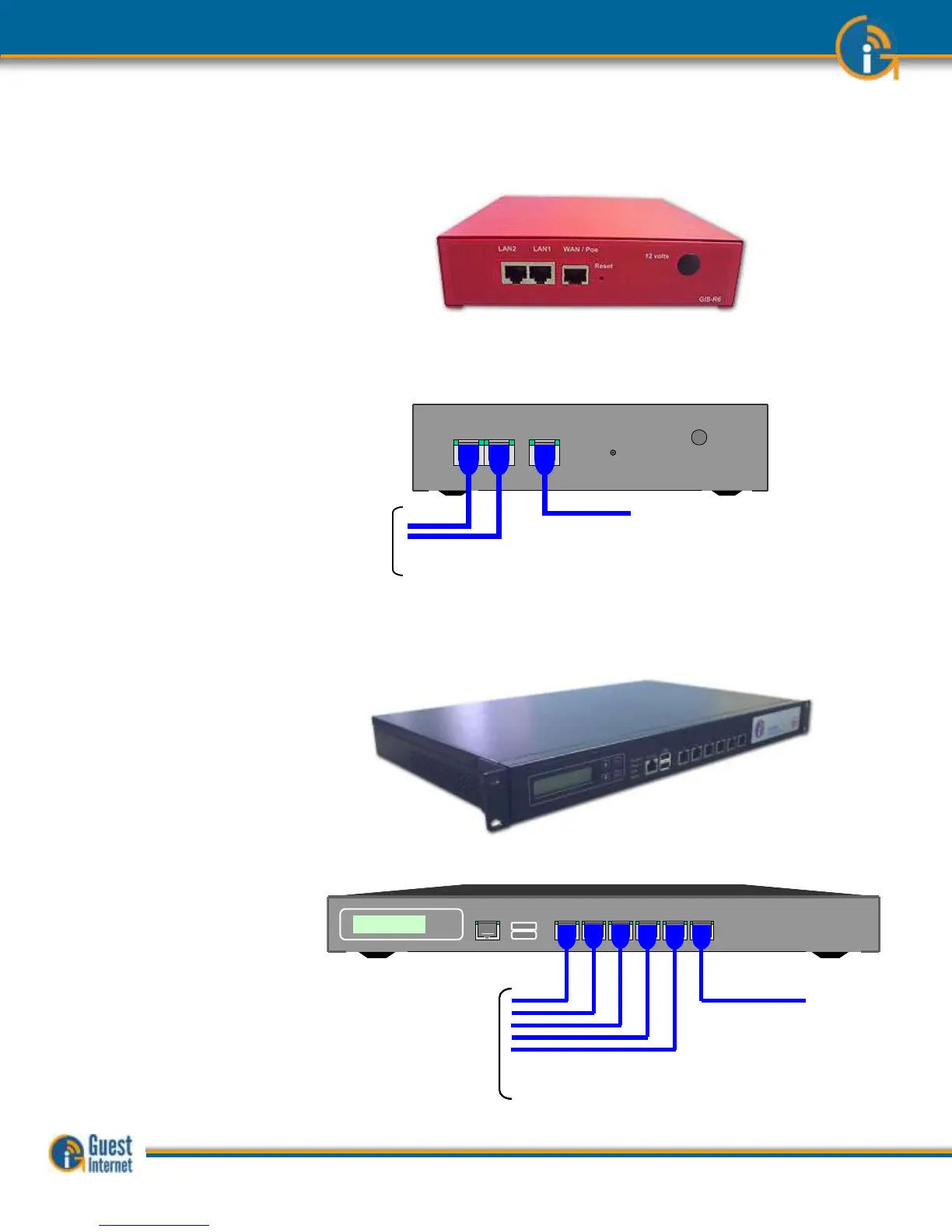

The GIS-R6 is a hotspot gateway for up to 200 concurrent users. The GIS-R6 gateway
product is shown below.
The GIS-R6 gateway has
three Ethernet connectors.
One is labeled Internet and is
connected to the
DSL/cable/T1 router. Two
connectors are labeled LAN1
and LAN2. Any network
device or computer can be
connected to these ports. If
more LAN ports are required
then a switch can be
connected.
The GIS-R16 unit
The GIS-R16 is a hotspot gateway for up to 500 concurrent users The GIS-R16 gateway
product is shown below.
The GIS-R16 gateway has six
Ethernet connectors. One is
labeled ‘6’ and is connected
to the DSL/cable/T1 router.
Five connectors are labeled
‘1’ to ‘5’. Any network device
or computer can be
connected to these ports. If
more LAN ports are required
then a switch can be
connected.
Internet /PoELAN1
Reset
GIS-R6
LAN2 12 volts
Connection to the DSL router for Internet
access Powered via PoE
Connection to switches, computers and
wireless access points
Internet /PoELAN1
Reset
GIS-R6
LAN2 12 voltsInternet /PoELAN1
Reset
GIS-R6
LAN2 12 volts
Connection to the DSL router for Internet
access Powered via PoE
Connection to switches, computers and
wireless access points
Connection to the
DSL/cable/T1/T2 router for
Internet access
Connection to switches, computers
and wireless access points
Connection to the
DSL/cable/T1/T2 router for
Internet access
Connection to switches, computers
and wireless access points
