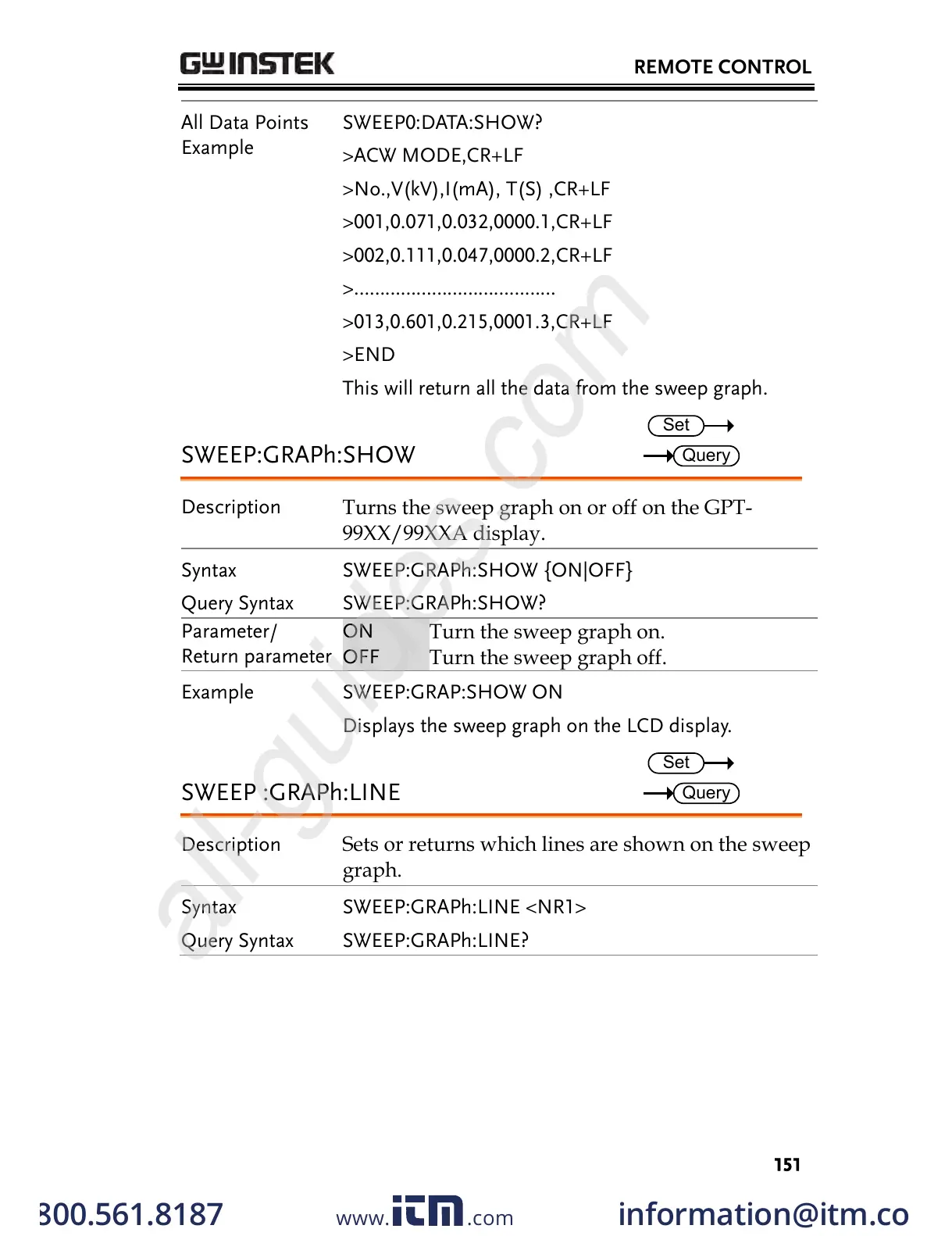

REMOTE CONTROL
151
All Data Points
Example
SWEEP0:DATA:SHOW?
>ACW MODE,CR+LF
>No.,V(kV),I(mA), T(S) ,CR+LF
>001,0.071,0.032,0000.1,CR+LF
>002,0.111,0.047,0000.2,CR+LF
>…………………………………
>013,0.601,0.215,0001.3,CR+LF
>END
This will return all the data from the sweep graph.
SWEEP:GRAPh:SHOW
Set
Query
Description
Turns the sweep graph on or off on the GPT-
99XX/99XXA display.
Syntax
Query Syntax
SWEEP:GRAPh:SHOW {ON|OFF}
SWEEP:GRAPh:SHOW?
Parameter/
Return parameter
ON
Turn the sweep graph on.
OFF
Turn the sweep graph off.
Example
SWEEP:GRAP:SHOW ON
Displays the sweep graph on the LCD display.
SWEEP :GRAPh:LINE
Set
Query
Description
Sets or returns which lines are shown on the sweep
graph.
Syntax
Query Syntax
SWEEP:GRAPh:LINE <NR1>
SWEEP:GRAPh:LINE?
