Note
The MANU number can only be chosen in VIEW
status. If in the EDIT status, switch to the VIEW
status by pressing the EDIT/SAVE or ESC key.

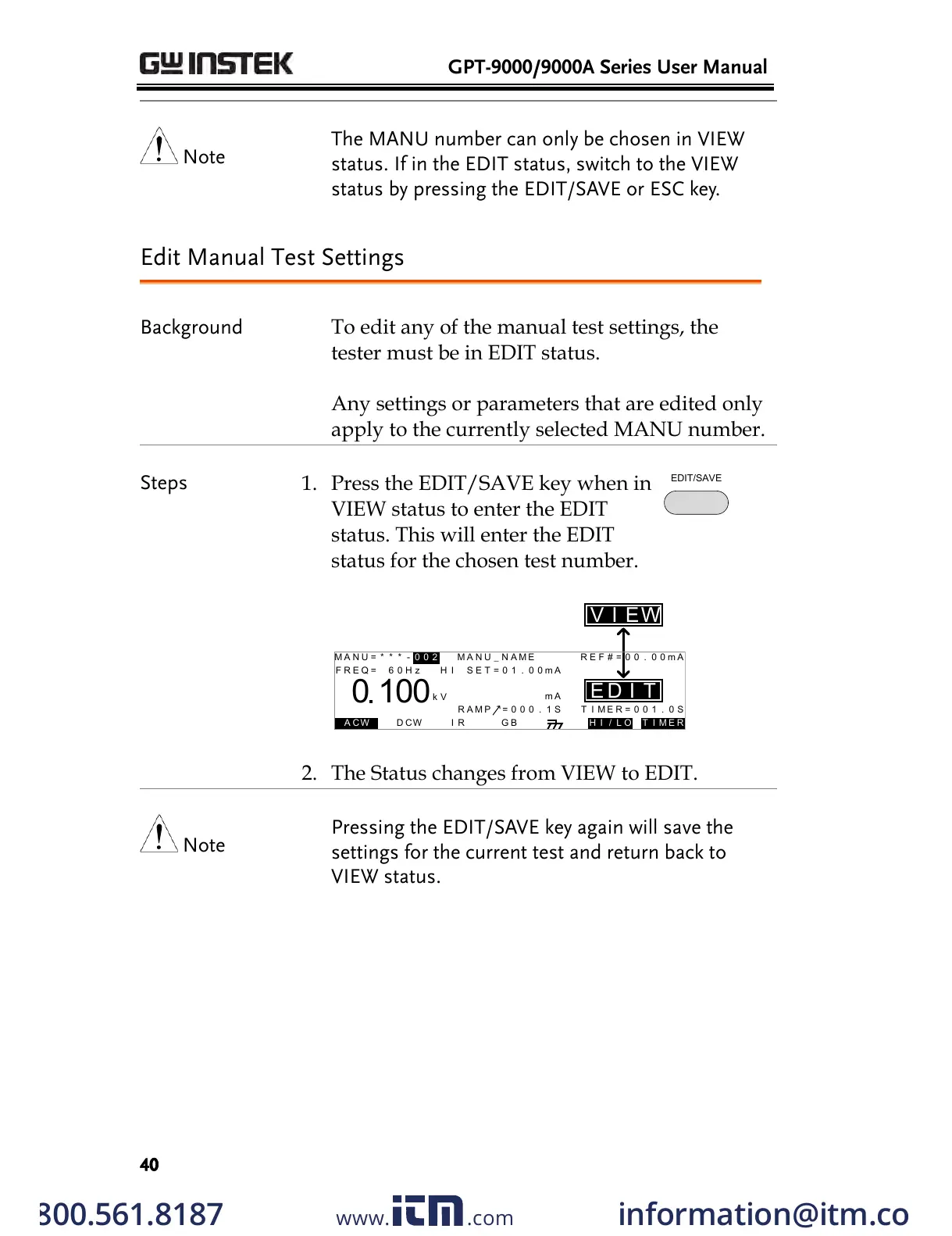

Edit Manual Test Settings
Background
To edit any of the manual test settings, the
tester must be in EDIT status.
Any settings or parameters that are edited only
apply to the currently selected MANU number.
Steps
1. Press the EDIT/SAVE key when in
VIEW status to enter the EDIT
status. This will enter the EDIT
status for the chosen test number.
EDIT/SAVE
I R G B A CW D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
EIV W
m A
2. The Status changes from VIEW to EDIT.
Note
Pressing the EDIT/SAVE key again will save the
settings for the current test and return back to
VIEW status.
