GW Instek GPT-9000 series - Automatic Test Management

OPERATION
81

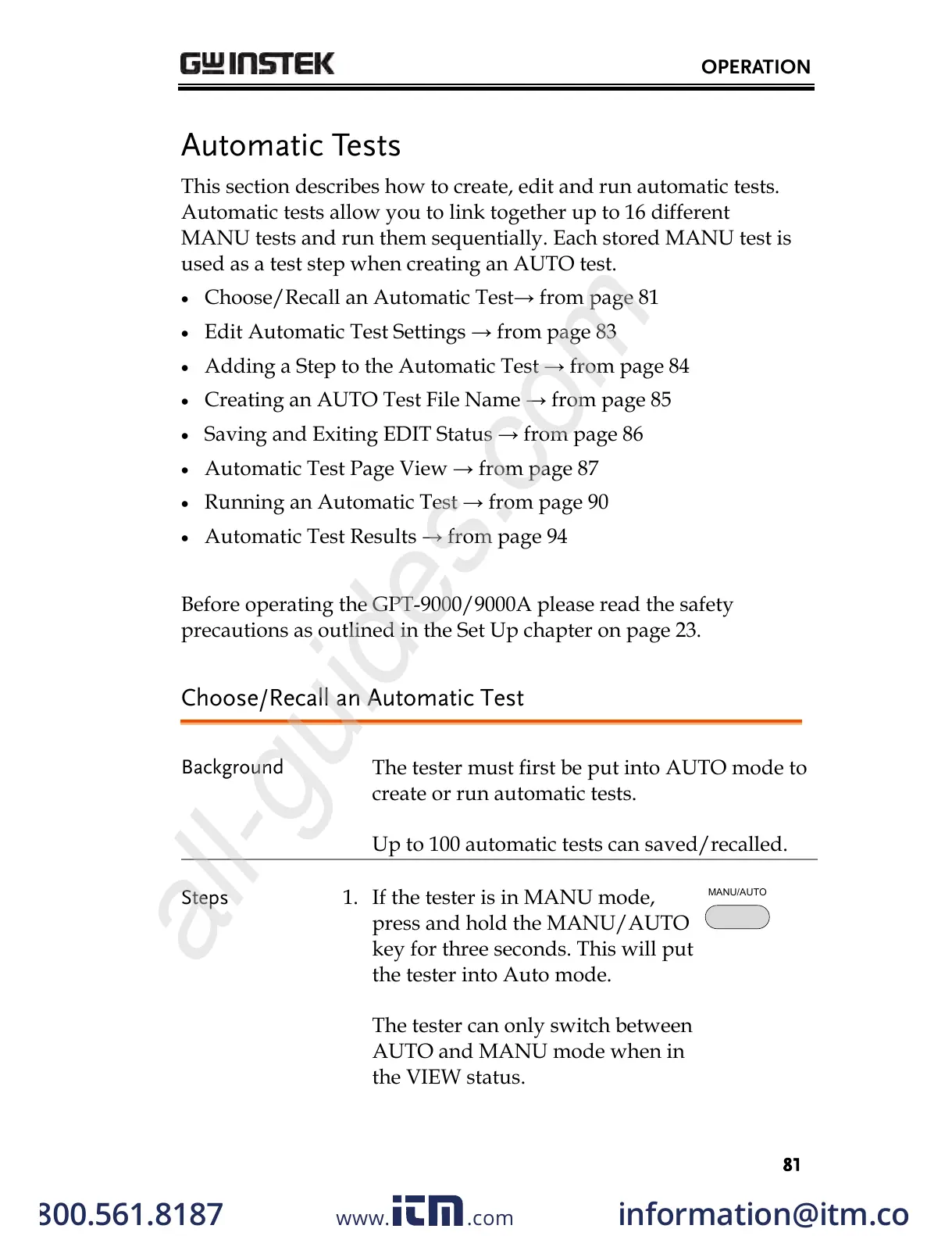

Automatic Tests
This section describes how to create, edit and run automatic tests.
Automatic tests allow you to link together up to 16 different
MANU tests and run them sequentially. Each stored MANU test is
used as a test step when creating an AUTO test.
 Choose/Recall an Automatic Test→ from page 81
 Edit Automatic Test Settings → from page 83
 Adding a Step to the Automatic Test → from page 84
 Creating an AUTO Test File Name → from page 85
 Saving and Exiting EDIT Status → from page 86
 Automatic Test Page View → from page 87
 Running an Automatic Test → from page 90
 Automatic Test Results → from page 94
Before operating the GPT-9000/9000A please read the safety
precautions as outlined in the Set Up chapter on page 23.
Choose/Recall an Automatic Test
Background
The tester must first be put into AUTO mode to
create or run automatic tests.
Up to 100 automatic tests can saved/recalled.
Steps
1. If the tester is in MANU mode,
press and hold the MANU/AUTO
key for three seconds. This will put
the tester into Auto mode.
The tester can only switch between
AUTO and MANU mode when in
the VIEW status.
MANU/AUTO
