GPT-9000/9000A Series User Manual
20

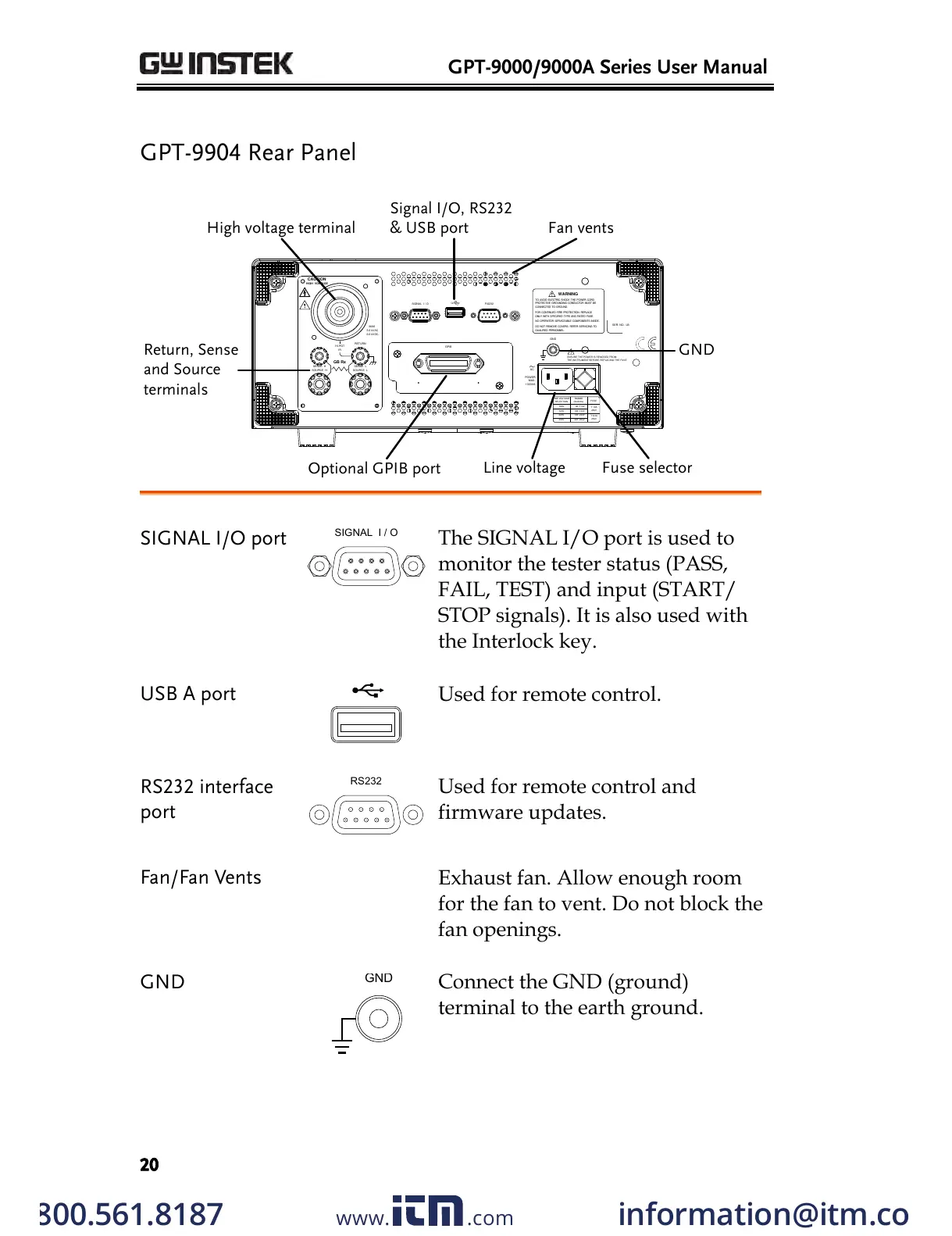

GPT-9904 Rear Panel
TO AVOID ELECTRIC SHOCK THE POWER CORD
PROTECTIVE GROUNDING CONDUCTOR MUST BE
ONLY WITH SPECIFIED TYPE AND RATED FUSE.
NO OPERATOR SERVICEABLE COMPONENTS INSIDE.
DO NOT REMOVE COVERS. REFER SERVICING TO
FOR CONTINUED FIRE PROTECTION. REPLACE
CONNECTED TO GROUND.
QUALIFIED PERSONNEL.
WARNING
AC
LINE VOLTAGE
100V
230V
220V
120V
SELECTION
207~250V
RANGE
90~110V
198~242V
108~132V
(50/60Hz)
250V
250V
T 10A
FUSE
T 6.3A
MAX.
1000VA
GND
ENSURE THE POWER IS REMOVED FROM
THE INSTRUMENT BEFORE REPLACING THE FUSE
POWER
SIGNAL I / O RS232
GPIB
GB Rx
SENSE H
SOURCE H
SENSE L
SOURCE L
RETURN
HI-POT
IR
HIGH VOLTAGE
CAUTION
MAX.
6.0 kVDC
5.0 kVAC
SER. NO. LB
High voltage terminal
Signal I/O, RS232
& USB port
Fan vents
Fuse selectorLine voltage
Optional GPIB port
GND
Return, Sense
and Source
terminals
SIGNAL I/O port
SIGNAL I / O
The SIGNAL I/O port is used to
monitor the tester status (PASS,
FAIL, TEST) and input (START/
STOP signals). It is also used with
the Interlock key.
USB A port
Used for remote control.
RS232 interface
port
RS232
Used for remote control and
firmware updates.
Fan/Fan Vents
Exhaust fan. Allow enough room
for the fan to vent. Do not block the
fan openings.
GND
GND
Connect the GND (ground)
terminal to the earth ground.
