GW Instek GPT-9000 series - Creating a MANU Test File Name

OPERATION
51

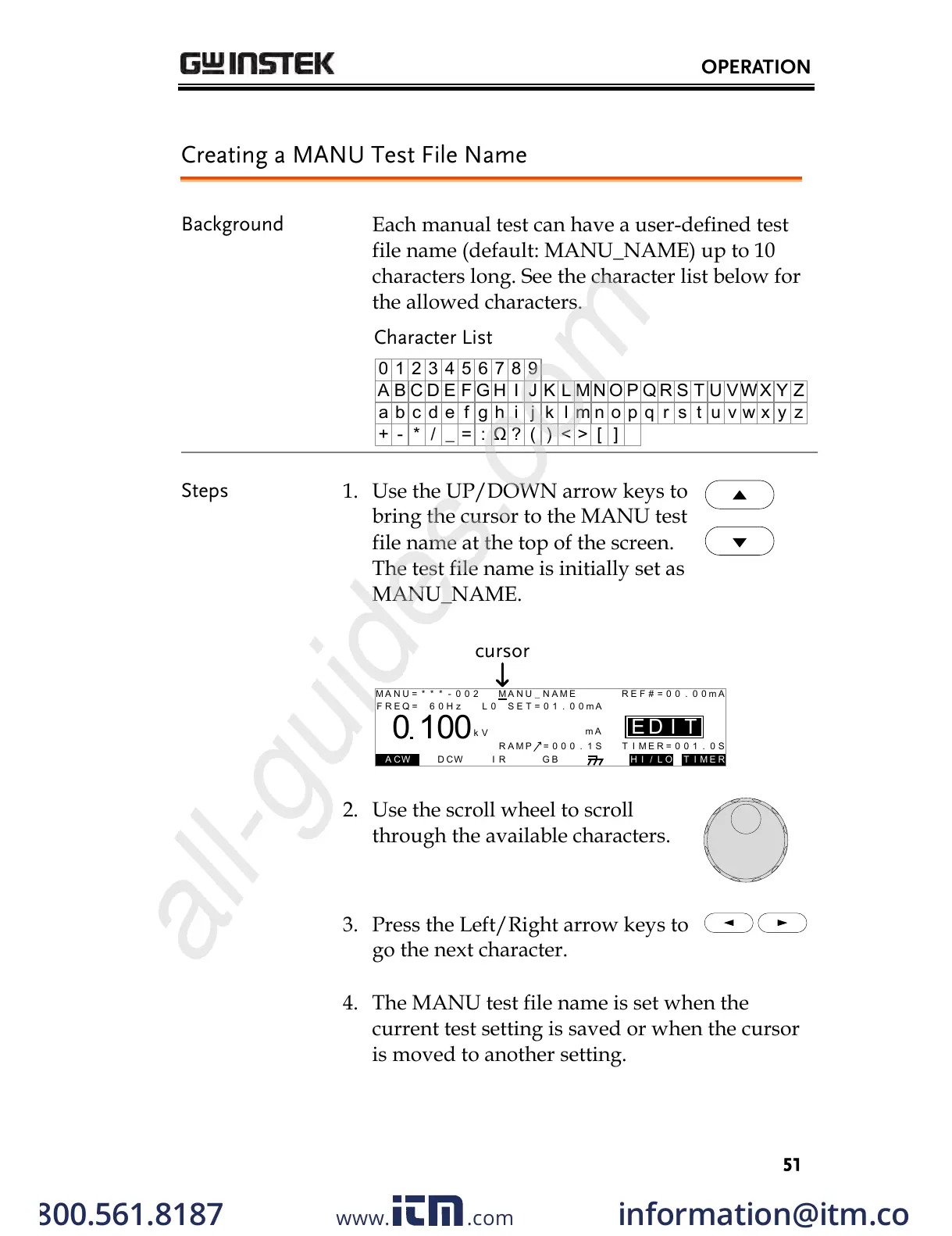

Creating a MANU Test File Name
Background
Each manual test can have a user-defined test
file name (default: MANU_NAME) up to 10
characters long. See the character list below for
the allowed characters.
Character List
0 1 2 3 4 5 6 7 8 9
WX Y ZM VO P RQ T USNLA B C D E F G H I J K
w x y zm vo p rq t usnla b c d e f g h i j k
+ - * / _ = : Ω ? ( ) < > [ ]
Steps
1. Use the UP/DOWN arrow keys to
bring the cursor to the MANU test
file name at the top of the screen.
The test file name is initially set as
MANU_NAME.
I R G B
m A
A CW D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m A0L ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
cursor
2. Use the scroll wheel to scroll
through the available characters.
3. Press the Left/Right arrow keys to
go the next character.
4. The MANU test file name is set when the
current test setting is saved or when the cursor
is moved to another setting.
