GW Instek GPT-9000 series - GPT-9904 Dimensions

APPENDIX
177

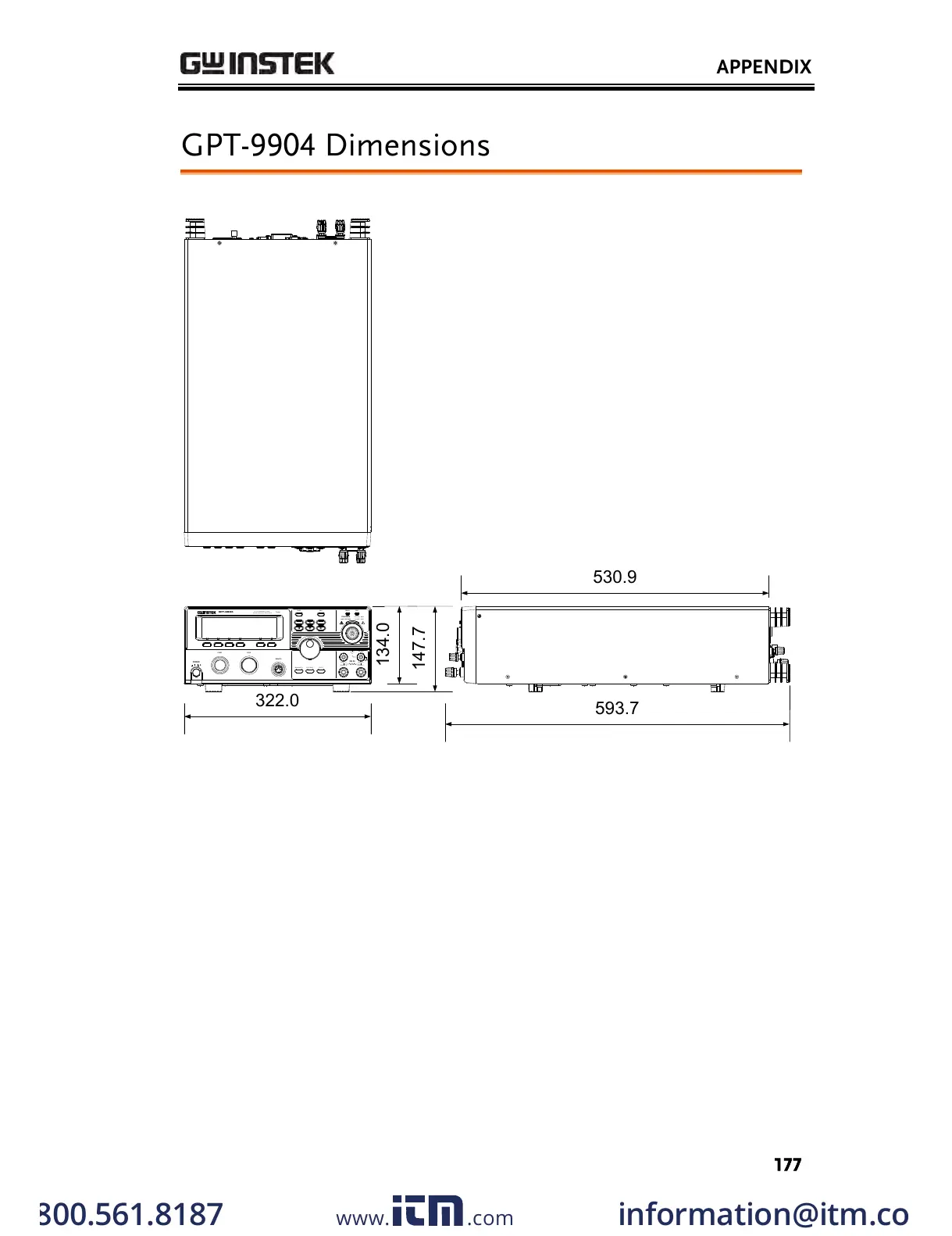

GPT-9904 Dimensions
322.0
134.0
147.7
530.9
593.7
Tester
AC / DC Withstanding Voltage /
Insulation Resistance / Ground Bond
GPT-9904
