GW Instek GPT-9000 series - GPT-9804 Dimensions

APPENDIX
175

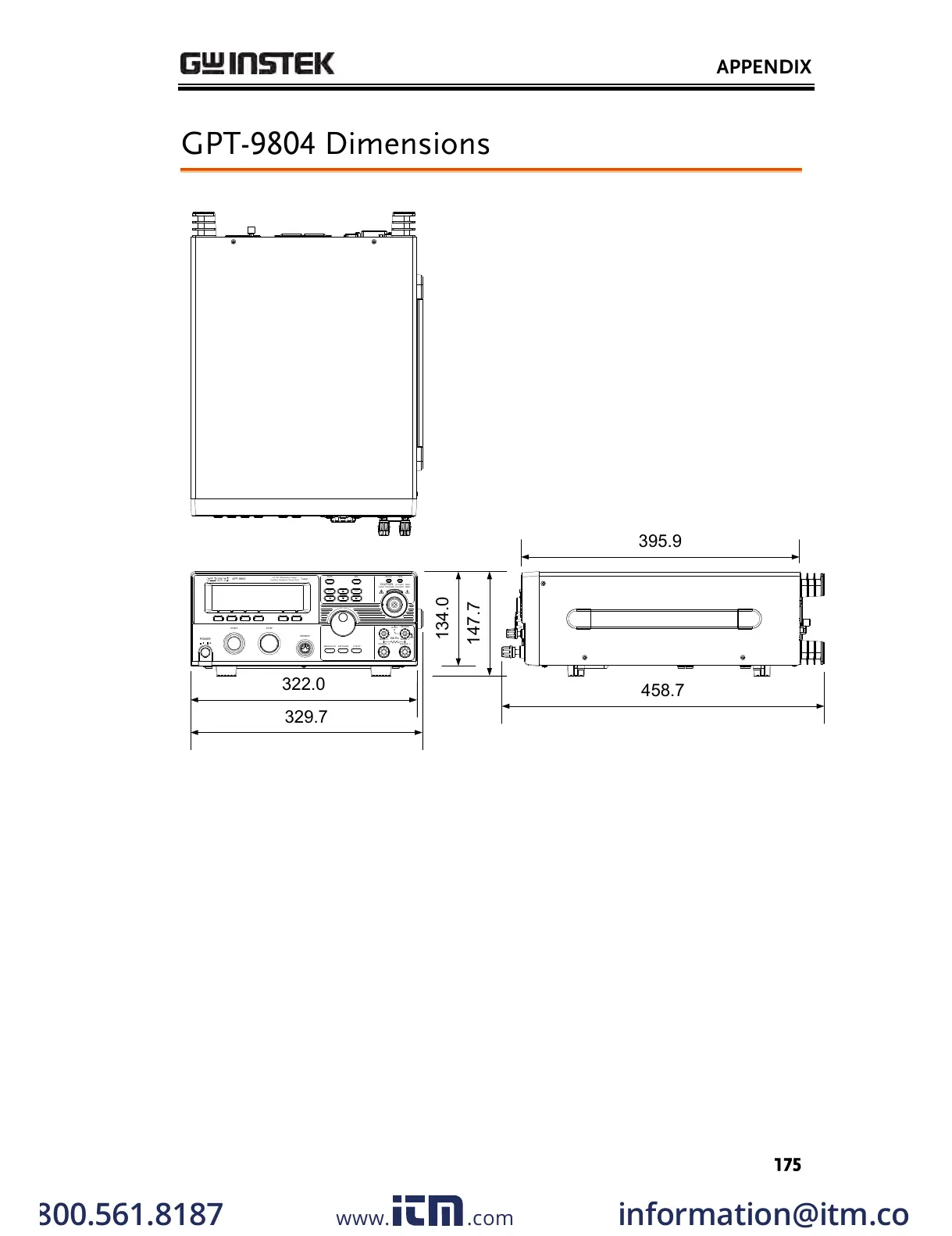

GPT-9804 Dimensions
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
PASS FAIL READY TEST
HIGH VOLTAGE
CAUTION
5.0 kVAC MAX.
6.0 kVDC MAX.
329.7
322.0
134.0
147.7
458.7
395.9
GPT-9804
Tester
SENSE H
SOURCE H
SENSE L
SOURCE L
RETURN
AC / DC Withstanding Voltage /
Insulation Resistance / Ground Bond
GB Rx
HI-POT
IR
