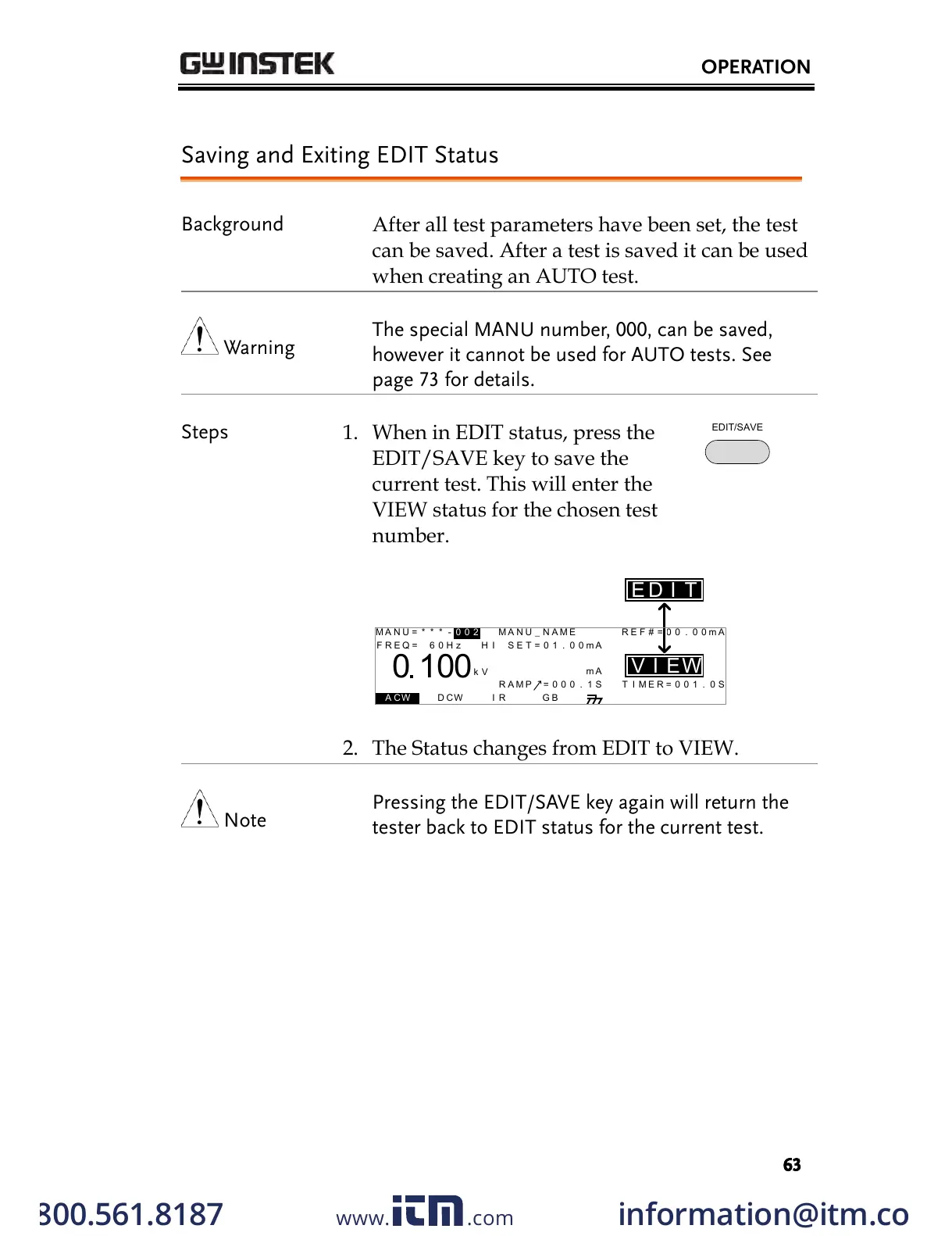

Saving and Exiting EDIT Status
Background
After all test parameters have been set, the test
can be saved. After a test is saved it can be used
when creating an AUTO test.
Warning
The special MANU number, 000, can be saved,
however it cannot be used for AUTO tests. See
page 73 for details.
Steps
1. When in EDIT status, press the
EDIT/SAVE key to save the
current test. This will enter the
VIEW status for the chosen test
number.
EDIT/SAVE
I R G B A CW D CW
E
F R E Q = 0 H z 6
0 100
k V
EIV
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
W
2M A N U = * * * - 0 0
IDE T
m A
2. The Status changes from EDIT to VIEW.
Note
Pressing the EDIT/SAVE key again will return the
tester back to EDIT status for the current test.
