GW Instek GPT-9000 series User Manual

GETTING STARTED
25

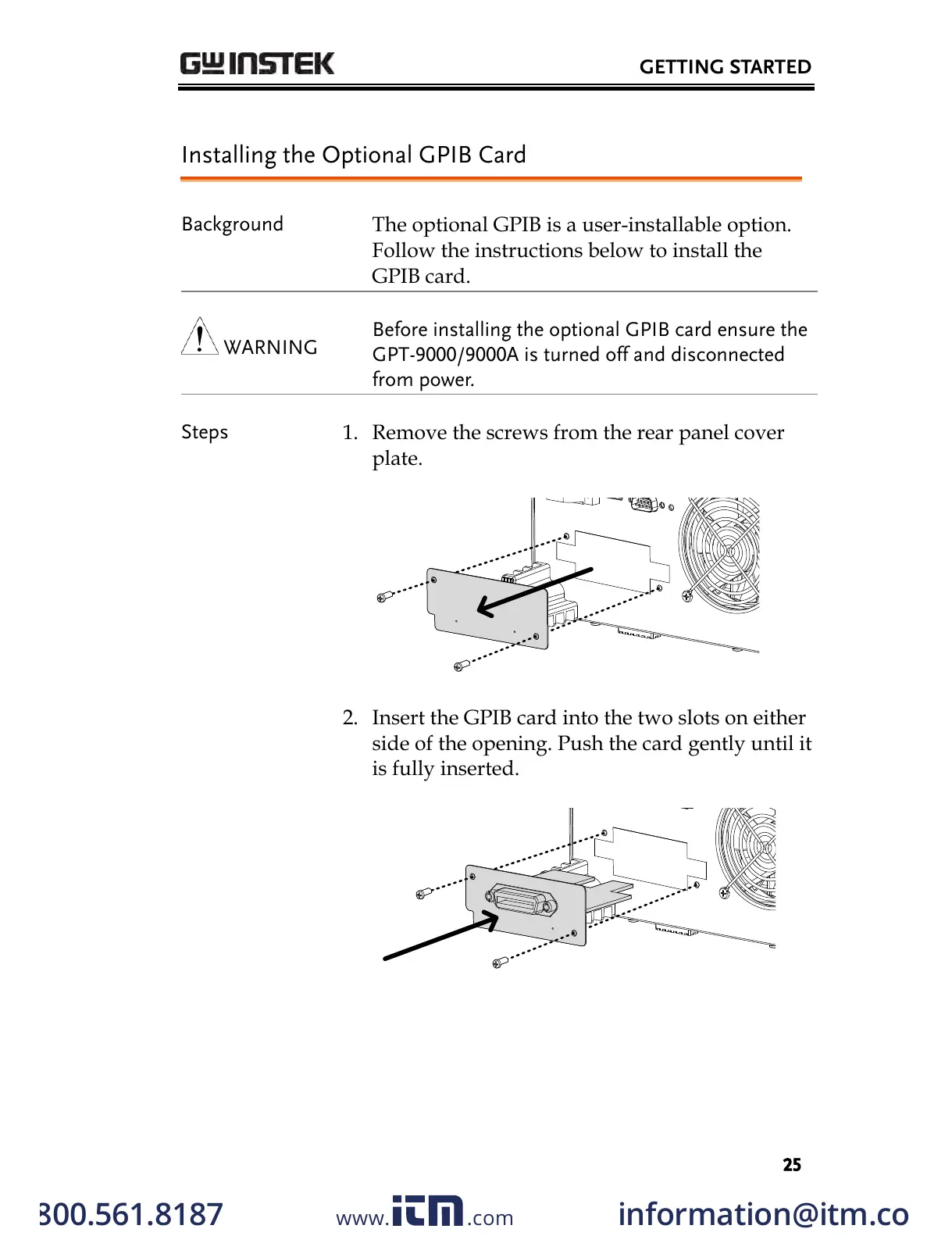

Installing the Optional GPIB Card
Background
The optional GPIB is a user-installable option.
Follow the instructions below to install the
GPIB card.
WARNING
Before installing the optional GPIB card ensure the
GPT-9000/9000A is turned off and disconnected
from power.
Steps
1. Remove the screws from the rear panel cover
plate.
2. Insert the GPIB card into the two slots on either
side of the opening. Push the card gently until it
is fully inserted.
