OPERATION

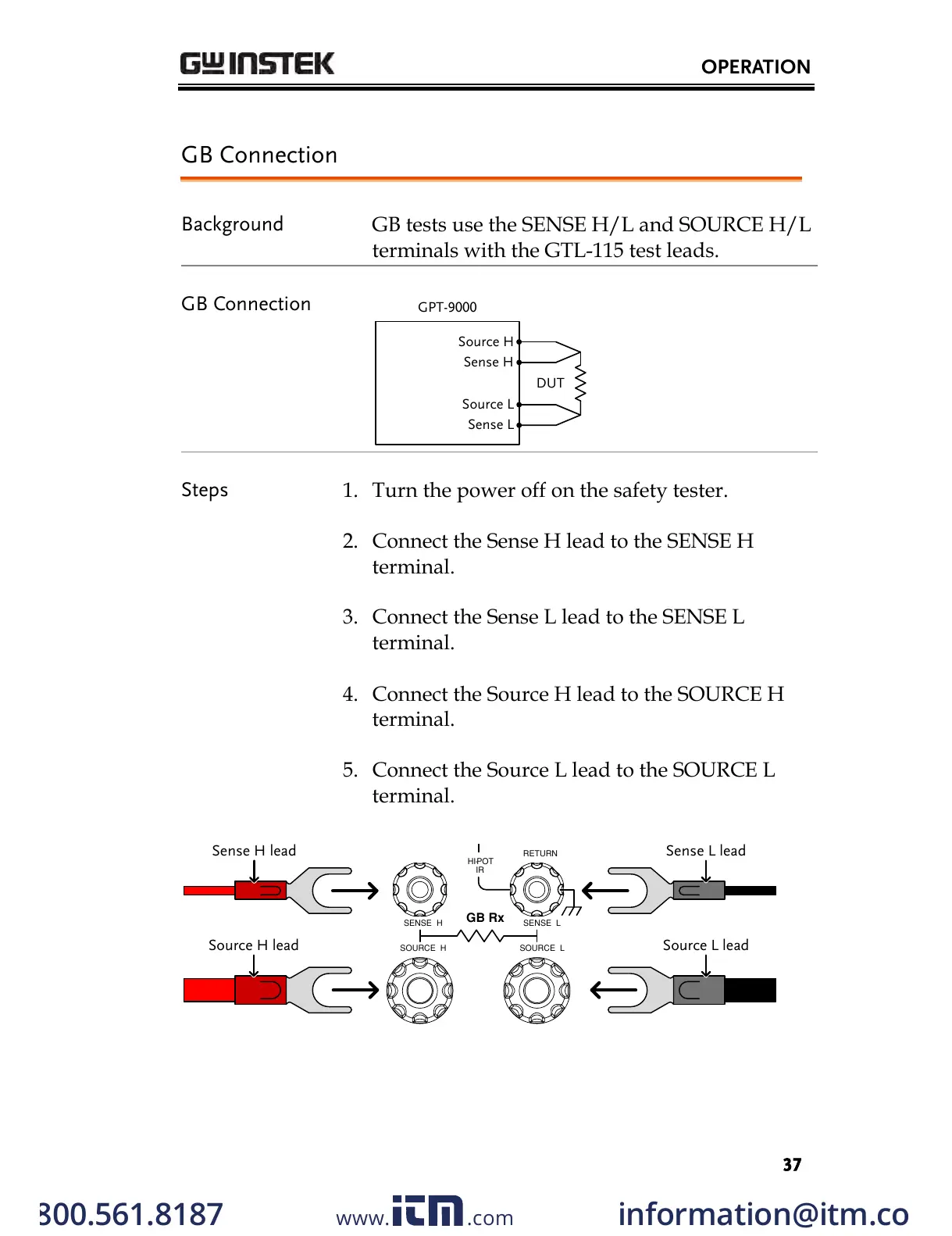

GB Connection

Background

GB tests use the SENSE H/L and SOURCE H/L

terminals with the GTL-115 test leads.

GB Connection

Source H

DUT

GPT-9000

Sense L

Sense H

Source L

Steps

1. Turn the power off on the safety tester.

2. Connect the Sense H lead to the SENSE H

terminal.

3. Connect the Sense L lead to the SENSE L

terminal.

4. Connect the Source H lead to the SOURCE H

terminal.

5. Connect the Source L lead to the SOURCE L

terminal.

SOURCE H

SENSE H

SOURCE L

SENSE L

GB Rx

RETURN

HI-POT

Sense H lead Sense L lead

Source L leadSource H lead
