GPT-9000/9000A Series User Manual
174

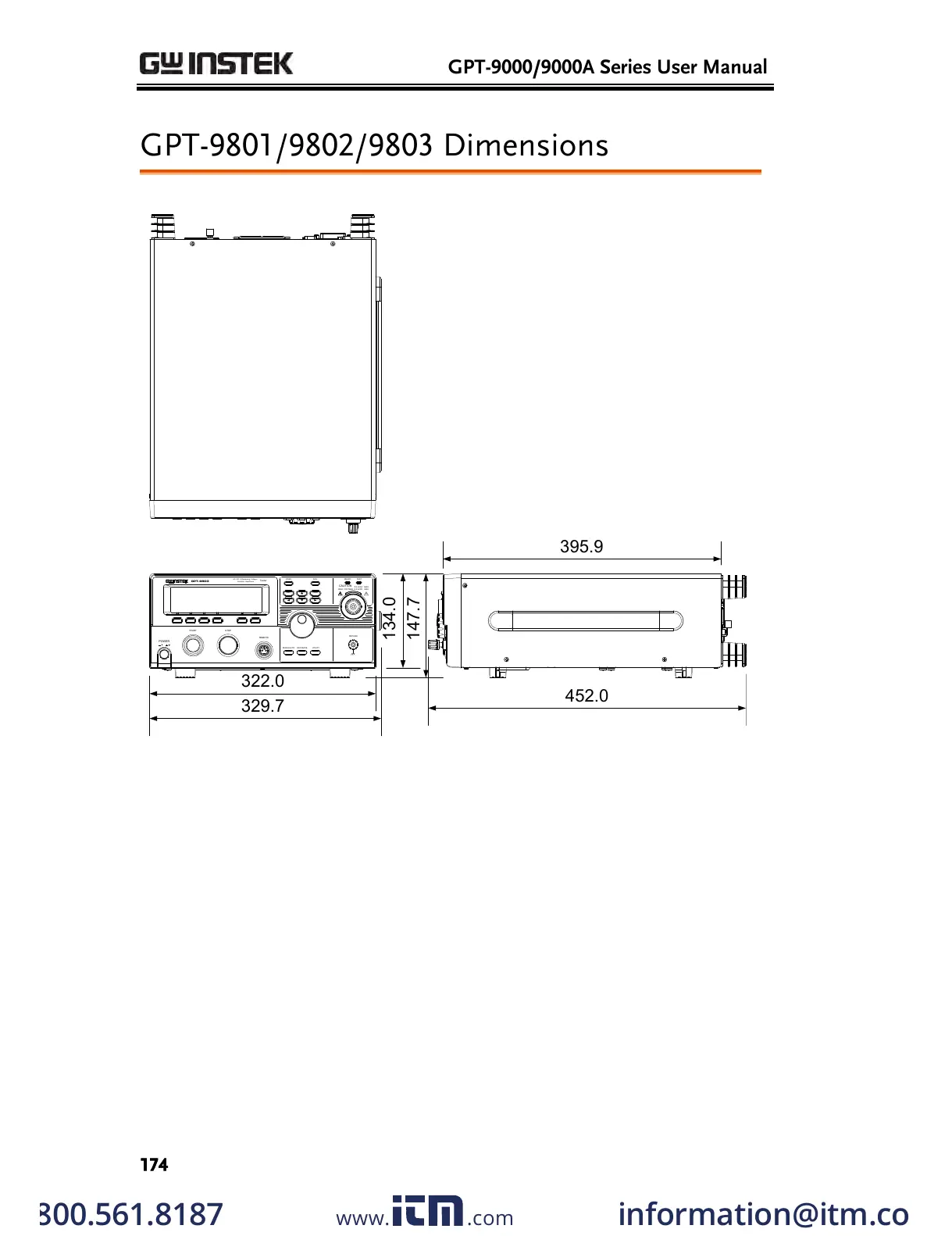

GPT-9801/9802/9803 Dimensions
134.0
POWER
START STOP
REMOTE
MANU/AUTO EDIT/SAVE UTILITY
ESC PAGE
PASS FAIL READY TEST
GPT-9803
Tester
HIGH VOLTAGE
CAUTION
5.0 kVAC MAX.
6.0 kVDC MAX.
AC / DC Withstanding Voltage /
Insulation Resistance
RETURN
329.7
322.0
147.7
452.0
395.9
