1.4 S3600-52P-SI
1.4.1 Front Panel
I. Schematic diagram
On the front panel, the S3600-52P-SI provides forty-eight 10Base-T/100Base-TX
auto-sensing Ethernet ports, four 1000Base-X SFP ports, and one Console port, as
shown in
Figure 1-5.

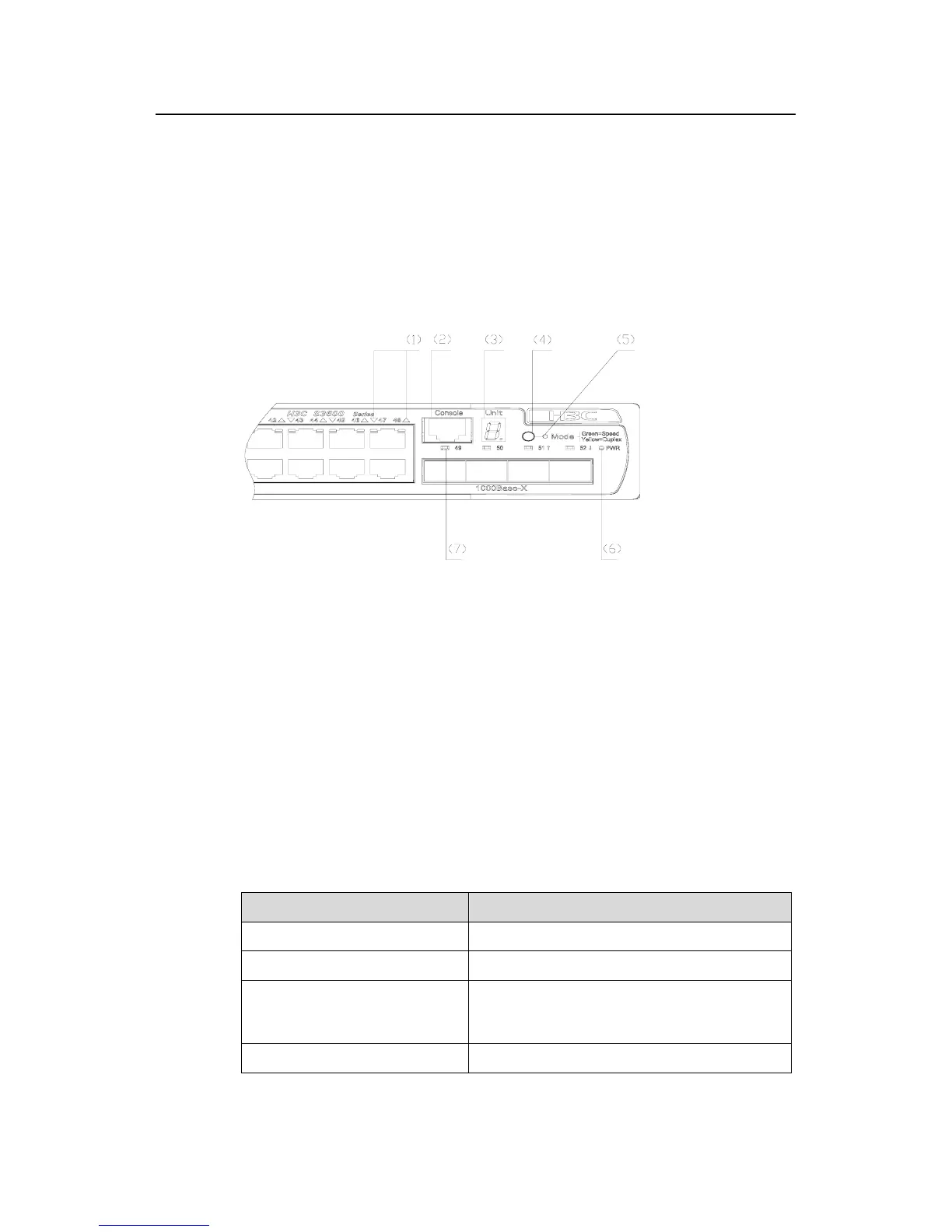

(1) 10Base-T/!00Base-TX auto-sensing Ethernet port status LEDs (2) Console port
(3) 7-segment digital LED (4) Mode button
(5) Mode LED (6) AC power LED
(7) 1000Base-X SFP port status LEDs
Figure 1-5 Front panel of the S3600-52P-SI
II. LEDs
On the front panel, the S3600-52P-SI provides one AC power LED, one mode LED,
one 7-segment digital LED, forty-eight 10Base-T/100Base-TX Ethernet port status
LEDs, and four 1000Base-X SFP port status LEDs. You can learn how the switch
operates by observing the LEDs listed in
Table 1-2.
III. Attributes of 10Base-T/100Base-TX Ethernet ports
Table 1-8 Attributes of the 10Base-T/100Base-TX Ethernet ports on the S3600-52P-SI
Attribute Description
Connector RJ-45
Number of ports 48
Rate
z 10 Mbps, half duplex/full duplex
z 100 Mbps, half-duplex/full duplex
z MDI/MDI-X auto-sensing
Standard IEEE 802.3u
