Installation Manual
H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-27
II. LEDs
On the front panel, the S3600-52P-EI provides one power LED, one DC power LED,
one mode LED, one 7-segment digital LED, forty-eight 10Base-T/100Base-TX
auto-sensing Ethernet port status LEDs, and four 1000Base-X SFP port status LEDs.
You can learn how the switch operates by observing the LEDs listed in
Table 1-9.
III. Attributes of the 10Base-T/100Base-TX auto-sensing Ethernet ports
See Table 1-8.
IV. Attributes of the 1000Base-X SFP ports
The S3600-52P-EI provides four 1000Base-X SFP ports numbered 49 to 52 on the
front panel.
SFP modules allow for great flexibility because they are hot swappable and user
configurable.
Table 1-5 the available SFP modules.
Note:
z The types of 1000Base-X SFP modules may be subject to changes without notice.
Consult H3C marketing personnel or technical support personnel to obtain the latest
information about SFP modules.
z For specifications of SFP modules, refer to H3C Low End Series Ethernet Switches
Pluggable Modules Manual.
V. Console port
The S3600-52P-EI provides one EIA/TIA-232 compliant Console port for local or
remote switch configuration. For the attributes, see
Table 1-4.
1.7.2 Rear Panel
I. Schematic diagram
The S3600-52P-EI provides an AC power socket, a DC power socket, and a grounding
screw on the rear panel, as shown in
Figure 1-12.
（1）（2）（3）（1）（2）（3）
(1) AC power socket (2) DC power socket (3) Grounding screw

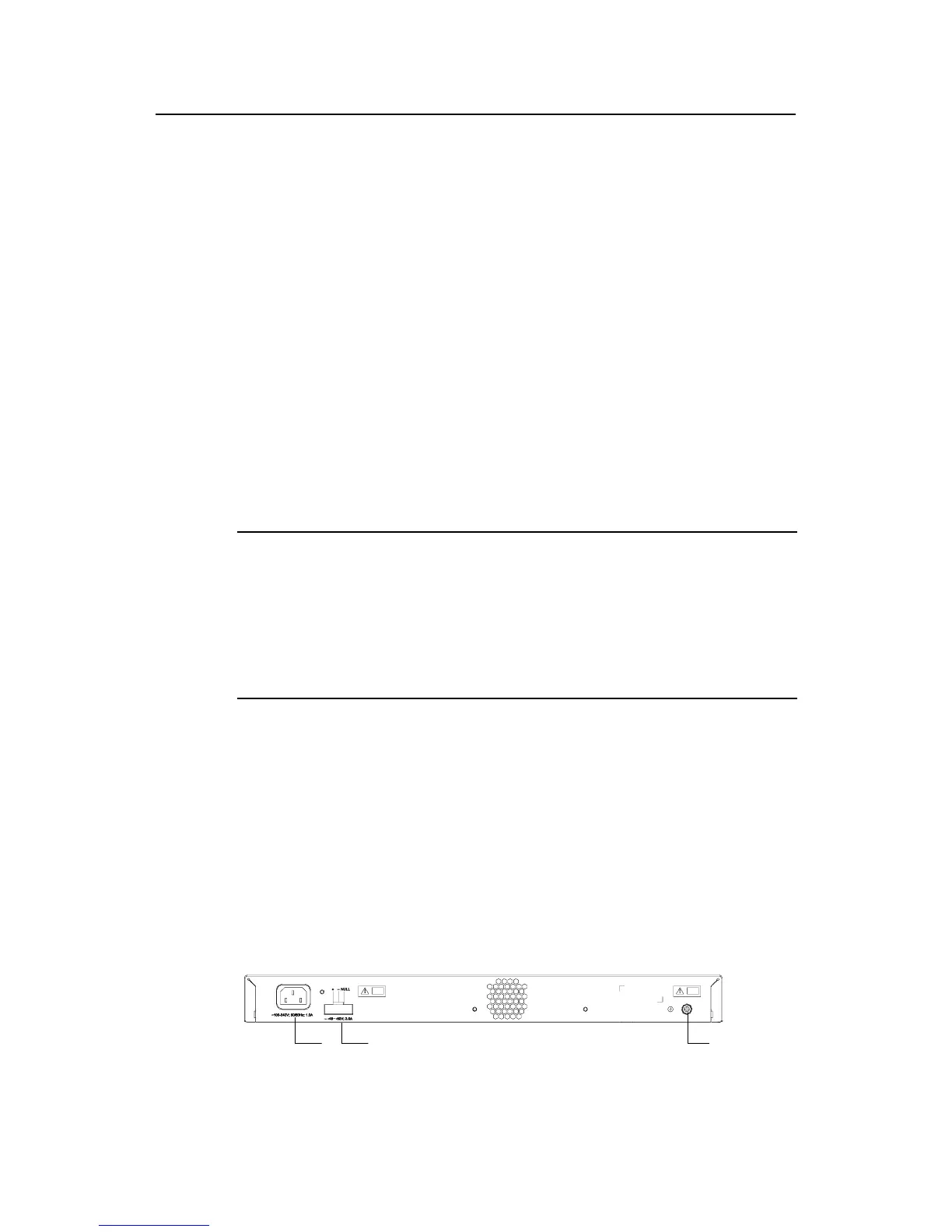

Figure 1-12 Rear panel of the S3600-52P-EI
