Installation Manual
H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-34
1.8.2 Rear Panel
I. Schematic diagram

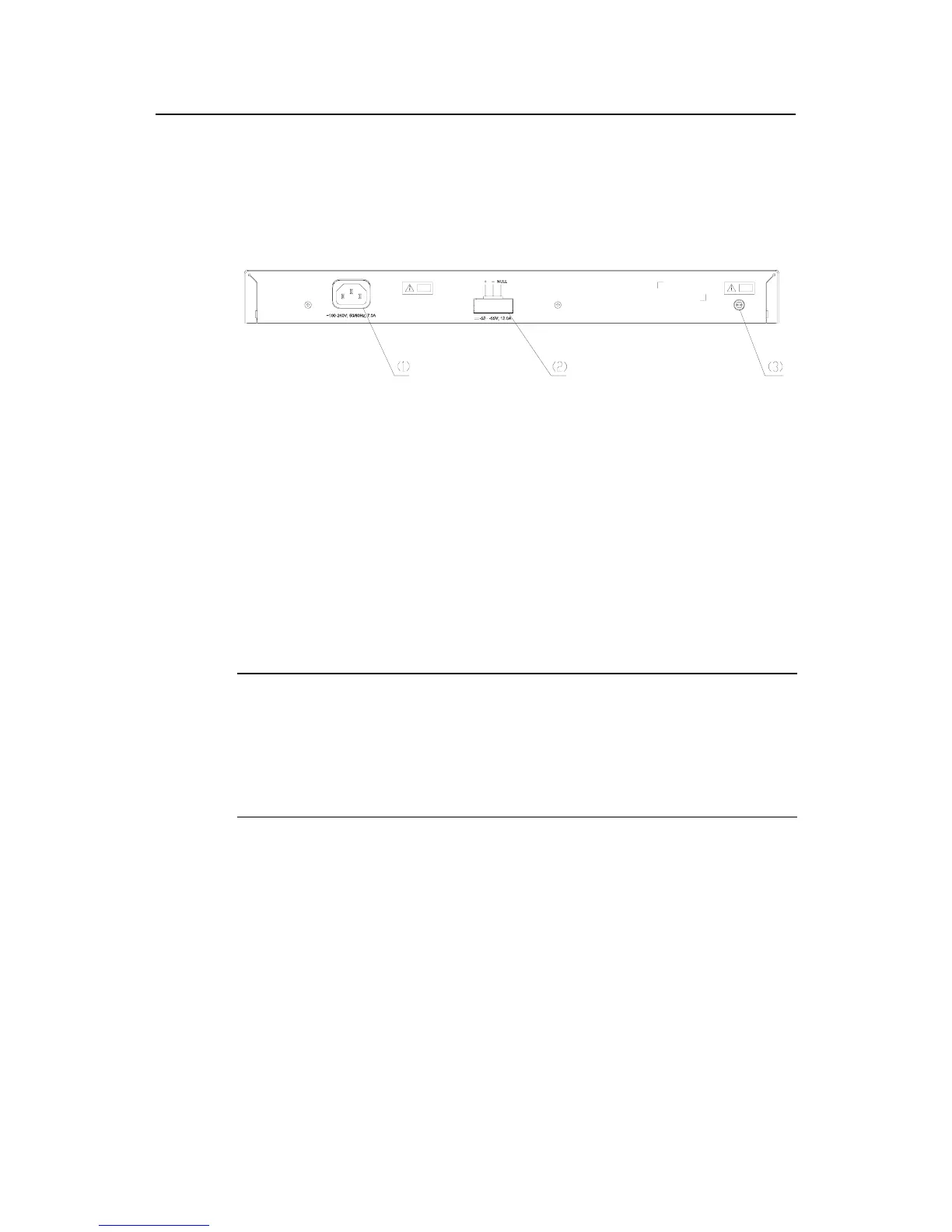

The S3600-28P-PWR-SI/S3600-28P-PWR-EI provides an AC power socket, a DC
power socket and a grounding screw on its rear panel, as shown in
Figure 1-14.
(1) AC power socket (2) DC power socket (3) Grounding screw
Figure 1-14 Rear panel of the S3600-28P-PWR-SI/S3600-28P-PWR-EI
II. Power system
z AC power
Rated voltage range: 100 VDC to 240 VAC, 50 Hz/60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
z DC ranges:
Voltage: –52 VDC to –55 VDC
Note:
Only the recommended PoE power supply can be used for S3600-28P-PWR-SI,
S3600-28P-PWR-EI, S3600-52P-PWR-SI, and S3600-52P-PWR-EI. The –48 VDC
from the equipment room cannot be used directly. Otherwise, the device may be
damaged.
1.9 S3600-52P-PWR-SI/S3600-52P-PWR-EI
1.9.1 Front Panel
I. Schematic diagram
The S3600-52P-PWR-SI/S3600-52P-PWR-EI provides forty-eight
10Base-T/100Base-TX auto-sensing Ethernet ports, four 1000Base-X SFP ports, and
one Console port, as shown in
Figure 1-15.
