H3C S3600 Series Installation Manual

Installation Manual
H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-12
V. Attributes of the 10/100/1000Base-T Ethernet ports
The S3600-28TP-SI can provide two 10/100/1000Base-T Ethernet ports numbered 27
and 28 on the front panel. For attributes of these two ports, see
Table 1-7.
Table 1-7 Attributes of the 10/100/1000Base-T Ethernet ports on the S3600-28TP-SI
Attribute Description
Connector RJ-45
Number of ports 2
Rate
z 10/100 Mbps, half duplex/full duplex
z 1000 Mbps, full duplex
z MDI/MDI-X auto-sensing
Standard
z IEEE 802.3u
z IEEE 802.3ab
Transmission distance
over the selected medium
100 m (328.08 ft) over the category-5 unshielded
twisted pair (UTP) cable
VI. Console port
The S3600-28TP-SI provides one EIA/TIA-232 compliant Console port for local or
remote switch configuration. For the attributes, see
Table 1-4.
1.3.2 Rear Panel

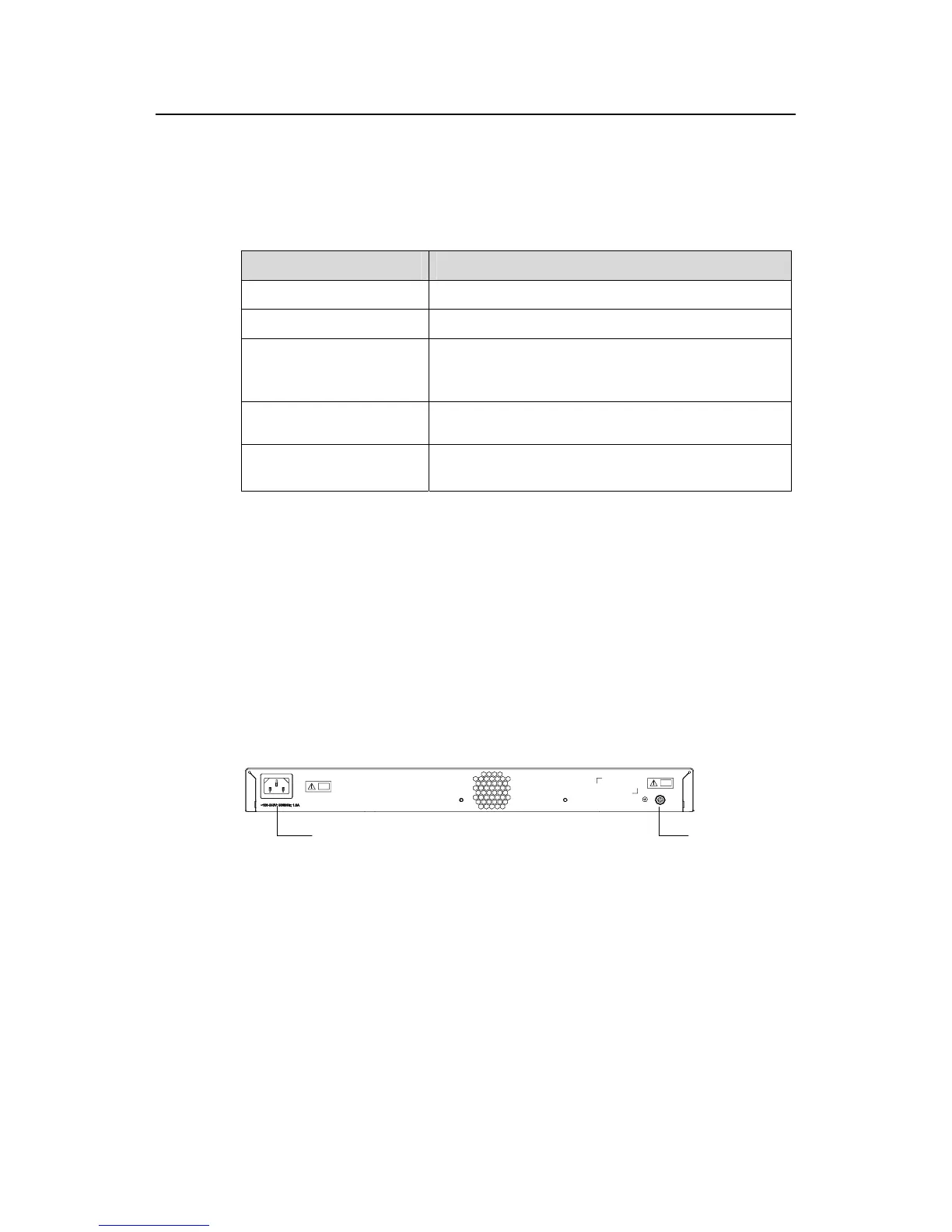

I. Schematic diagram
The S3600-28TP-SI provides an AC power socket and a grounding screw on the rear
panel, as shown in
Figure 1-4.
（1）（2）（1）（2）
(1) AC power socket (2) Grounding screw
Figure 1-4 Rear panel of the S3600-28TP-SI
II. Power system
The following gives the input voltage specifications for the S3600-28TP-SI:
Rated voltage range: 100 VAC to 240 VAC, 50/60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 to 63 Hz
