H3C S3600 Series Installation Manual

Installation Manual
H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-26
(1)
(2)
(3)
(1)
(2)
(3)
(1) AC power socket (2) DC power socket (3) Grounding screw

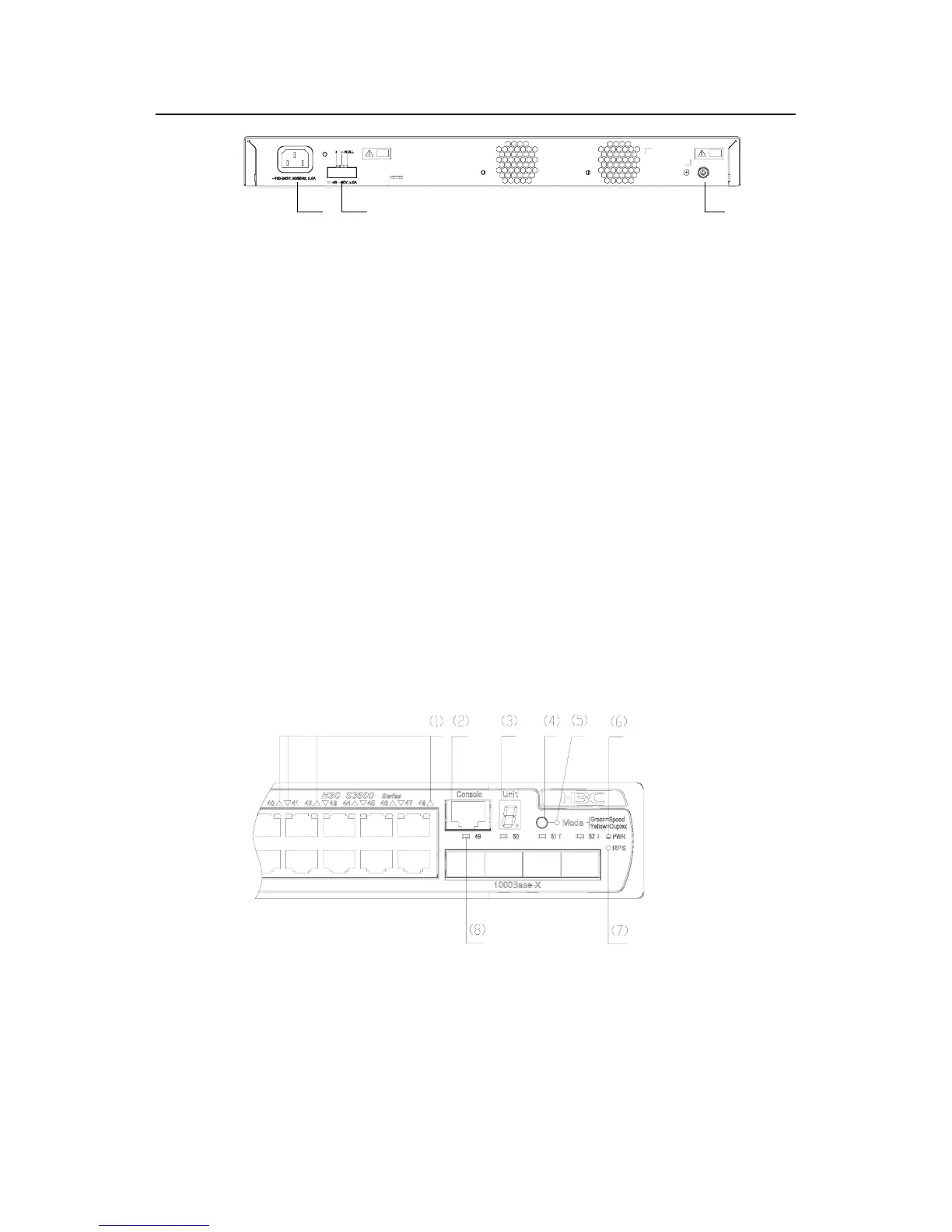

Figure 1-10 Rear panel of the S3600-28F-EI
II. Power system
z AC power
Rated voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
z DC power
Rated voltage range: –48 VDC to –60 VDC
Input voltage range: –36 VDC to –72 VDC
1.7 S3600-52P-EI
1.7.1 Front Panel
I. Schematic diagram
On the front panel, the S3600-52P-EI provides forty-eight 10Base-T/100Base-TX
auto-sensing Ethernet ports, four 1000Base-X SFP ports, and one Console port, as
shown in
Figure 1-11.
(1) 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs
(2) Console port
(3) 7-segment digital LED (4) Mode button
(5) Mode LED (6) AC Power LED
(7) DC power LED (8) 1000Base-X SFP port status LED
Figure 1-11 Front panel of the S3600-52P-EI
