H3C S3600 Series Installation Manual

Installation Manual
H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-8
（1）（2）（1）（2）
(1) AC power socket (2) Grounding screw

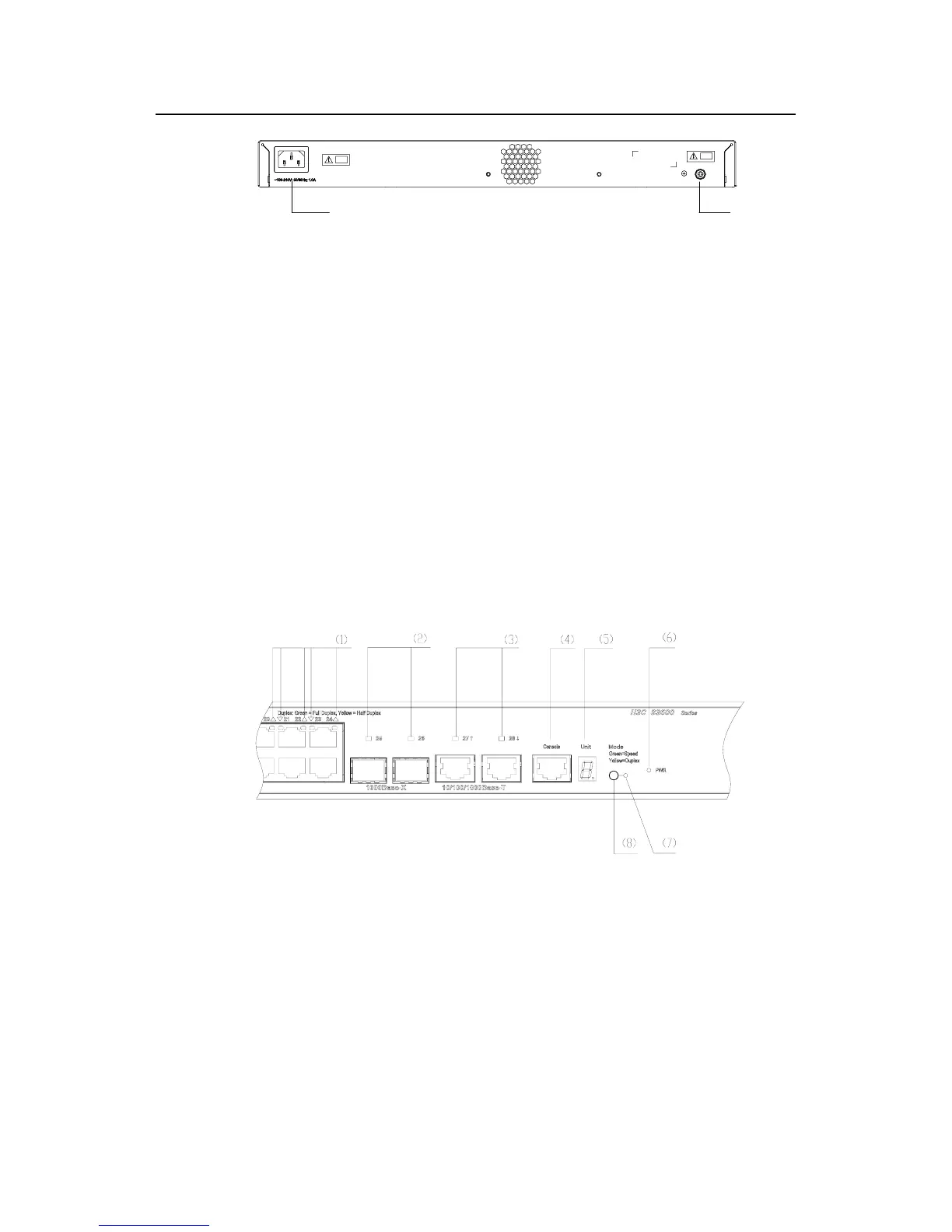

Figure 1-2 Rear panel of the S3600-28P-SI
II. Power system
The following gives the input voltage specifications for the S3600-28P-SI:
Rated voltage range: 100 VAC to 240 VAC, 50/60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 to 63 Hz
1.3 S3600-28TP-SI
1.3.1 Front Panel
I. Schematic diagram
The S3600-28TP-SI provides twenty-four 10Base-T/100Base-TX auto-sensing
Ethernet ports, two 1000Base-X SFP ports, two 10/100/1000Base-T auto-sensing
Ethernet ports, and one Console port on the front panel, as shown in
Figure 1-3.
(1) 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs
(2) 1000Base-X SFP port status LEDs
(3) 10/100/1000Base-T auto-sensing Ethernet port status LEDs
(4) Console port
(5) 7-segment digital LED (6) AC power LED
(7) Mode LED (8) Mode button
Figure 1-3 Front panel of the S3600-28TP-SI
II. LEDs
The S3600-28TP-SI provides one power LED, one DC power LED, one mode LED,
one 7-segment digital LED, twenty-four 10Base-T/100Base-TX Ethernet port status
