H3C S3600 Series Installation Manual

Installation Manual
H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-19
 Note:
z The types of 1000Base-X SFP modules may be subject to changes without notice.
Consult H3C marketing personnel or technical support personnel to obtain the latest
information about SFP modules.
z For specifications of SFP modules, refer to H3C Low End Series Ethernet Switches
Pluggable Modules Manual.
1.5.2 Rear Panel
I. Schematic diagram

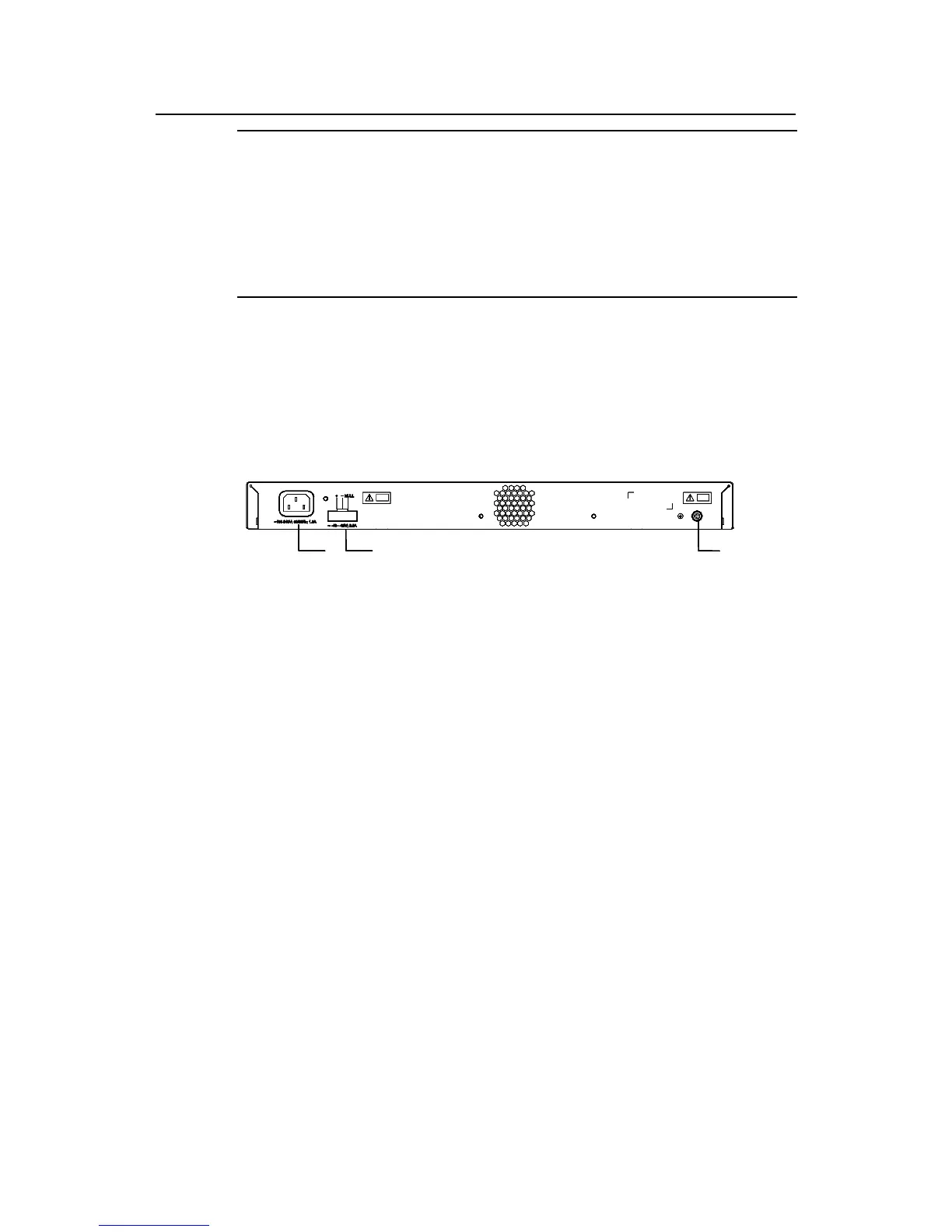

The S3600-28P-EI provides an AC power socket, a DC power socket and a grounding
screw on the rear panel, as shown in
Figure 1-8.
(1) (2)
(3)
(1) (2)
(3)
(1) AC power socket (2) DC power socket (3) Grounding screw
Figure 1-8 Rear panel of the S3600-28P-EI
II. Power system
z AC power
Rated voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
z DC power
Rated voltage range: –48 VDC to –60 VDC
Input voltage range: –36 VDC to –72 VDC
1.6 S3600-28F-EI
1.6.1 Front Panel
I. Schematic diagram
On the front panel, the S3600-28F-EI provides twenty-four 100Base-X SFP ports, two
1000Base-X SFP ports, two 10/100/1000Base-T auto-sensing Ethernet ports, and one
Console port, as shown in
Figure 1-9.
