H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-28
II. Power system
z AC power
Rated voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
z DC power
Rated voltage range: –48 VDC to –60 VDC
Input voltage range: –36 VDC to –72 VDC
1.8 S3600-28P-PWR-SI/S3600-28P-PWR-EI
1.8.1 Front Panel
I. Schematic diagram
On the front panel, the S3600-28P-PWR-SI/S3600-28P-PWR-EI provides twenty-four
10Base-T/100Base-TX auto-sensing Ethernet ports, four 1000Base-X SFP ports, and
one Console port, as shown in
Figure 1-13.
(1) 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs
(2) 1000Base-X SFP port status LEDs
(3) Console port (4) 7-segment digital LED
(5) DC power LED (6) AC power LED
(7) Mode LED (8) Mode button

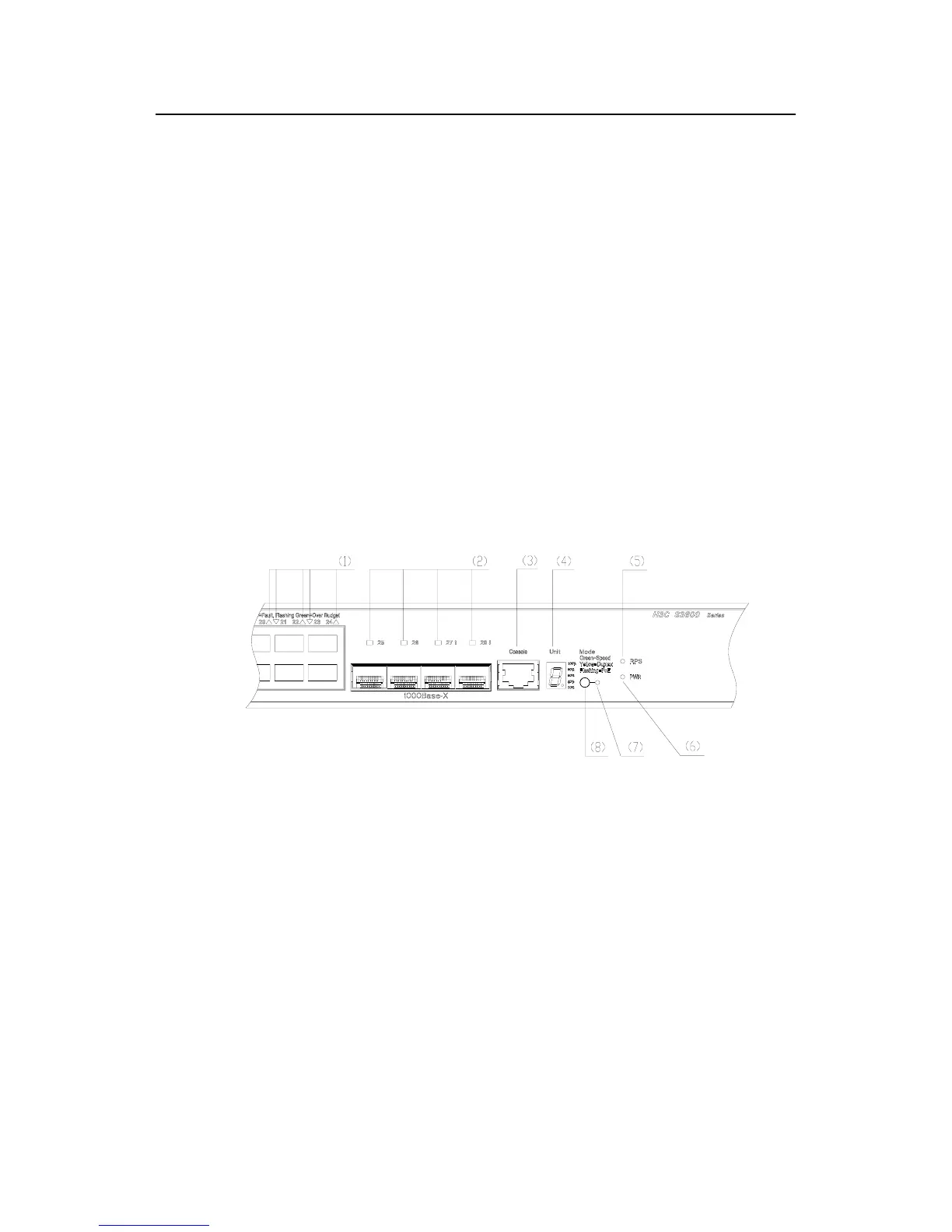

Figure 1-13 Front panel of the S3600-28P-PWR-SI/S3600-28P-PWR-EI
II. LEDs
On the front panel, the S3600-28P-PWR-SI/S3600-28P-PWR-EI provides one AC
power LED, one DC power LED, one mode LED, one 7-segment digital LED,
twenty-four 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs, and four
1000Base-X SFP port status LEDs. You can learn how the switch operates by
observing the LEDs listed in
Table 1-12:
