H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-15
II. Power system
The following gives the input voltage specifications for the S3600-52P-SI:
Rated voltage range: 100 VAC to 240 VAC, 50/60 Hz
Input voltage range: 90 VAC to 264 VAC, 47 to 63 Hz
1.5 S3600-28P-EI
1.5.1 Front Panel
I. Schematic diagram
On the front panel, the S3600-28P-EI provides twenty-four 10Base-T/100Base-TX
auto-sensing Ethernet ports, four 1000Base-X SFP ports, and one Console port, as
shown in
Figure 1-7.

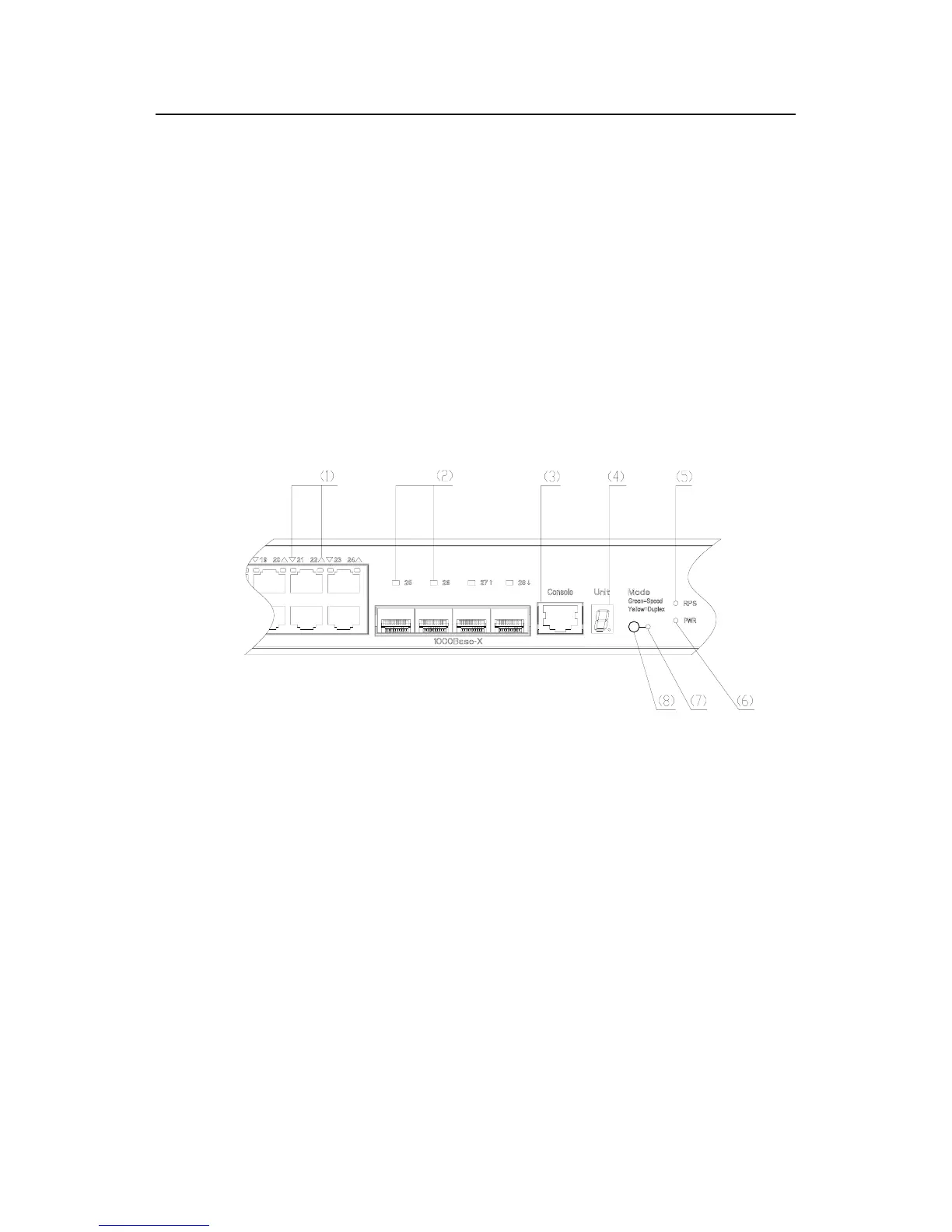

(1) 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs
(2) 1000Base-X SFP port status LEDs (3) Console port
(4) 7-segment digital LED (5) DC power LED
(6) AC power LED (7) Mode LED
(8) Mode button
Figure 1-7 Front panel of the S3600-28P-EI
II. LEDs
On the front panel, the S3600-28P-EI provides one AC power LED, one DC power LED,
one mode LED, one 7-segment digital LED, twenty-four 10Base-X/100Base-TX
auto-sensing Ethernet port status LEDs, and four 1000Base-X SFP port status LEDs.
You can learn how the switch operates by observing the LEDs listed in
Table 1-9.
