H3C S3600 Series Ethernet Switches Chapter 1 Product Overview
1-3
1.2 S3600-28P-SI
1.2.1 Front Panel
I. Schematic diagram
The S3600-28P-SI provides twenty-four 10Base-T/100Base-TX auto-sensing Ethernet
ports, four 1000Base-X SFP ports, and one Console port on the front panel, as shown
in
Figure 1-1.
(1) 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs
(2) 1000Base-X SFP port status LEDs (3) AC power LED
(4) Mode LED (5) Mode button
(6) 7-segment digital LED (7) Console port

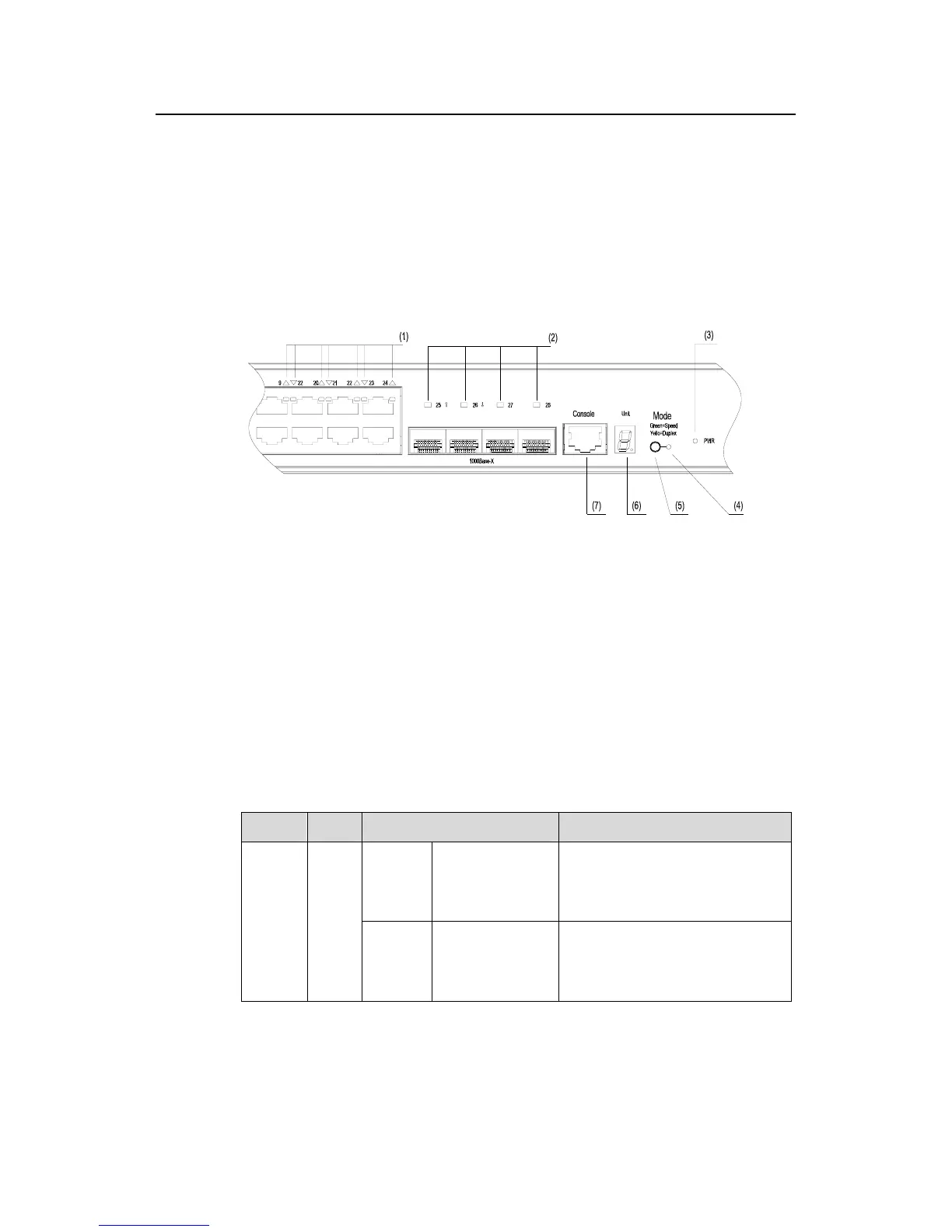

Figure 1-1 Front panel of the S3600-28P-SI
II. LEDs
The S3600-28P-SI provides one AC power LED, one mode LED, one 7-segment digital
LED, twenty-four 10Base-T/100Base-TX auto-sensing Ethernet port status LEDs, and
four 1000Base-X SFP port status LEDs on the front panel. You can learn how the
switch operates by observing the LEDs listed in
Table 1-2.
Table 1-2 LEDs on the front panel of the S3600-28P-SI
LED Mark Status Indication
Speed Solid green
Rate information of
10Base-T/100Base-TX
auto-sensing Ethernet ports, and
1000Base-X SFP ports
Mode
LED
Mode
Duplex Solid yellow
Duplex information of
10Base-T/100Base-TX
auto-sensing Ethernet ports, and
1000Base-X SFP ports
